PoE tester for midspan/endspan identification

Telephone, STP/UTP (CAT5, CAT6) network cable
Tracing cable types
9V battery (not included)
The power source is an important element that is necessary for the quality operation of the device
Availability

Product ID 82540
Brand Ermenrich
Warranty 5 years
EAN 5905555016849
Package size (LxWxH) 14x11x4 cm
Shipping Weight 0.21 kg
Description

The Ermenrich NetGeeks NP10 is a cable and PoE tester designed for testing network and telephone cables for Ethernet power, open circuits, short circuits as well as for identifying the location of the power supply equipment: either midspan (in the middle of the cable line) or endspan (at the end of the cable line). The tester is easy to operate, it has intuitive controls and can, therefore, be used by professionals and beginners alike.

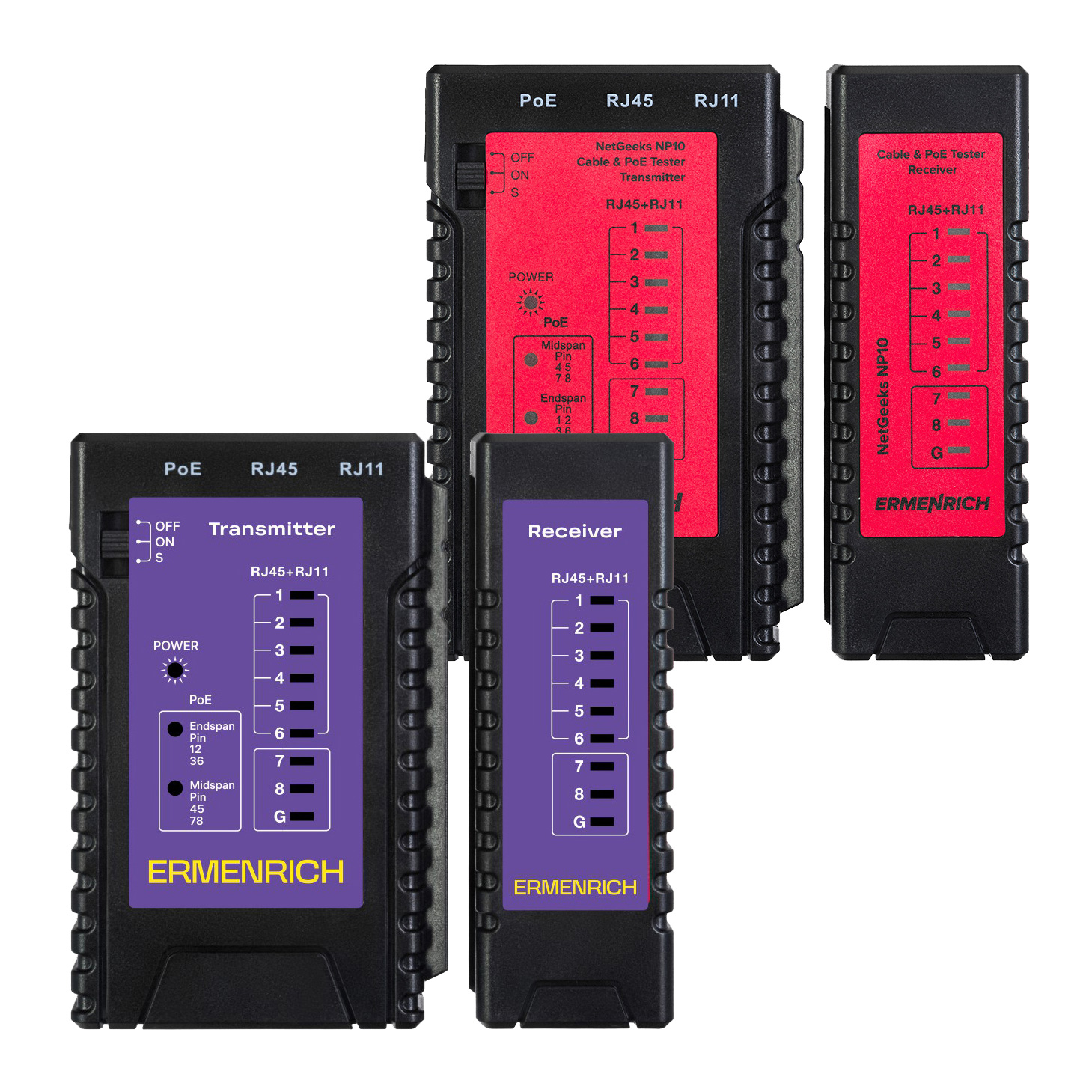

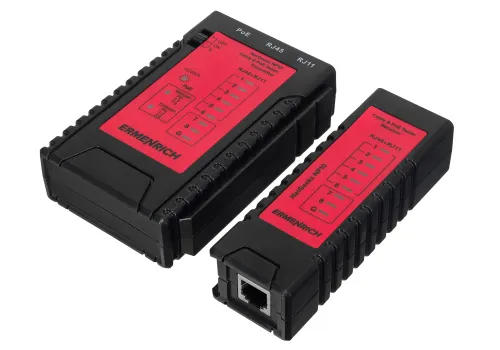

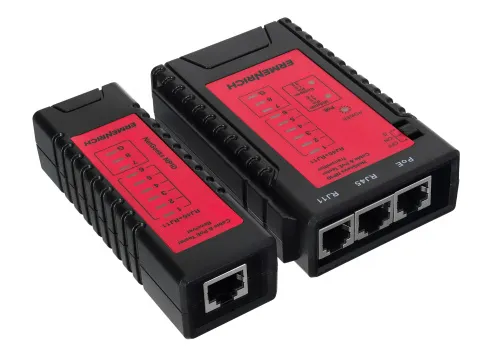

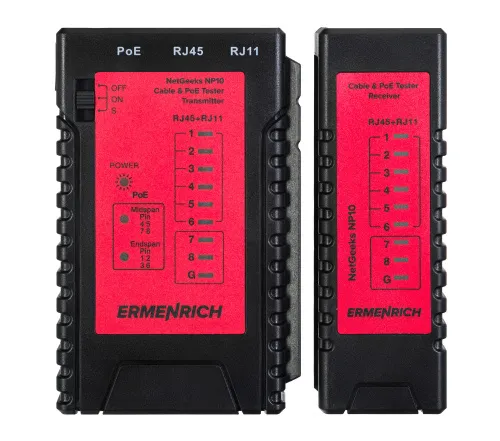

The device consists of a transmitter and a receiver. The first one has three ports: RJ45, RJ11, PoE. The second one has a single port for RJ45 and RJ11. Only the transmitter requires one 9V battery as a power supply.

Key features:

  • Testing network and telephone cables for PoE support
  • Cable testing for open and short circuits
  • Midspan/endspan identification
  • Powered by a single 9V battery

The kit includes:

  • Transmitter
  • Receiver
  • User manual and warranty card
Specifications
Product ID 82540
Brand Ermenrich
Warranty 5 years
EAN 5905555016849
Package size (LxWxH) 14x11x4 cm
Shipping Weight 0.21 kg
Transmitter
Ports RJ45, RJ11, PoE
Tracing cable types telephone, STP/UTP (CAT5, CAT6) network cable
Cable testing +
PoE test
PoE test
Operating voltage range (DC), V 5 — 60
Key features
Power supply 9V battery (not included)
Operating temperature range,°C –10… +40 (14… 104)
Operating humidity range, % 20…70
Receiver / Remote unit
Ports RJ45, RJ11
