Ermenrich Zing ST40 Socket Tester

Ermenrich Zing ST40 Socket Tester

image Ermenrich Zing ST40 Socket Tester
image Ermenrich Zing ST40 Socket Tester
image Ermenrich Zing ST40 Socket Tester
image Ermenrich Zing ST40 Socket Tester
see all
image Ermenrich Zing ST40 Socket Tester
The price is valid only for the online store and may differ from the prices in retail stores.

A device for detecting malfunctions in installed sockets. With an RCD test

48 — 250
Current voltage measurement range: the range of voltage values that allows certain errors of the device
CAT II 300V
Equipment overvoltage protection classification
Not required
The power source is an important element that is necessary for the quality operation of the device
Availability
Product ID 82963
Brand Ermenrich
Warranty 5 years
EAN 5905555017426
Package size (LxWxH) 7x7x8 cm
Shipping Weight 0.095 kg
description
specifications
downloads
video
Description

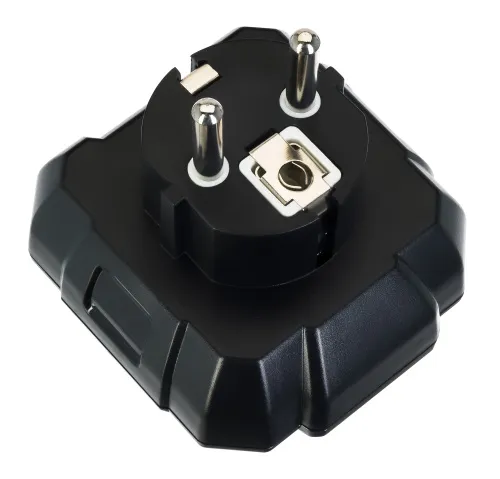

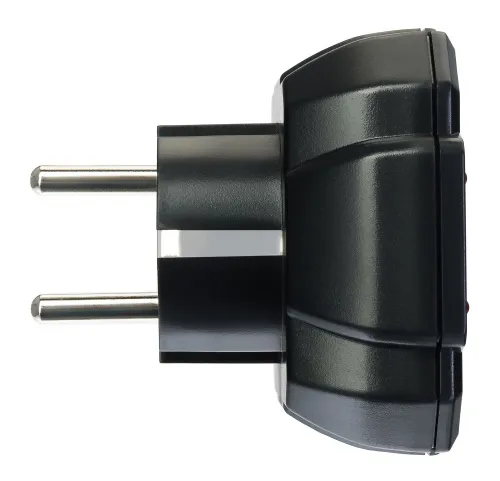

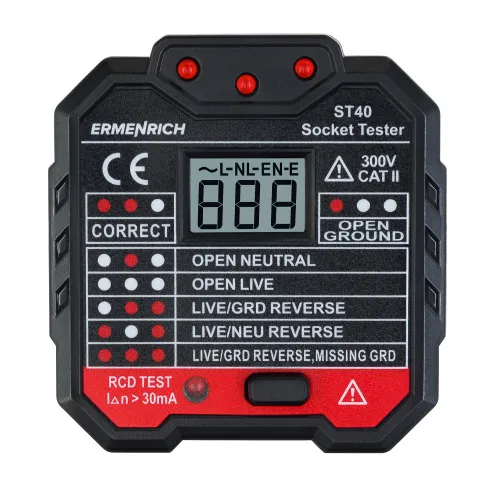

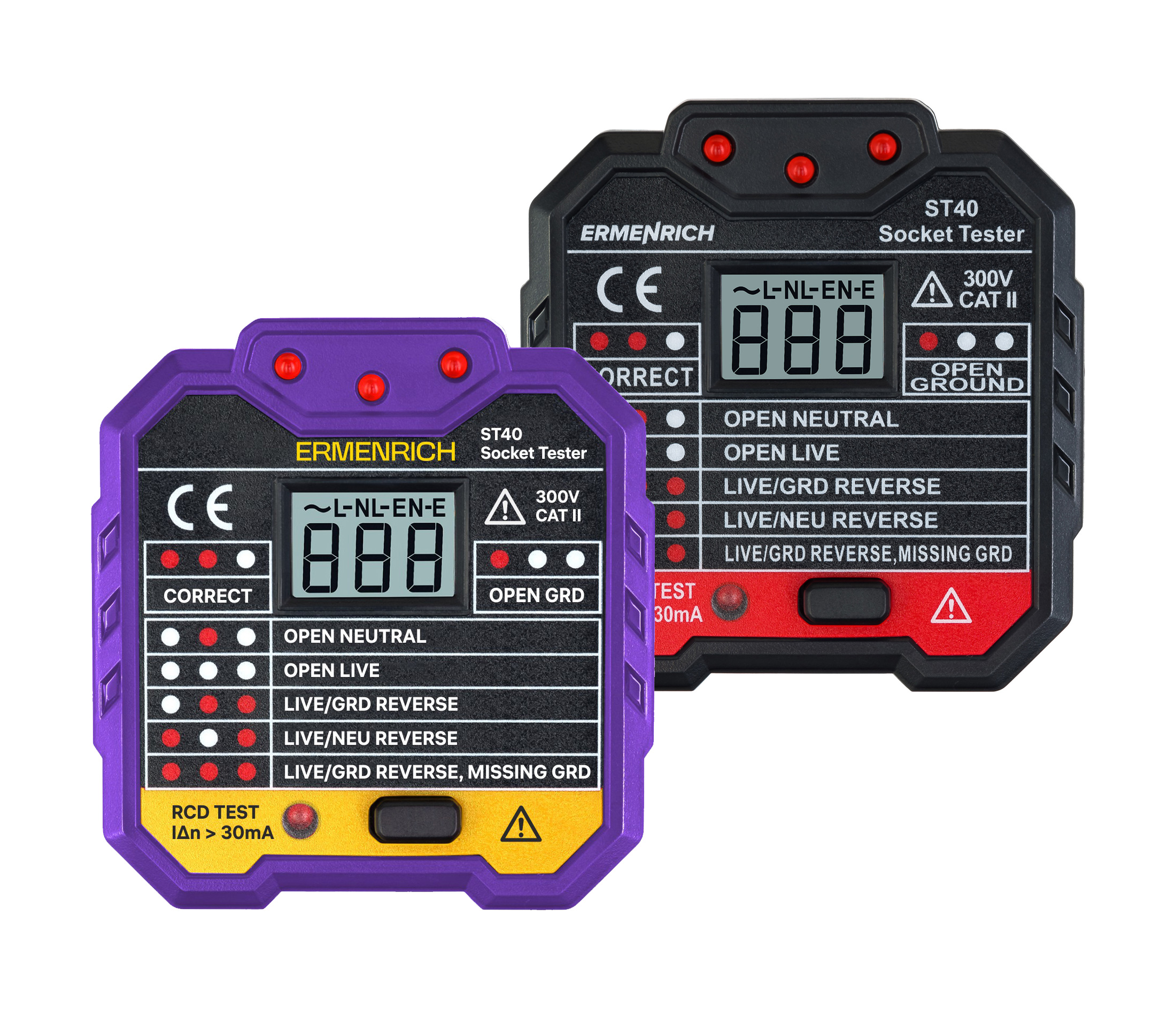

The Ermenrich Zing ST40 Socket Tester with a Euro plug and a dedicated button for testing the performance of the RCD (residual current device). The tester is inserted into a socket and provides light indication with three LEDs. The light codes are directly on the body of the device, and there are seven in total: Everything is in or-der; no ground; no neutral; missing phase; phase/ground reversed; phase/neutral reversed; phase/ground are reversed and ground is missing.

The tester is perfect for checking electrical installation work performed on a construction site and assessing the condition of outlets at home. The device has a built-in backlit screen that displays the measured voltage. Does not require additional power.

Key features:

  • Voltage measurement, the result is displayed on the built-in screen
  • Testing the correct connection of sockets – 7 modes
  • Dedicated RCD test button
Specifications
Product ID 82963
Brand Ermenrich
Warranty 5 years
EAN 5905555017426
Package size (LxWxH) 7x7x8 cm
Shipping Weight 0.095 kg
Frequency range, Hz 45–65
Operating voltage range (AC), V 48 — 250
Overvoltage category CAT II 300V
Display yes
Display backlight ✓
RCD test (RCD) breaking current >30mA
Safety standards EN61010-1-2-030, EN61326-1
Power supply not required
References
and downloads
Ermenrich Measuring Tools (pdf)
(PDF, 1.07 Mb)
User manual: Ermenrich Zing ST40 socket tester (pdf)
(PDF, 848.37 Kb)
High-resolution images (zip)
(ZIP, 17.92 Mb)
