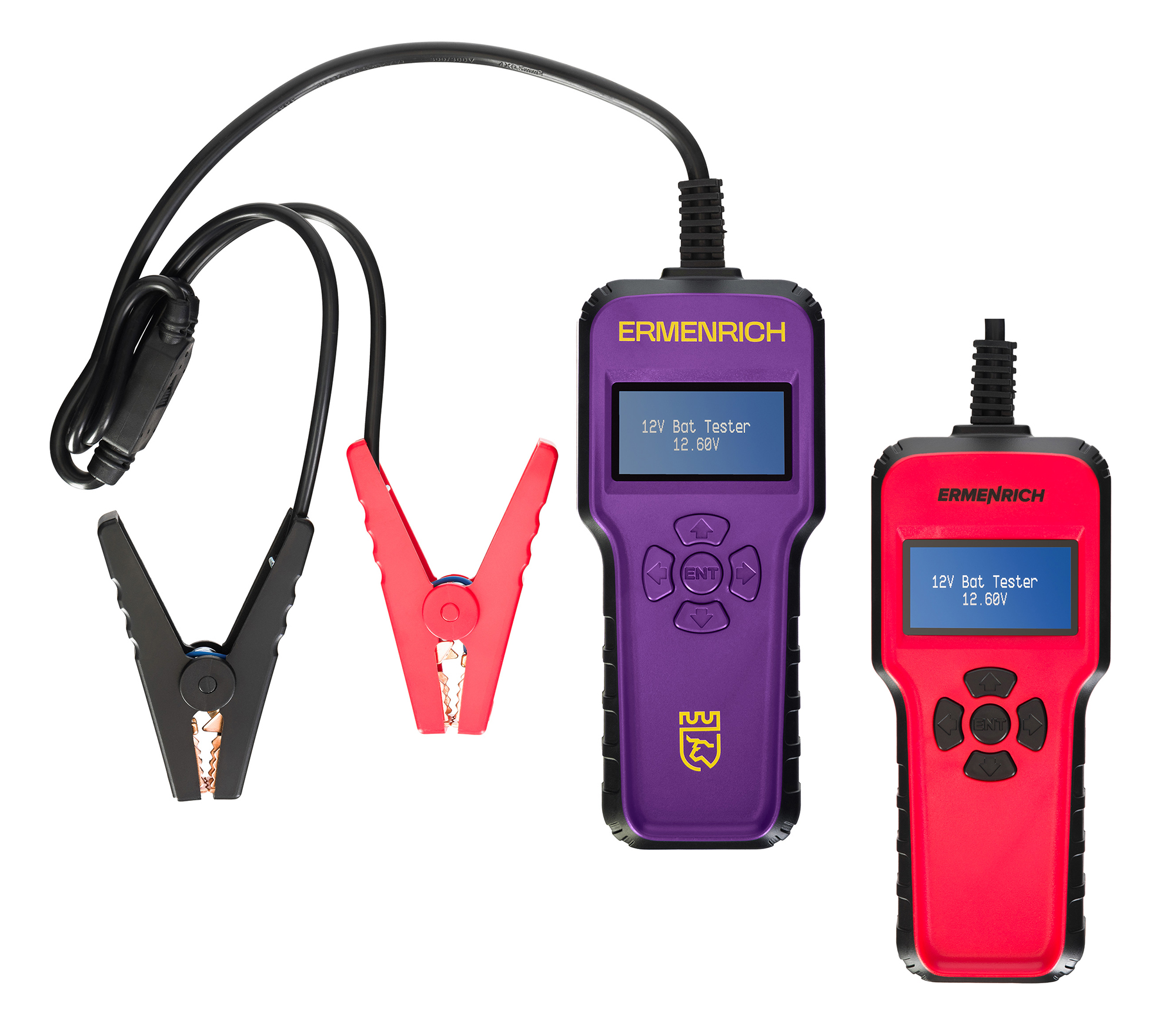

Ermenrich Zing AL40 Battery Tester

Ermenrich Zing AL40 Battery Tester

image Ermenrich Zing AL40 Battery Tester
image Ermenrich Zing AL40 Battery Tester
image Ermenrich Zing AL40 Battery Tester
image Ermenrich Zing AL40 Battery Tester
see all
image Ermenrich Zing AL40 Battery Tester
image Ermenrich Zing AL40 Battery Tester
The price is valid only for the online store and may differ from the prices in retail stores.

Car battery tester

6 — 18
Current voltage measurement range: the range of voltage values that allows certain errors of the device
0...+50
Operating temperature range: limit temperature values at which no additional errors occur in electrical measuring devices
High-strength ABS plastic
The material protects the device from dust and moisture as well as provides safety and isolation
Availability
Product ID 81733
Brand Ermenrich
Warranty 5 years
EAN 5905555021362
Package size (LxWxH) 24x17x5 cm
Shipping Weight 0.365 kg
description
specifications
downloads
accessories
Description

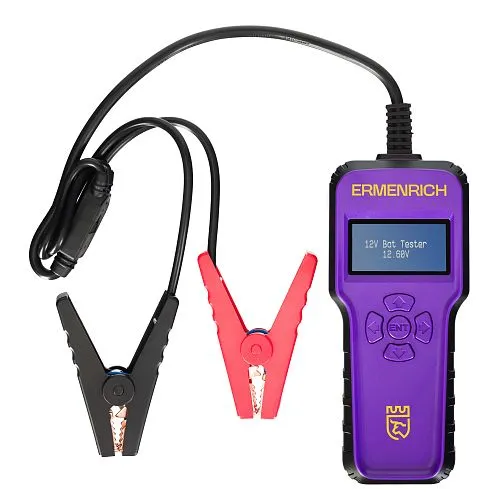

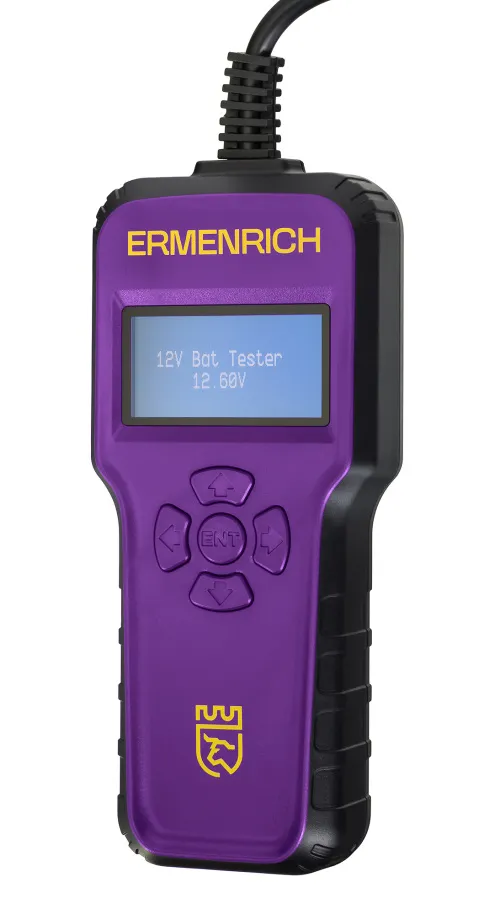

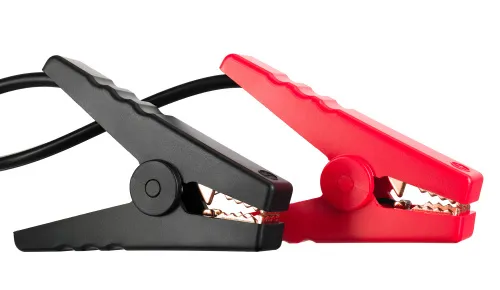

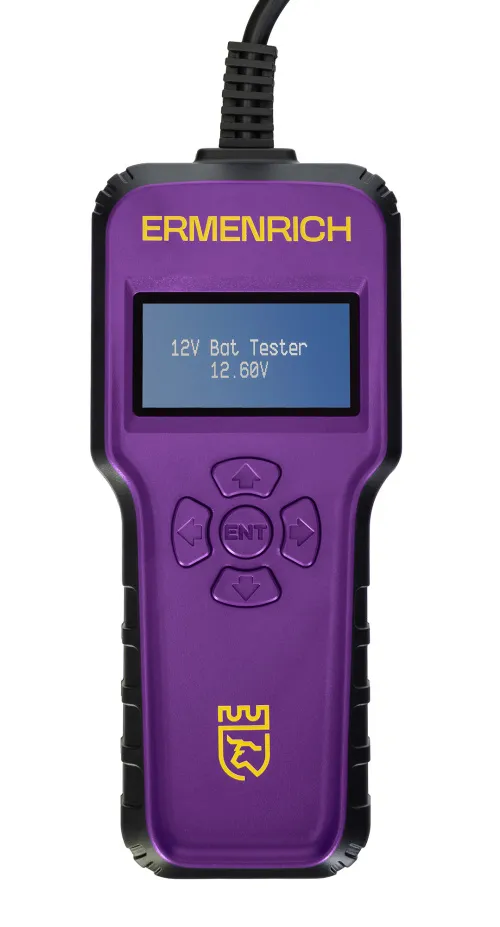

The Ermenrich Zing AL40 Battery Tester is designed to analyze the condition of the car battery as well as its performance and the main parameters. The device has a built-in screen and connects to the battery with two crocodile clips. You can operate the device and set the test parameters with simple controls.

The basic battery test detects the voltage, CCA cold cranking amps, internal resistance, and SOH and SOC values. Based on the readings, the tester will evaluate the overall battery health status: good, OK, fault. You can also use the Ermenrich Zing AL40 to test the charging system or the starting system of your vehicle.

The device does not require any external power supply, it is charged directly via the car battery that it is connected to.

Key features:

  • Battery test: voltage, internal resistance, cold cranking amps (CCA), SOH (battery health) and SOC (charge level)
  • The calculation of the overall battery health status that is based on the measurements
  • Car starting system testing and charging system testing
  • Charging via the battery under test
Specifications
Product ID 81733
Brand Ermenrich
Warranty 5 years
EAN 5905555021362
Package size (LxWxH) 24x17x5 cm
Shipping Weight 0.365 kg
Operating voltage range (DC), V 6 — 18
Measuring standards CCA: 100-1700, CA: 100-1700, BCI: 100-1700, MCA:100-1700, SAE: 100-1700, GB: 30-200Ah, JIS: 26A17-245H52, IEC 100-1000, EN: 100-1700, DIN: 100-1000
Safety standards EN 61326-1:2013
Operating humidity range, % 0 — 80
Operating temperature range, °C 0...+50
Operating storage range, °C (°F) –10…+50 (+14…+122)
Body high-strength ABS plastic
References
and downloads
Ermenrich Measuring Tools (pdf)
(PDF, 1.07 Mb)
User manual: Ermenrich Zing AL40 battery tester, red (pdf)
(PDF, 863.16 Kb)
High-resolution images (zip)
(ZIP, 53.61 Mb)
User manual: Ermenrich Zing AL40 battery tester, violet (pdf)
(PDF, 1.12 Mb)
