HU Ermenrich Verk LY60 Digital Level
Magnetic base. For measuring angles of slope. Units of measurement: degrees, percent, mm/m, in/ft
| Product ID | 81742 |
| Brand | Ermenrich |
| Warranty | 5 years |
| EAN | 5905555003221 |
| Package size (LxWxH) | 5x62x8 cm |
| Shipping Weight | 0.7 kg |

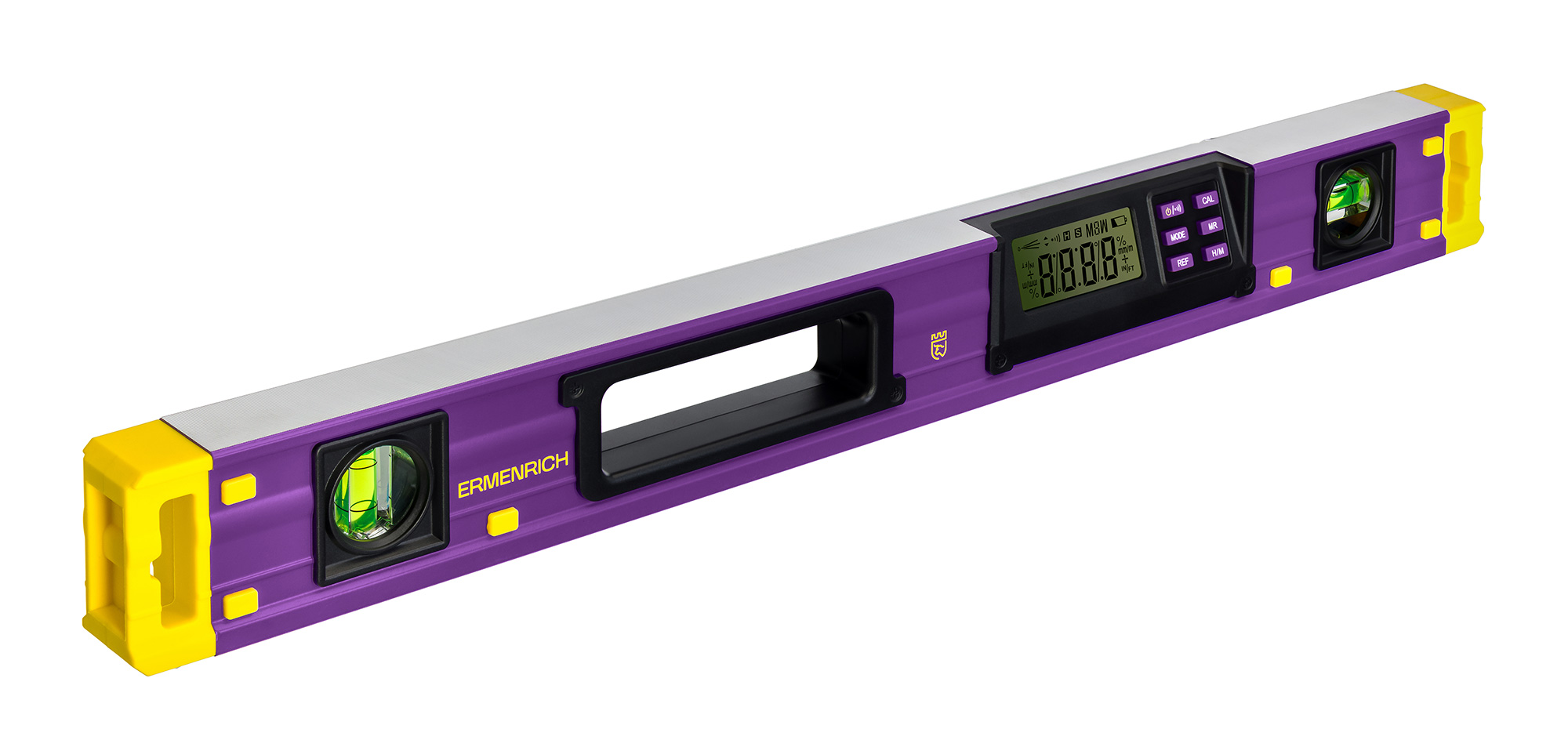

The Ermenrich Verk LY60 is a mid-length digital level for the precise horizontal and vertical alignment of objects as well as measuring various angles. It is used to measure angles over a wide range – 0–360° (4x90°). It has built-in bubble vials, so the device can also be used as a standard bubble level. The level is excellent for construction, repair, and installation for both industrial and domestic purposes. You can use it for the precise alignment of workpieces on machine tool tables, sine plates, modular fixtures, and for mounting mechanisms on foundations and piles.
Ermenrich Verk LY60 Digital Level gives readings in one of four units of measurement. IP54 dust- and waterproof-rated, high-strength body ensures long and efficient operation of the device. The bright color makes the device noticeable in a construction site or production facility. The auto-off activates after 3 minutes of inactivity and the low battery status indicator ensure that the level will run longer on a single set of batteries. There is a convenient cutout carrying handle for extra ease of carrying and use.
Key features:
- High accuracy measurement of angles and vertical/horizontal slopes
- 4 units of measurement available, a hold function, a zero set function
- Rugged body with a magnetic base, moisture and dust-proof
- Powered by batteries, a low battery status indicator, and an auto-off function
| Product ID | 81742 |
| Brand | Ermenrich |
| Warranty | 5 years |
| EAN | 5905555003221 |
| Package size (LxWxH) | 5x62x8 cm |
| Shipping Weight | 0.7 kg |
| Level type | digital, bubble |
| Accuracy | ±0.1° at 0° and 90°, the rest – ±0.2° |
| Units of measurement | mm, m, ft, in, degrees, percent |
| Measuring range, m | 0 — 360 |
| LCD screen | yes |
| Maximum resolution | 0.05° |
| Calibration | manual |
| Hold function | ✓ |
| Zero set function | ✓ |
| Magnetic base | ✓ |
| Power supply | 2 AAA batteries, 1.5V (not included) |
| Visual fault locator (VFL) | ✓ |
| Auto power off | 3 min |
| IP water and dustproof rating | IP54, partially dustproof, splashproof |
| Body | aluminum, high-strength ABS plastic, thermoplastic rubber |
| Operating temperature range,°C | 0...+40 |
| Length, mm | 600 |
| Additional | audible buzzer alert , built-in bubble level – 2 pcs. |
