HU Ermenrich Verk LQ40 Digital Level
Magnetic base. For measuring angles of slope. Units of measurement: degrees, percent, mm/m, in/ft
| Product ID | 81738 |
| Brand | Ermenrich |
| Warranty | 5 |
| EAN | 5905555003184 |
| Package size (LxWxH) | 5x9x8 |
| Shipping Weight | 0.135 |
Meet the Ermenrich Verk LQ40, a magnetic digital level that is suitable for a wide variety of applications. It can be used to level metal structures in construction and repair work as well as in manufacturing in order to measure the slope of some elements or sharpen knives. The slope is measured in a range of 0–360° (4x90°), and the buzzer helps you to precisely align the object horizontally or vertically. The measurements are given in degrees, percent, or other units of measurement – can be selected by the user.

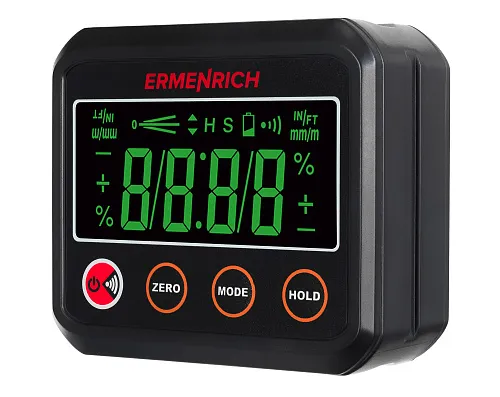

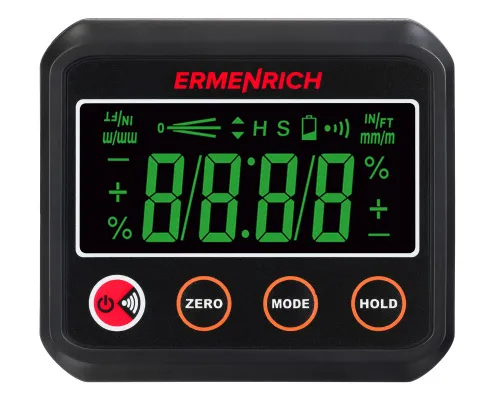

The readings are displayed on the built-in LCD screen, the control buttons located underneath. The Ermenrich Verk LQ40 Digital Level is easy to work with thanks to some extra functions – there is a possibility to “freeze” the readings and set the device to zero if you want to measure relative angles. The magnetic V-Groove base helps to secure the placement of the device on a metal surface. The high-strength ABS-plastic and polycarbonate body is impact-resistant and protected against falling drops of water. The device is powered by two standard AAA batteries and has an auto-off function that turns on after 3 minutes of inactivity.
Key features:
- High-precision measurement with an option to choose the units of measurement
- Audible buzzer alert, magnetic base with V-Groove
- Impact-resistant body with LCD screen
- Powered by batteries, a low battery indicator
| Product ID | 81738 |
| Brand | Ermenrich |
| Warranty | 5 |
| EAN | 5905555003184 |
| Package size (LxWxH) | 5x9x8 |
| Shipping Weight | 0.135 |
| Level type | digital |

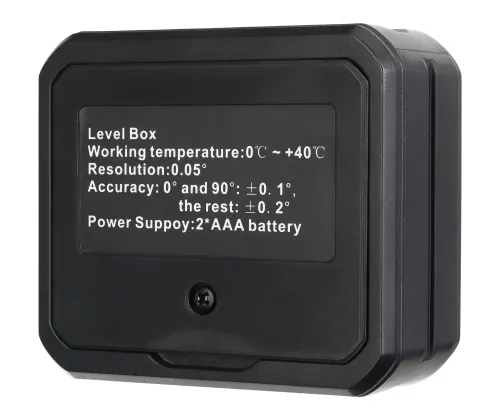

| Accuracy | ±0.1° at 0° and 90°, the rest – ±0.2° |
| Units of measurement | mm, m, ft, in, degrees, percent |
| Measuring range, m | 0 — 360 |
| LCD screen | yes |
| Maximum resolution | 0.05° |
| Calibration | manual |
| Hold function | ✓ |
| Zero set function | ✓ |
| Magnetic base | ✓ |
| V-Groove | ✓ |

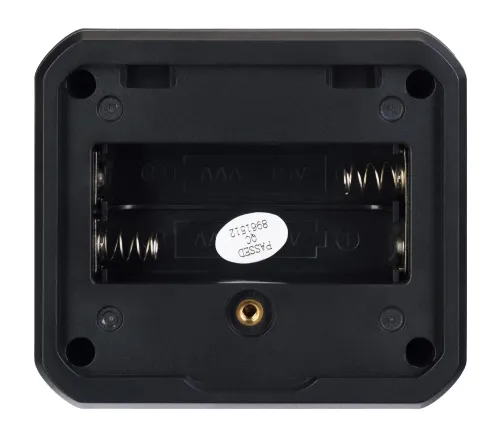

| Power supply | 2 AAA batteries, 1.5V (not included) |
| Visual fault locator (VFL) | ✓ |
| Auto power off | 3 min |
| IP water and dustproof rating | IP42, protected against vertically falling water drops (when tilted up to 15°) |
| Body | polycarbonate, high-strength ABS plastic |
| Operating temperature range,°C | 0...+40 |
| Additional | audible buzzer alert |
