Bresser MikrOkular Full HD Eyepiece Digital Camera

see all

The price is valid only for the online store and may differ from the prices in retail stores.

Full HD camera for telescopes and microscopes

2.07

Matrix resolution – the number of megapixels that it consists of; influences the detail of the image

3x3

The pixel size is directly proportional to the sensor’s sensitivity

Availability

Product ID	73754
Brand	Bresser GmbH, Germany
Warranty	2 years
EAN	4007922037028
Package size (LxWxH)	14x10x6 cm
Shipping Weight	0.22 kg

Description

Eyepiece camera with resolution 1920x1080 pixels (full HD). Includes different adapters for various microscopes and also for telescopes as well as capturing software compatible with Win 7/8/10. With this camera you can capture images and video, and document your microscope observations or share it with others. Ideal for hobby, school and work. On a telescope the camera allows to make images from the moon and bright planets. On a microscope it is it works very good with bright field and incident illumination.

Features:

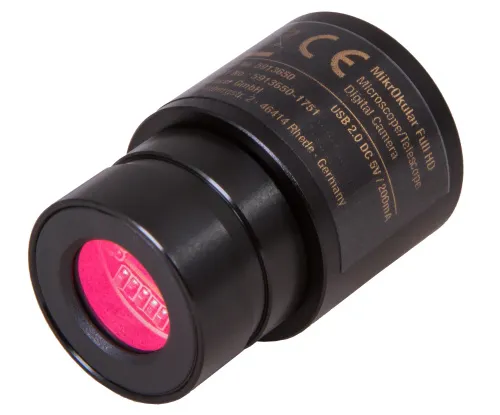

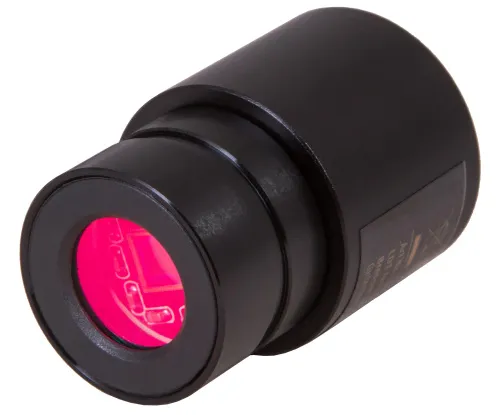

Eyepiece camera, metal housing
23.2mm barrel, integrated UV/IR blocking filter
Adapter for various microscopes and telescopes included
- Telescopes: imaging of the Moon and the planets
- Microscopy: imaging with bright field and incident illumination
Telescope adapter includes filter thread for 1.25" filters
Multilanguage software, Win 7/8/10 compatible

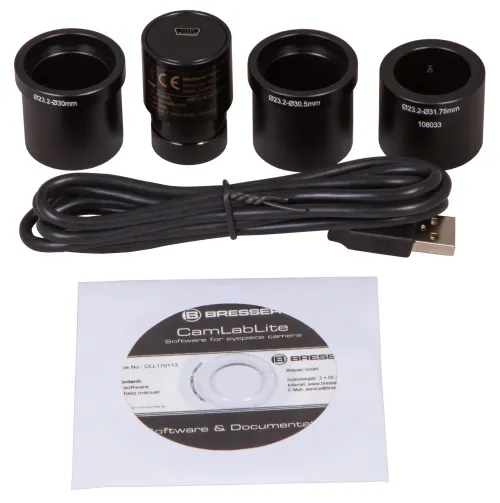

The kit includes:

Camera module incl. dust cap
USB-cable

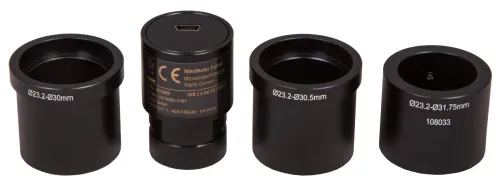

Adapters 30mm, 30.5mm, 31.7mm (31.7mm with locking screw)
Software CD (CamLabLite-Software)
Users guide included in the software (German, English)

Specifications

Product ID	73754
Brand	Bresser GmbH, Germany
Warranty	2 years
EAN	4007922037028
Package size (LxWxH)	14x10x6 cm
Shipping Weight	0.22 kg
Compatibility	telescopes and microscopes

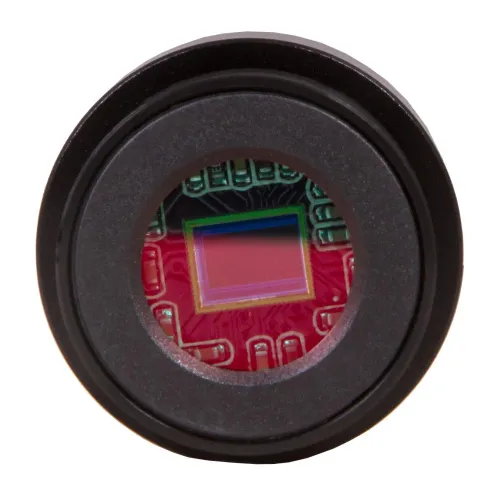

Sensor	CMOS
Megapixels	2.07
Maximum resolution, pix	1920x1080 (Full HD)
Sensor size	5.86 x 3.28mm
Pixel size, μm	3x3
Video recording	✓
Place of installation	eyepiece tube of 23.2mm diameter, instead of the actual eyepiece, 31.75-mm (1.25") diameter focuser, instead of an eyepiece
Image format	.jpg, .bmp, .png, .tif
Video format	*.avi

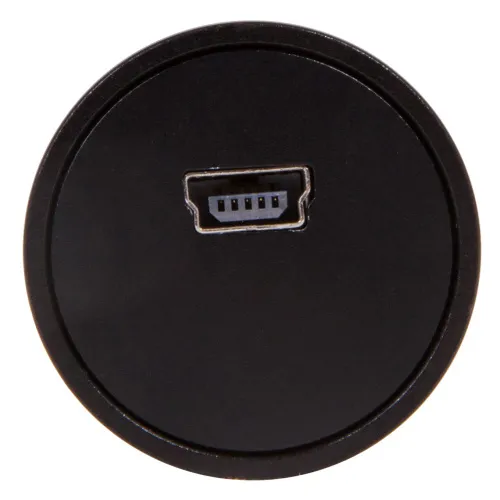

Output	USB 2.0
Data transmission	via a USB cable
System requirements	Windows 7/8/10, USB port, CD-ROM
Software	CamLabLite
Software language	Russian, English, German, French, Polish, Chinese, Turkish, Indonesian
Body	metal
Additional	telescope adapter includes filter thread for 1.25" filters, integrated UV/IR blocking filter, UVC standard
