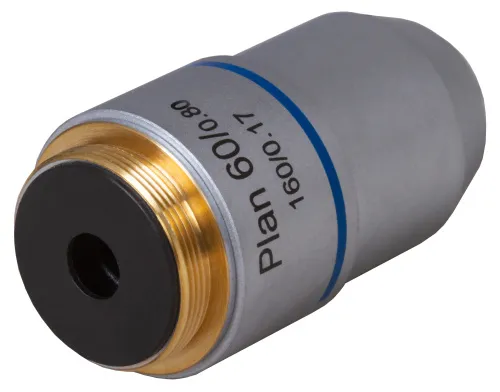

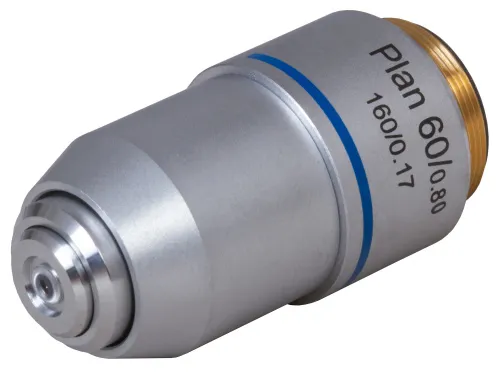

Order Levenhuk MED 60x Plan Achromatic Objective

Spring-loaded frame. Magnification: 40x. Aperture: 0.85

Availability

Future arrivals

15 July 2024

Product ID	76072
Brand	Levenhuk, Inc., USA
Warranty	2
EAN	5905555004730
Package size (LxWxH)	3x6x3
Shipping Weight	0.114

Description

The Levenhuk MED 60x plan achromatic objective can be greatly estimated by professional researchers. Its main feature is optics that render high-quality images without spherical and chromatic aberrations, and it produces flat images across the field of view. In addition, the optics improve color rendering and makes the transmitted picture more contrasting.

It is compatible with the microscopes of any brand. The optics are made of glass, the front lens is equipped with a spring-loaded frame, and the body is metal.

The kit includes:

Objective
Plastic case

Specifications
Lens material	optical glass
Body material	copper
Optical design	plan achromatic
Magnification, x	60
Aperture	0.80
Working distance, mm	0.49
Parfocal distance, mm	45
Cover glass thickness, mm	0.17
Compatible tube length, mm	160
Thread type	WJ 4/5"*1/36"
Spring-loaded frame	yes
Oil immersion	no

Specifications

Product ID	76072
Brand	Levenhuk, Inc., USA
Warranty	2
EAN	5905555004730
Package size (LxWxH)	3x6x3
Shipping Weight	0.114
