Levenhuk MED 60x Infinity Plan Achromatic Objective
Infinity-corrected. Spring-loaded frame. Magnification: 40x. Aperture: 0.8
Availability
Future arrivals
15 July 2024
2
Product ID | 76078 |
Brand | Levenhuk, Inc., USA |
Warranty | 2 |
EAN | 5905555004792 |
Package size (LxWxH) | 3x6x3 |
Shipping Weight | 0.106 |
Description

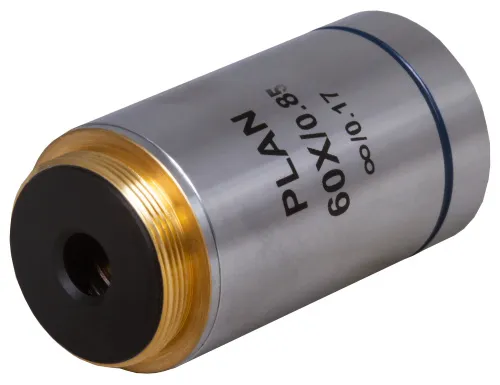

The Levenhuk MED 60x infinity plan achromatic objective is an accessory for laboratory infinity-corrected microscopes. It provides 60x magnification, flattens the field of view, eliminates optical aberrations, and allows for observing the microcosm in maximum detail. The objective renders high contrast and sharp images. The Levenhuk MED 60x infinity plan achromatic objective is an instrument for any professional microbiologist.

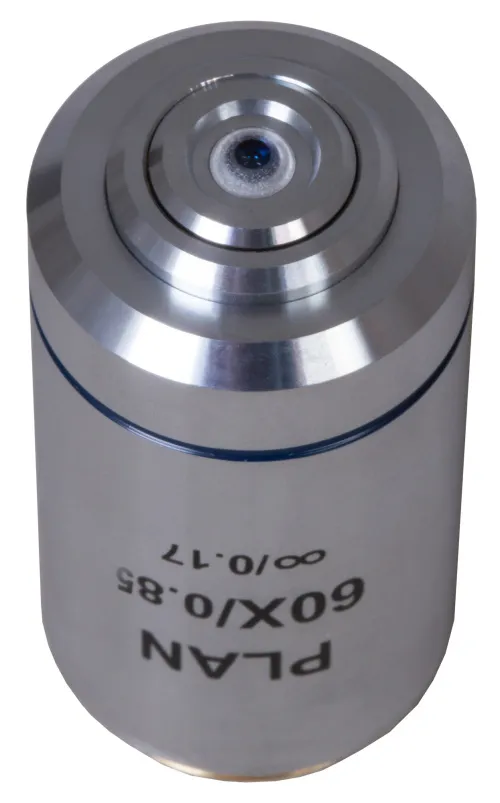

The objective's lenses are made of glass and housed in the metal body. The front lens features additional protection and a spring-loaded frame.
The kit includes:
- Objective
- Plastic case
Specifications | |
---|---|
Lens material | optical glass |
Body material | copper |
Optical design | plan achromatic |
Magnification, x | 60 |
Aperture | 0.85 |
Working distance, mm | 0.5 |
Parfocal distance, mm | 45 |
Cover glass thickness, mm | 0.17 |
Compatible tube length, mm | infinity |
Thread type | WJ 4/5"*1/36" |
Spring-loaded frame | yes |
Oil immersion | no |
