HU Levenhuk MED 100x Plan Achromatic Objective
Spring-loaded frame. For oil immersion. Magnification: 100x. Aperture: 1.25
| Product ID | 76073 |
| Brand | Levenhuk, Inc., USA |
| Warranty | 2 |
| EAN | 5905555004747 |
| Package size (LxWxH) | 3x6x3 |
| Shipping Weight | 0.108 |

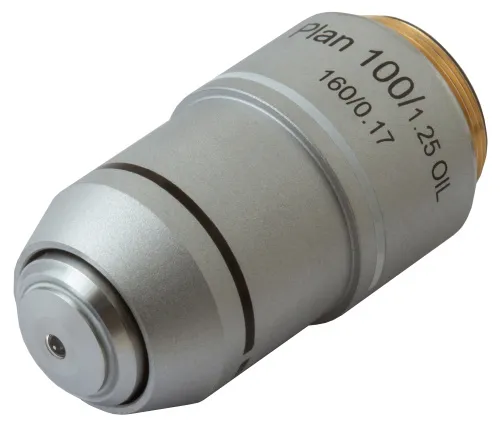

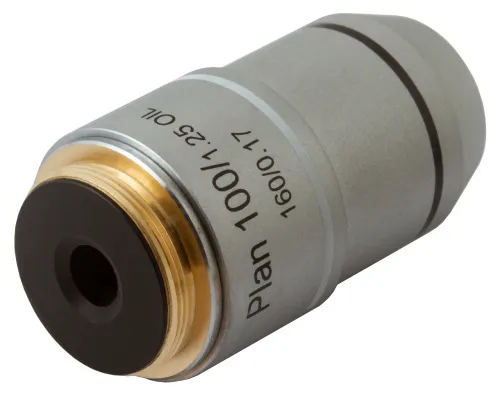

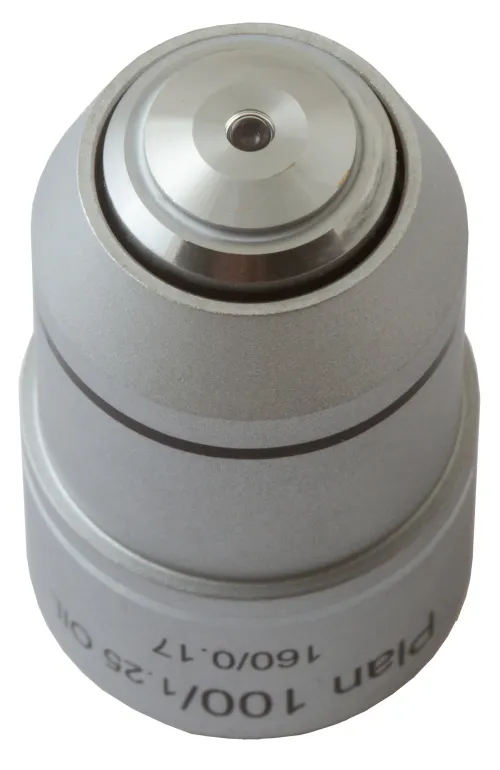

Levenhuk MED 100x is a plan achromatic objective with 100x magnification. It can be installed on the microscopes of any brand. You can use this objective for classic "dry" observations. In addition, it allows for observations using oil immersion. The front lens is equipped with the spring-loaded frame to protect the optics from accidental damage.
The plan-achromatic objective is especially effective for studying complex microstructures. It allows transmitting a quality and sharp picture without spherical and chromatic aberrations. This objective perfectly corrects the field curvature.
The Levenhuk MED 100x plan achromatic objective features glass optics and the metal body.
The kit includes:
- Objective
- Plastic case
| Specifications | |
|---|---|
| Lens material | optical glass |
| Body material | copper |
| Optical design | plan achromatic |
| Magnification, x | 100 |
| Aperture | 1.25 |
| Working distance, mm | 0.234 |
| Parfocal distance, mm | 45 |
| Cover glass thickness, mm | 0.17 |
| Compatible tube length, mm | 160 |
| Thread type | WJ 4/5"*1/36" |
| Spring-loaded frame | yes |
| Oil immersion | yes |
| Product ID | 76073 |
| Brand | Levenhuk, Inc., USA |
| Warranty | 2 |
| EAN | 5905555004747 |
| Package size (LxWxH) | 3x6x3 |
| Shipping Weight | 0.108 |
