HU Levenhuk M1400 PLUS Digital Camera
A modern microscope digital camera
| Product ID | 70359 |
| Brand | Levenhuk, Inc., USA |
| Warranty | lifetime |
| EAN | 5905555003450 |
| Package size (LxWxH) | 10x15x15 |
| Shipping Weight | 0.71 |

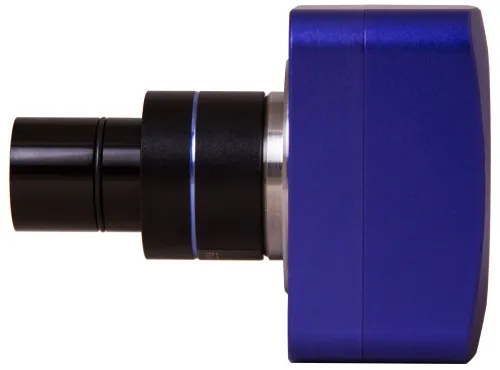

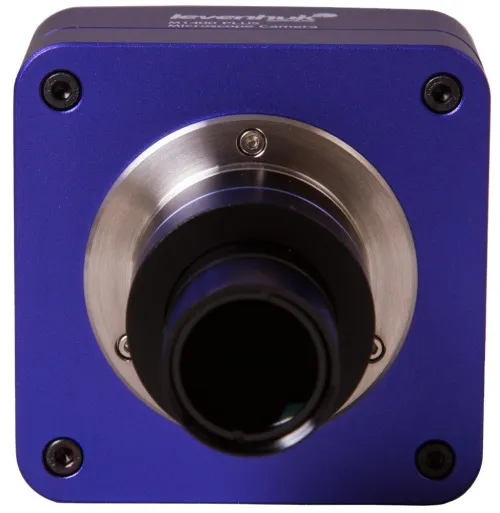

The Levenhuk M1400 PLUS Digital Camera is the most advanced model in the Levenhuk M PLUS series. A 14-megapixel sensor allows using the device as a digital eyepiece or a high-resolution camera. Levenhuk M1400 PLUS will fit eyepiece tubes of different diameters of any brand, as the kit includes adapters.
This camera allows you to create HD video. The maximum frame rate is 27 frames per second, which gives a smooth image. The high quality of taken photos allows you to print them or further scrutinize them on a computer screen. This camera model is fully compatible with microscopes having an eyepiece tube of 23.2mm diameter, and can be also used with different microscopes with the use of adapters included in the kit.
The Levenhuk M1400 PLUS Digital Camera is a tool for professionals and experienced amateurs. It is perfect for school or work, or home microworld studies and for creating photo archives of observations. The camera can also be useful while giving lectures.
The kit includes a CD with special software that allows you to edit previously saved images: zoom them, crop them, change the contrast, and so forth.
To ensure the best possible performance of your new camera, make sure your computer complies with the system requirements specified by the manufacturer. Compatible OS include Mac, Linux, and Windows. A USB 2.0 port is required to establish a connection. If the software does not run on your computer, please contact us and specify your operating system and its version (for Linux: platform and kernel version).
The latest version of Levenhuk Software for Windows supports eight languages: English, French, German, Polish, Russian, Simplified Chinese, Traditional Chinese, Turkish.
Levenhuk Digital Camera is compatible with microscopes of 23.2mm eyepiece tube diameter. The camera can also be mounted on eyepiece tubes of 30 and 30.5mm diameters using adapters, included in the kit.
The kit includes:
- Levenhuk microscope digital camera
- Adapter (23.2mm)
- 2 adapters for microscopes with different diameters of an eyepiece tube (23.2–30mm and 23.2–30.5mm)
- USB cable for connection to PC or laptop and power supply
- Installation CD with Levenhuk image editing software and the required drivers
- User manual and lifetime warranty
| Product ID | 70359 |
| Brand | Levenhuk, Inc., USA |
| Warranty | lifetime |
| EAN | 5905555003450 |
| Package size (LxWxH) | 10x15x15 |
| Shipping Weight | 0.71 |
| Sensor | CMOS |
| Megapixels | 14 |
| Maximum resolution, pix | 4096x3288 |
| Sensor size | 1/2.3" |
| Pixel size, μm | 1.4x1.4 |
| Light sensitivity | 0.724 v / lux.sec @ 550 nm |
| Exposure time | 0.4ms–2000ms |
| Video recording | ✓ |
| Frame rate, fps at resolution | 1.8@4096x3288, 10@2048x1644, 27@1024x822 |
| Active range, dB | 65.2 |
| Place of installation | eyepiece tube of 23.2mm diameter, instead of the actual eyepiece |
| Image format | *.jpg, *.bmp, *.png, *.tif |
| Video format | output: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later) |
| Spectral range, nm | 380–650 (built-in IR filter) |
| Shutter type | ERS (electronic rolling shutter) |
| White balance | manual, automatic |
| Exposure control | manual, automatic |
| Software features | image size, brightness, exposure time |
| Output | USB 2.0, 480 Mbps |
| System requirements | Windows 8/10/11 (32bit and 64bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 2GB RAM, USB 2.0 port, CD-ROM |
| Software | Levenhuk |
| Body | metal |
| Power supply | 2.0 USB cable |
| Operating temperature range,°C | -10...+50 |
