Reflector with GoTo function. Objective lens diameter: 114mm. Focal length: 1000mm

Reflector
Optical design
114
Aperture – the diameter of the light-collecting lens or mirror that the telescope uses to collect light
1000
Focal length – the distance from the primary lens or mirror to the point at which the light is focused
Availability

Product ID 71655
Brand Meade Instruments Corp.
Warranty 2 years
EAN 0643824208605
Package size (LxWxH) 92x46x22 cm
Shipping Weight 6.76 kg
Description

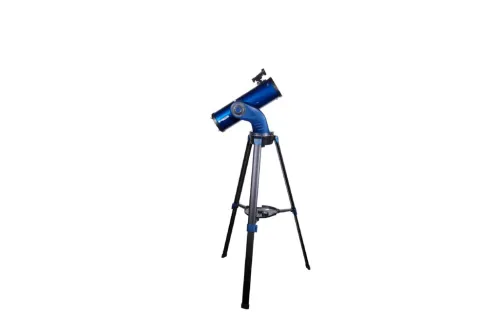

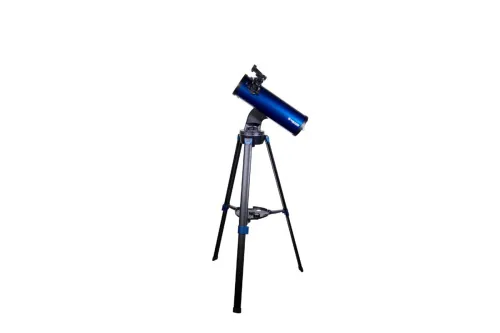

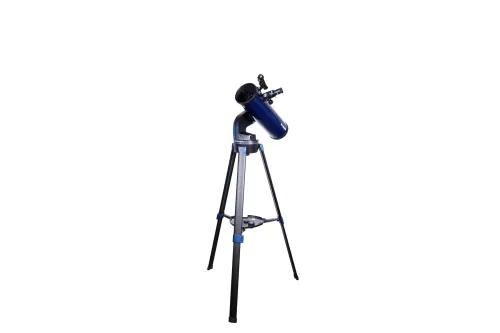

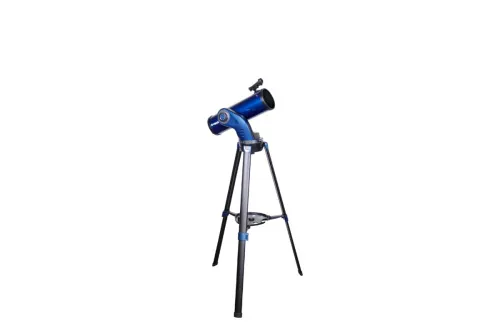

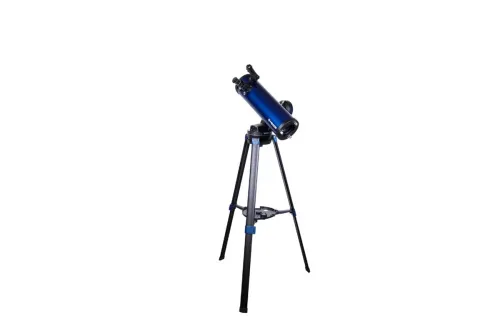

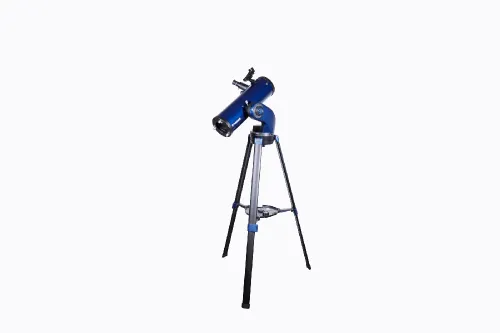

The StarNavigator NG 114mm Reflector Telescope is a lightweight and compact computer-controlled telescope for enthusiasts and beginners. It features an easy to operate, lightweight, and portable robotic mount with Meade’s AudioStar computer controller. This incredible AudioStar technology knows the night sky right out of the box. Turn it on, and after a brief alignment procedure, your telescope is ready to take you on a guided tour of the night skies best objects. With Audiostars 30,000 object database and over 4 hours of audio presentations built-in the electronics, you can learn about the objects you’re viewing. It’s like having a professional astronomer with you at the telescope!

The StarNavigator NG 114mm Reflector Telescope includes a light-weight aluminum frame, advanced electronics, internal clock, external power connector, vixen dovetail receiver and full height adjustable aluminum tripod allowing comfortable viewing from either a seated or standing position. Powered by 8 AA batteries (user-supplied) or external power (not included in the kit), you will see more objects in a single night!

This model is perfect for beginners and it is also suitable for children to take their very first steps in enjoying the night sky. A special GoTo technology with AudioStar system will allow you to find objects immediately. You don’t need to spend your time studying paper maps and searching for sky objects. The telescope will do it for you! Explore the universe with the StarNavigator NG 114mm and enjoy the amazing and exciting views.

Features:

  • New designs that make this telescope easy to use
  • AudioStar controller containing over 30,000 celestial objects
  • Single arm mount with 12V DC servo drive
  • Full size aluminum tripod with accessory tray
  • Vixen-style dovetail receiver with single locking knob
Specifications
Product ID 71655
Brand Meade Instruments Corp.
Warranty 2 years
EAN 0643824208605
Package size (LxWxH) 92x46x22 cm
Shipping Weight 6.76 kg
Optical design reflector
Optical scheme Newtonian
Optics coating fully multi-coated
Objective lens diameter (aperture), mm 114
Focal length, mm 1000
Lowest practical power, x 19
Highest practical power, x 228
Aperture ratio f/8.8
Resolution threshold, arcseconds 1
Limiting stellar magnitude 12.4
Focusing by moving an eyepiece
Eyepieces 9mm (111x), 26mm (38.5x)
Eyepiece barrel diameter, in 1.25
Finderscope red dot
Focuser 1.25", rack & pinion
Tripod aluminum
Tripod height (adjustable), mm adjustable
Accessory tray
Telescope control autoguide, manual
Mount alt-azimuth, single arm
Drive DC drives along both axes
Slew rate from 2-daily to 5.5 degrees per second (9 speeds)
Tracking rate daily
Speed selection automatic (guiding), manual (if position is corrected)
Ports RS-232, AUX, AutoStar remote control connector
Guiding system alignment automatic, reference stars with the manual centering of the star in the field of view
Autoguider
Hand controller AudioStar
Remote control features setting functions, built-in high precision clock
Programmable options automatic search in the database, autoguiding (GoTo), night sky excursion mode with audio lecture, time estimate of astronomical events, reference data on observed objects
Objects database over 38,320 objects (SAO, HSC, BSC, GCVS catalogues; stars; quasars; galaxies UGC, MCG, Abell, Arp; Caldwell, Messier, IC, NGC objects; planets from Mercury to Pluto)
Update via Internet for catalogues of artificial Earth satellites, asteroids, comets
Power supply 8 AA batteries, 210-230V network adapter (optional), 12V car cigarette lighter (optional)
Dovetail mount
User level beginners, experienced users
Assembly and installation difficulty level easy
Observed object deep-sky objects, planets of the Solar System
