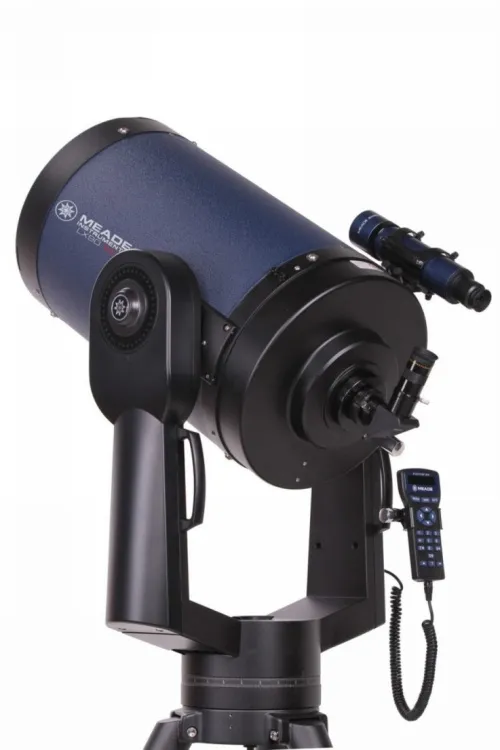

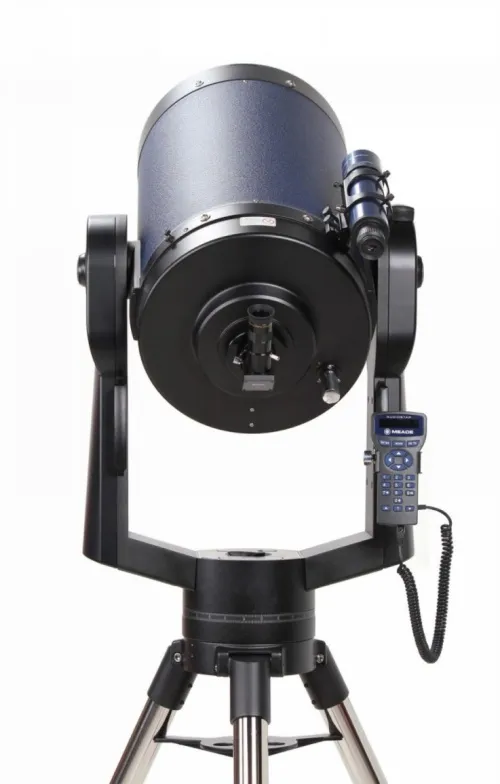

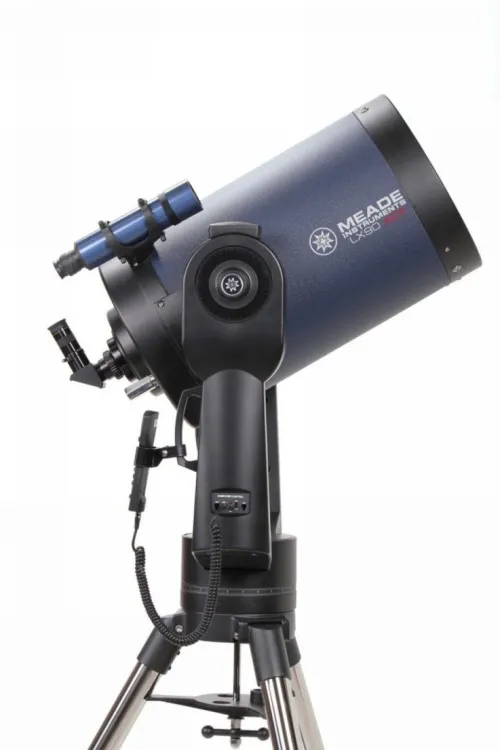

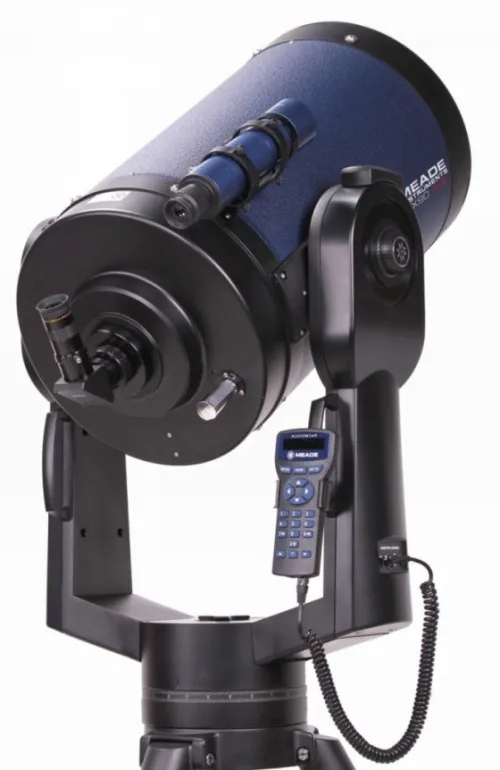

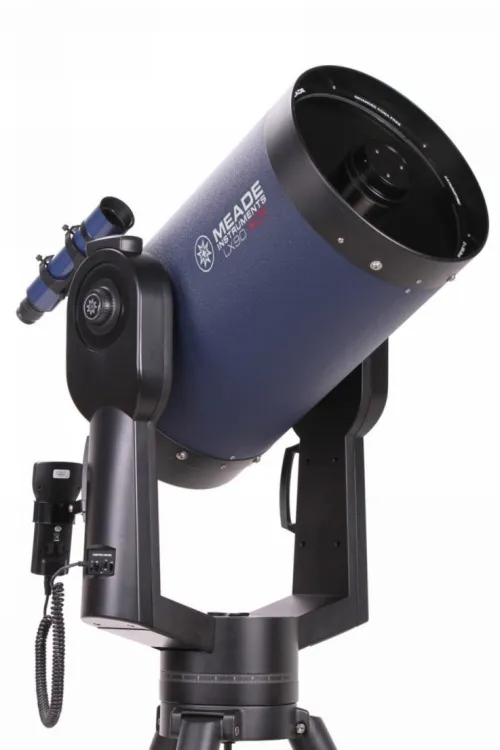

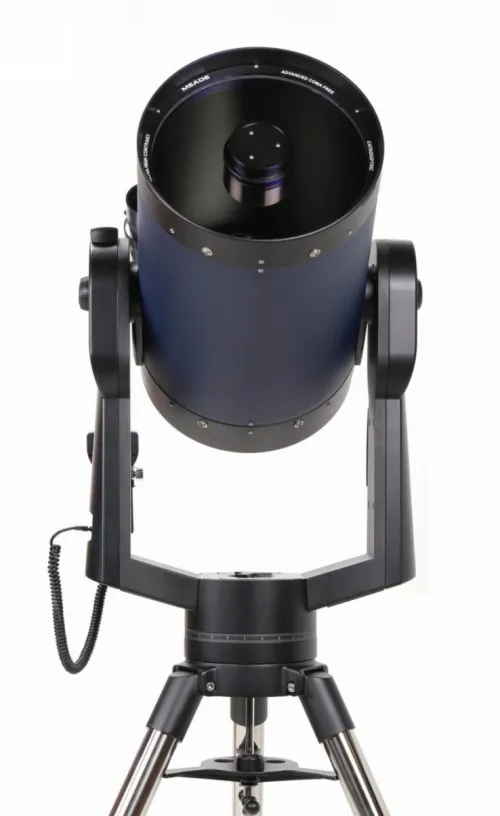

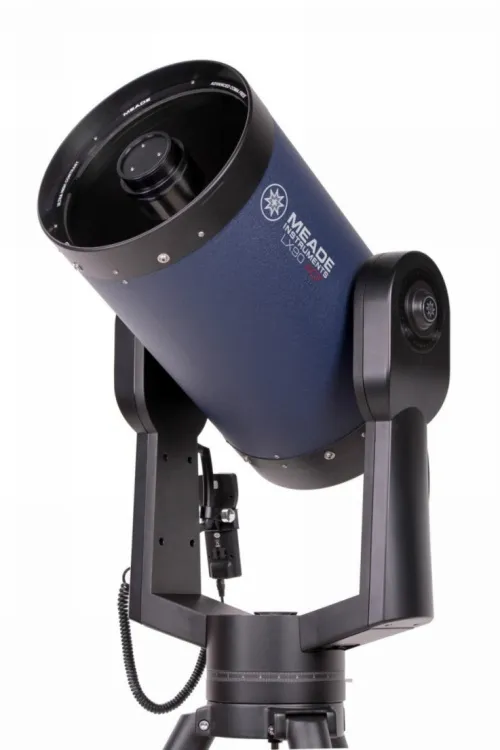

Meade LX90 12" F/10 ACF Telescope
Catadioptric Telescope. Objective lens diameter: 304.8mm. Focal length: 3048mm
Product ID | 71696 |
Brand | Meade Instruments Corp. |
Warranty | 2 years |
EAN | 0643824209015 |
Package size (LxWxH) | 80x90x67 cm |
Shipping Weight | 48.58 kg |
The 12" LX90-ACF has an 12" diameter f/10 ACF optical system (focal length 3048mm) and Ultra-High Transmission Coatings (UHTC) for maximum image brightness and contrast. This largest of the LX90 models collects over twice as much light as an 8" telescope, effectively doubling the image brightness on faint deep sky targets. Electronics include the advanced Meade AudioStar computer system with over 30,000 object library, multiple guided tours, high precision pointing capability, and Meade smartdrive with permanent periodic error correction.
Precise and quick star alignment is done near effortlessly with an incorporated 16 channel genuine Sony GPS receiver. The AudioStar is flash-updatable via free downloads at Meade.com (optional cable required).
All LX90 models feature the solid and stable LX90 aluminum double fork mount, with fast slew speed adjustable from 1º to 7º per second. Fine slewing and photographic guiding speeds can be adjusted from .01x to 1x sidereal in one one-hundredth increments. The mount and all electronics are internally powered by 8 (user supplied) C-cell batteries which will typically operate the telescope for a generous 60 hours. The mount also has mechanical locks in both axis allowing adjustment even without power.
The LX90 comes fully equipped with a heavy duty height adjustable Meade Field Tripod, 1.25" diagonal mirror, 26mm Series 4000 Plössl eyepiece, Meade Autostar Suite Astronomer Edition Software for PC and an 8x50 viewfinder with quick release bracket. Scope weight is 27kg with 8.6 tripod. Ships in 2 boxes.
Features:
- 12" f/10 Advanced Coma-Free Optics – 3048mm focal length
- Ultra-High Transmission Coatings (UHTC)
- Standard Field Tripod
- AudioStar handbox with speaker and Astronomer Inside
Product ID | 71696 |
Brand | Meade Instruments Corp. |
Warranty | 2 years |
EAN | 0643824209015 |
Package size (LxWxH) | 80x90x67 cm |
Shipping Weight | 48.58 kg |
Optical design | catadioptric |
Optical scheme | coma-free Schmidt–Cassegrain |
Objective lens diameter (aperture), mm | 305 |
Focal length, mm | 3048 |
Magnification, x | 51 — 750 |
Aperture ratio | f/10 |
Resolution threshold, arcseconds | 0.38 |
Limiting stellar magnitude | 14.8 |
Focusing | by moving the main mirror |
Eyepieces | SUPER Plössl 26mm Series 4000 |
Eyepiece barrel diameter, in | 1.25 |
Finderscope | optical, 8x50 (with an erecting prism) |
Tripod height (adjustable), mm | adjustable, 760–1280 |
Mount | alt-azimuth, fork, dual arm |
Built-in sensors | GPS |
GPS receiver | integrated |
Slew rate | from 2-daily to 6.5 degrees per second (8 speeds) |
Tracking rate | daily |
Positioning accuracy | standard: about 2 |
Speed selection | automatic (guiding), manual (if position is corrected) |
Ports | AUX (universal port for connecting Meade accessories), RS-232 |
Guiding system alignment | reference stars with the manual centering of the star in the field of view |
Autoguider | ✓ |
Programmable options | night sky excursion mode with audio lecture, automatic search in the database, autoguiding (GoTo) |
Objects database | over 30,000 objects |
Update via Internet | for catalogues of artificial Earth satellites, asteroids, comets |
Ability to connect additional equipment | camera via adapter and bayonet ring (purchased separately) |
Power supply | 12V car cigarette lighter, 220V network adapter, 12V |
Optical tube dimensions, mm | 345.4x635 |
Observed object | planets of the Solar System and deep-sky objects |
