Meade LX85 8" Reflector OTA

Meade LX85 8" Reflector OTA

image Meade LX85 8" Reflector OTA
image Meade LX85 8" Reflector OTA
image Meade LX85 8" Reflector OTA
image Meade LX85 8" Reflector OTA
see all
image Meade LX85 8" Reflector OTA
image Meade LX85 8" Reflector OTA
The price is valid only for the online store and may differ from the prices in retail stores.

Newtonian reflector. Objective lens diameter: 200mm. Focal length: 1000mm

Reflector
Optical design
200
Aperture – the diameter of the light-collecting lens (refractors and catadioptric) or mirror (reflectors) that the telescope uses to collect light
1000
Focal length – the distance from the primary lens or mirror to the point at which the light is focused
Availability
Product ID 75621
Brand Meade Instruments Corp.
Warranty 2
EAN 0709942999211
Package size (LxWxH) 41x116x42
Shipping Weight 13.699
description
specifications
downloads
accessories
Description

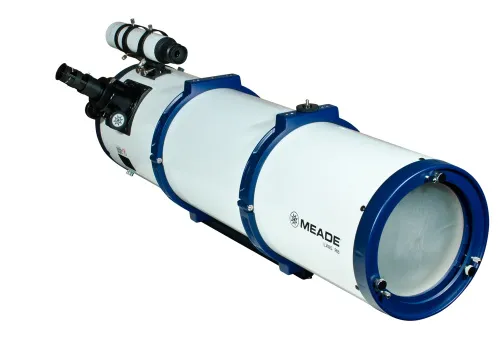

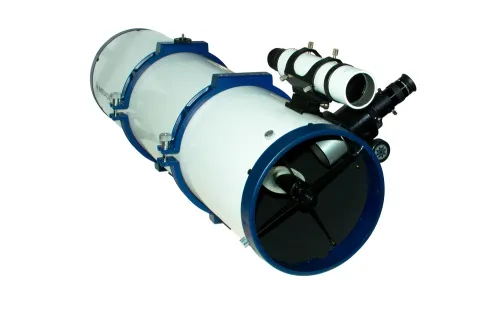

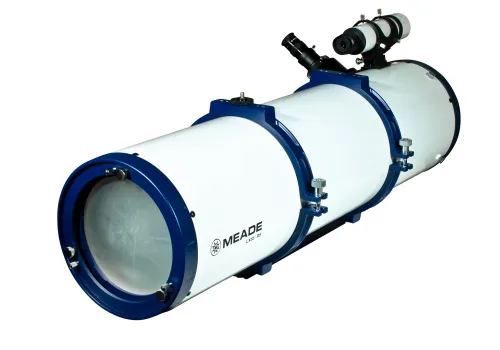

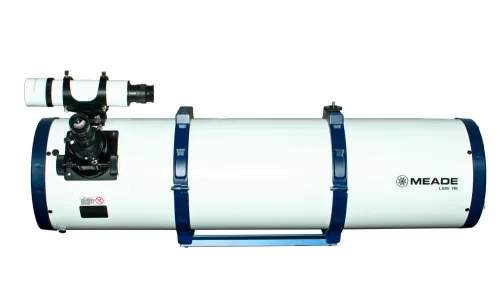

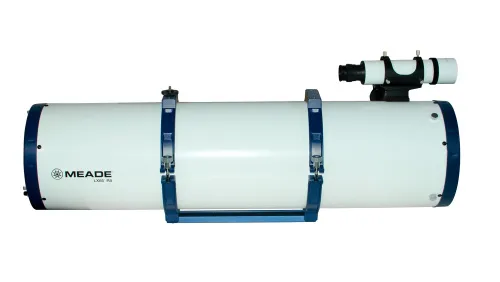

The LX85 Series 8" Reflector has a Newtonian reflector with parabolic primary optical design and features a 8" (200mm) aperture, 1000mm focal length, and f/5 focal ratio. This fast f/5 optical system provides spectacular wide-field images for the discriminating deep-sky observer and astrophotographer. Equipped with a 2" rack & pinion focuser and aluminum with SiO2 optical coatings. Includes (2) 1.25" Plössl eyepieces (9.7mm & 26mm) and a viewfinder (8x50 optical with crosshair) along with a Vixen-style dovetail. With included accessories, the OTA weighs 18.4lbs (8.4kg) and has dimensions of 9.4x39.8" (24x93.5cm).

Features:

  • 200mm (8") reflector
  • 1000mm focal length
  • f/5 focal ratio
  • 9.7mm & 26mm Plössl (1.25") eyepieces included
  • 8x50 optical viewfinder with crosshair
Specifications
Product ID 75621
Brand Meade Instruments Corp.
Warranty 2
EAN 0709942999211
Package size (LxWxH) 41x116x42
Shipping Weight 13.699
Optical design reflector
Optical scheme Newtonian
Optics coating aluminum with a protective layer of fused quartz
Primary mirror diameter (aperture), mm 200
Lens (mirror) shape parabolic
Focal length, mm 1000
Aperture ratio f/5
Eyepieces SUPER Plössl 9.7mm, SUPER Plössl 26mm
Eyepiece barrel diameter, in 1.25
Finderscope 8x50 Optical with Crosshair
Focuser 2", rack & pinion
Optical tube mounting mode dovetail plate (Vixen standard)
User level beginners, experienced users
Observed object deep-sky objects
