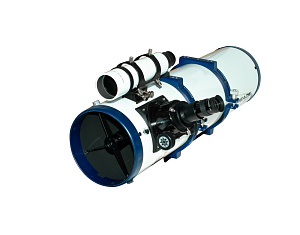

Meade LX85 6" Reflector OTA

Meade LX85 6" Reflector OTA

photograph Meade LX85 6" Reflector OTA, 1

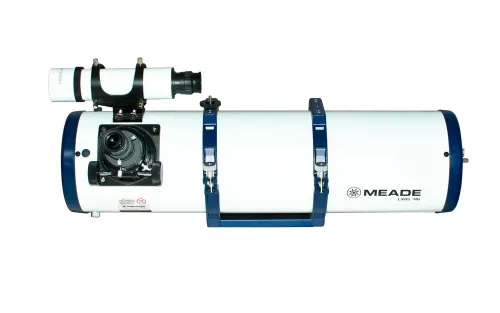

photograph Meade LX85 6" Reflector OTA, 2
photograph Meade LX85 6" Reflector OTA, 3

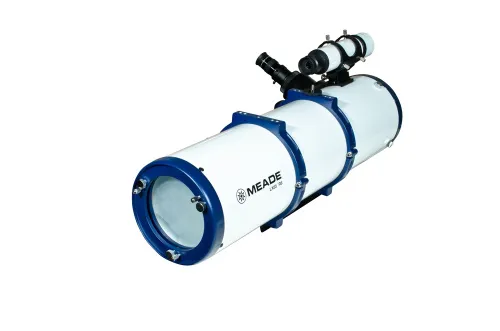

photograph Meade LX85 6" Reflector OTA, 4
see all

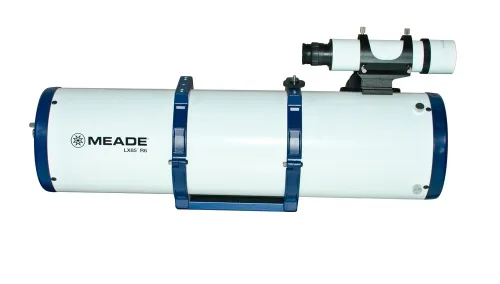

photograph Meade LX85 6" Reflector OTA, 5

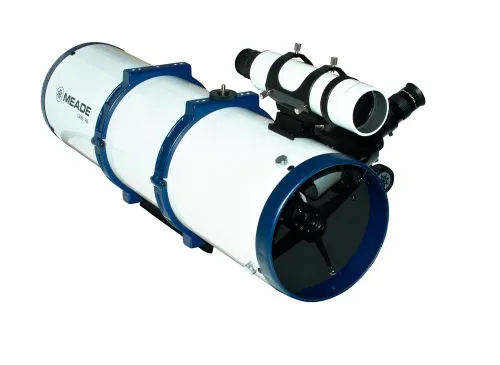

photograph Meade LX85 6" Reflector OTA, 6
The price is valid only for the online store and may differ from the prices in retail stores.

Newtonian reflector. Objective lens diameter: 150mm. Focal length: 750mm

Reflector
Optical design
150
Aperture – the diameter of the light-collecting lens or mirror that the telescope uses to collect light
750
Focal length – the distance from the primary lens or mirror to the point at which the light is focused
Availability
Product ID 75620
Brand Meade Instruments Corp.
Warranty 2 years
EAN 0709942999204
Package size (LxWxH) 30x88x32 cm
Shipping Weight 8.301 kg
description
specifications
downloads
accessories
Description

The LX85 Series 6" Reflector has a Newtonian reflector with parabolic primary mirror optical design and features a 6" (150mm) aperture, 750mm focal length, and f/5 focal ratio. This f/5 optical system provides spectacular wide-field images for the discriminating deep-sky observer and astrophotographer. Equipped with a 2" rack & pinion focuser and aluminum with SiO2 optical coatings. Includes (2) 1.25" Plössl eyepieces (9.7mm & 26mm) and a viewfinder (8x50 optical with crosshair) along with a Vixen-style dovetail. With included accessories, the OTA weighs 11.38lbs (5.2kg) and has dimensions of 18.75x70cm.

Features:

  • 150mm (6") reflector
  • 750mm focal length
  • f/5 focal ratio
  • 9.7mm & 26mm Plössl (1.25") eyepieces included
  • 8x50 optical viewfinder with crosshair
Specifications
Product ID 75620
Brand Meade Instruments Corp.
Warranty 2 years
EAN 0709942999204
Package size (LxWxH) 30x88x32 cm
Shipping Weight 8.301 kg
Optical design reflector
Optical scheme Newtonian
Optics coating aluminum with a protective layer of fused quartz
Primary mirror diameter (aperture), mm 150
Lens (mirror) shape parabolic
Focal length, mm 750
Aperture ratio f/5
Eyepieces SUPER Plössl 26mm, SUPER Plössl 9.7mm
Finderscope 8x50 Optical with Crosshair
Focuser 2", rack & pinion
Optical tube mounting mode dovetail plate (Vixen standard)
User level beginners, experienced users
Observed object deep-sky objects
References
and downloads
User manual: Meade LX85 telescopes (pdf) EN
(PDF, 6.67 Mb)
