Apochromatic refractor. Objective lens diameter: 115mm. Focal length: 805mm

Refractor
Optical design
115
Aperture – the diameter of the light-collecting lens (refractors and catadioptric) or mirror (reflectors) that the telescope uses to collect light
805
Focal length – the distance from the primary lens or mirror to the point at which the light is focused
Availability

Product ID 72628
Brand Meade Instruments Corp.
Warranty 2
EAN 0643824214842
Package size (LxWxH) 103x51x38
Shipping Weight 32.7
Description

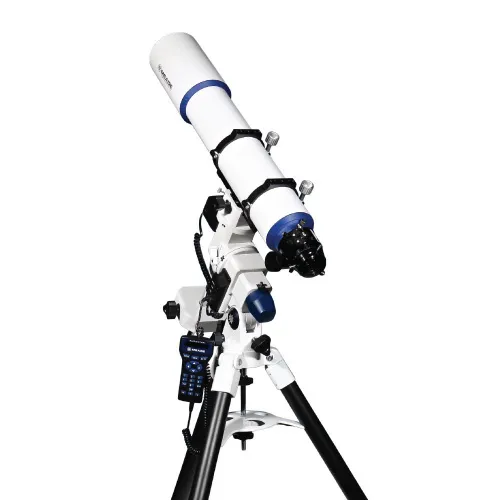

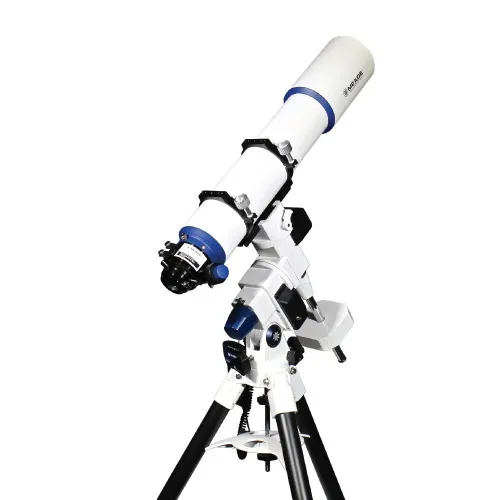

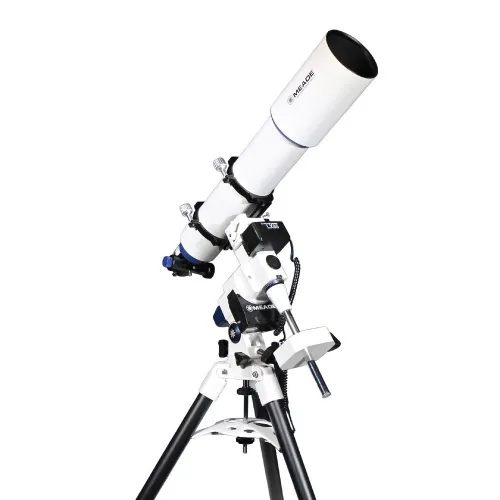

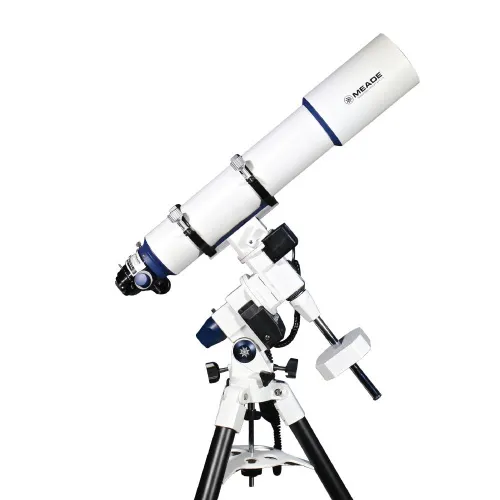

The LX85 Series 115mm APO has a 3-element apochromatic refractor optical design using the highest grade extra-low dispersion optical glass to virtually eliminate false color, yielding astonishing color correction, contrast, and sharpness. Features a 115mm aperture, 805mm focal length, and f/7 focal ratio. Equipped with a 2.5" dual rack & pinion focuser (10:1 fine focuser) and fully multi-coated optical coatings. Includes a fully extendable dew shield and vixen-style dovetail. Assembled product weight: 47lbs (21.3kg). Assembled product dimensions: 47.2x47.2x72.4" (119.9x119.9x183.9cm).

Meade's LX85 Series features a high-quality, portable, GoTo, German equatorial mount. The LX85 Series is the perfect choice for the cultivated observer and astro-imager looking to chase deep-sky objects! Use as a stand-alone mount or maximize your viewing potential with an array of different optical tubes. Meade's LX85 Series will keep you looking up for many years to come and sets a standard for mid-sized telescopes at a great price.

STURDY GOTO MOUNT

The LX85 mount features a vixen-style dovetail, for mounting optical tubes up to 33lbs, coupled with a sturdy build, that ensure smooth tracking performance. With it's included integer gearing in the motor drive, you’ll be able to track through long exposures using permanent periodic error correction (PPEC), another benefit for astrophotography. Seamlessly image the best parts of the night sky with not having to worry about performing a meridian flip. This stable mount can impressively handle slight load imbalances with ease. This mount includes an integrated autoguider port to readily connect to your autoguider camera, making your astro-imaging experience easy and straightforward.

AUDIOSTAR HAND BOX

With the included AudioStar hand controller, you have easy access to 30,000-objects, that you can view with a simple press of a button! AudioStar features a built-in speaker that plays educational content about the celestial objects you view!

Features:

  • 805mm (f/7) focal length
  • Fully extendable dew shield
  • Vixen-style dovetail receiver
  • Meade #607 DC power cord w/cigarette lighter adapter included
Specifications
Product ID 72628
Brand Meade Instruments Corp.
Warranty 2
EAN 0643824214842
Package size (LxWxH) 103x51x38
Shipping Weight 32.7
Optical design refractor
Optical scheme 3-element apochromat
Optics material FPL53 (with ultra-low dispersion)
Optics coating fully multi-coated
Objective lens diameter (aperture), mm 115
Focal length, mm 805
Aperture ratio f/7
Resolution threshold, arcseconds 1
Limiting stellar magnitude 12.3
Focuser 2.5", rack & pinion, 2-speed (10:1)
Tripod steel
Mount equatorial
Periodic error correction (PEC)
Ports RS-232, AUX, 12V accessory power slot, ST-4 autoguider port, DEС, for connecting an electric focuser
Hand controller AudioStar
Objects database 30,000
Power supply 12V, 5A DC (optional)
Optical tube mounting mode dovetail plate (Vixen standard)
User level experienced users, professionals
Observed object planets of the Solar System
