Newtonian telescope. Primary mirror diameter: 150mm. Focal length: 750mm

Reflector
Optical design
150
Aperture – the diameter of the light-collecting lens (refractors and catadioptric) or mirror (reflectors) that the telescope uses to collect light
750
Focal length – the distance from the primary lens or mirror to the point at which the light is focused
Availability

Product ID 71686
Brand Meade Instruments Corp.
Warranty 2 years
EAN 0643824208919
Package size (LxWxH) 111x53x44 cm
Shipping Weight 30.46 kg
Description

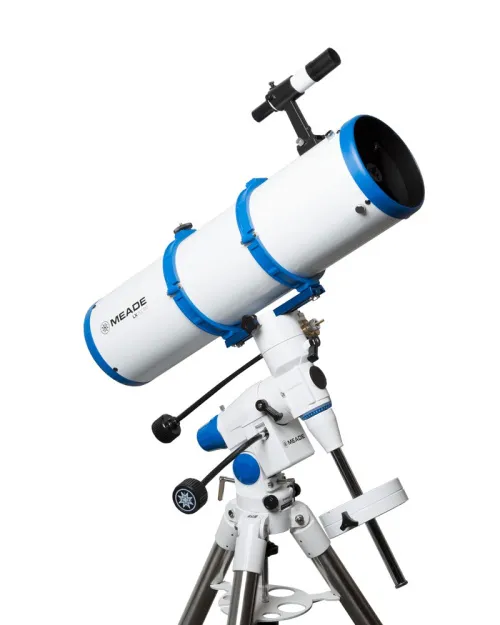

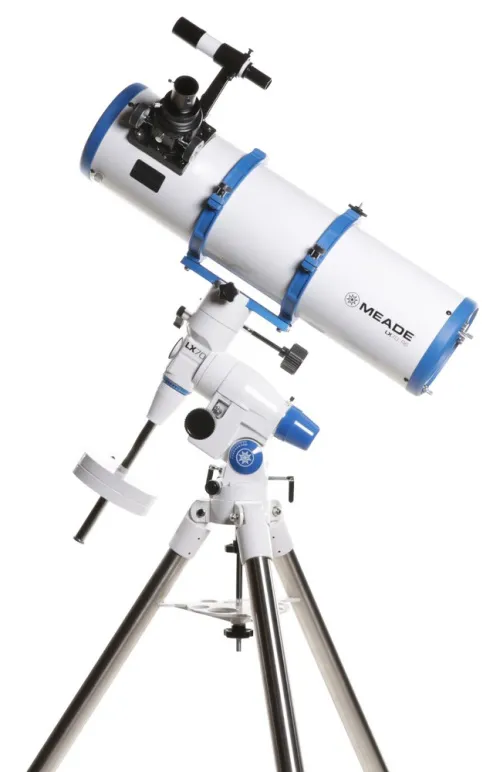

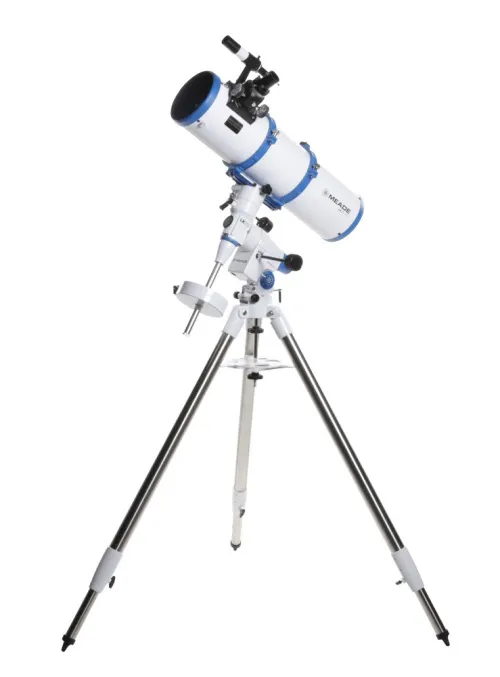

The Meade LX70 R6 6" Newtonian Reflector is equipped with a high-quality f/5 parabolic primary mirror. This fast f/5 optical system provides spectacular wide-field images for the discriminating deep-sky observer and astro-photographer. Its 6” aperture allows it to resolve details down to 0.76 arc-seconds across and can be viewed using the two included 1.25" Plössl eyepieces (9mm & 26mm). The 6x30 optical viewfinder with cross-hair reticle makes locating faint object quickly and easily. The 2" Crayford-style focuser ensures smooth motion when focusing.

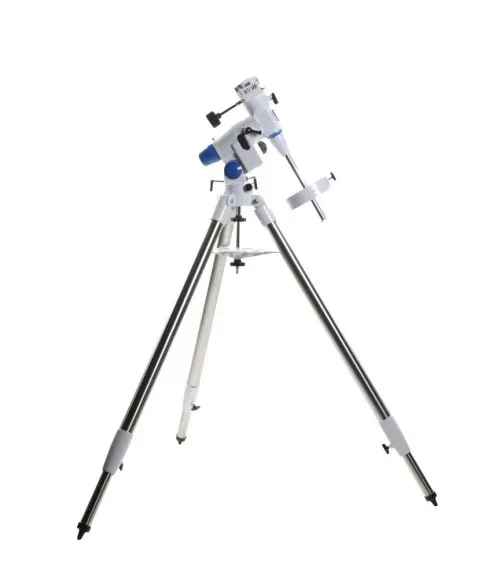

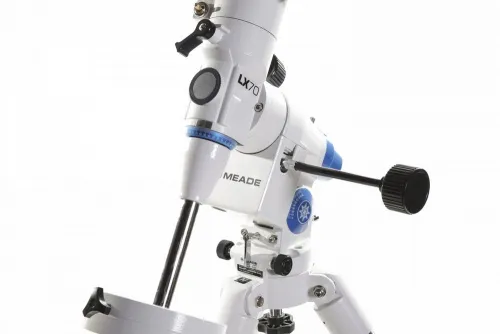

Meade LX70 German Equatorial mount. This high quality mount includes slow-motion controls for both RA and Declination and a heavy-duty, fully height adjustable tripod (33" to 46") with steel legs. Advanced features include including brass worm-gear drives on both axes for smooth tracking performance, aluminum setting circles and a built-in leveling bubble. The slow-motion control cables make it easy to track objects even on those frigid nights when wearing gloves is a necessity.

Precision push-pull adjustments in both azimuth and elevation make accurate polar alignment a breeze while the elevations built-in latitude scale will help you dial in your site latitude quickly.

The mount includes a vixen-style dovetail for mounting any Meade or third party optical tube having this common and standardized type dovetail rail and up to approximately 9kg in weight. Mount weight fully assembled is 9.5kg, including tripod, but excluding counterweights. Single 5.2kg counterweight included.

The Meade LX70 mount is designed to keep you looking up for many years to come.

Features:

  • 150mm (6") f/5 Newtonian reflector – 750mm focal length
  • Fast F/5 parabolic primary mirror
  • Two 1.25" Plössl eyepieces (9mm & 26mm)
  • 2" Crayford-style focuser
  • 6x30 viewfinder
Specifications
Product ID 71686
Brand Meade Instruments Corp.
Warranty 2 years
EAN 0643824208919
Package size (LxWxH) 111x53x44 cm
Shipping Weight 30.46 kg
Optical design reflector
Optical scheme Newtonian
Primary mirror diameter (aperture), mm 150
Lens (mirror) shape parabolic
Focal length, mm 750
Aperture ratio f/5
Resolution threshold, arcseconds 0.76
Eyepieces Plössl 9mm, Plössl 26mm (1.25")
Finderscope optical 6x30 with cross-hair reticle
Focuser 2", Crayford, with 1.25" adapter
Tripod steel
Tripod height (adjustable), mm adjustable, 838–1168
Mount equatorial
Slow-motion controls along both axes
Counterweights yes
Pointing accuracy <1 arc-second (with StarLock)
Optical tube mounting mode dovetail plate (Vixen standard)
Dovetail mount
