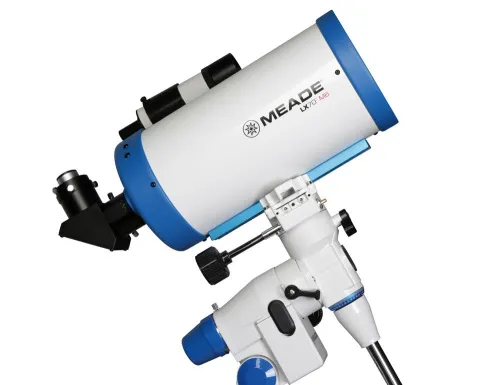

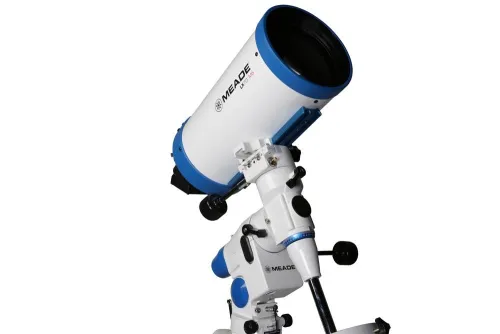

Meade LX70 M6 6" EQ MAK Telescope
Maksutov-Cassegrain telescope. Objective lens diameter: 150mm. Focal length: 1800mm
Product ID | 71688 |
Brand | Meade Instruments Corp. |
Warranty | 2 years |
EAN | 0643824208933 |
Package size (LxWxH) | 111x53x32 cm |
Shipping Weight | 29.46 kg |
The Meade LX70 M6 6" features an advanced Maksutov-Cassegrain design for pinpoint star images and extraordinary contrast, making it a great deep sky performer and ideal for detailed lunar and planetary observation as it easily soars to high magnifications. Its 6" aperture allows it to resolve details down to 0.76 arc-seconds across and can be viewed using the two included 1.25" Plössl eyepieces (9mm & 26mm). With its 2" 90° diagonal it is equipped to handle wide-field 2" eyepieces out of the box. The 8x50 optical viewfinder with cross-hair reticle makes locating faint object quickly and easily.

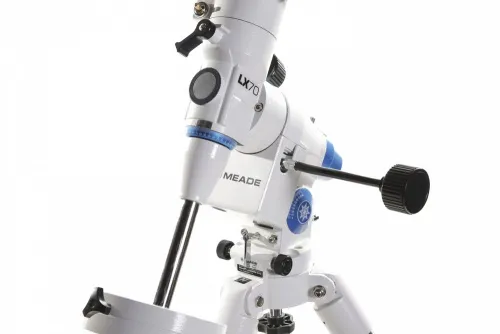

The Meade LX70 German Equatorial Mount includes slow-motion controls for both RA and Declination and a heavy-duty, fully height adjustable tripod (33" to 46") with steel legs. Advanced features include including brass worm-gear drives on both axes for smooth tracking performance, aluminum setting circles and a built-in leveling bubble. The slow-motion control cables make it easy to track objects even on those frigid nights when wearing gloves is a necessity.
Precision push-pull adjustments in both azimuth and elevation make accurate polar alignment a breeze while the elevations built-in latitude scale will help you dial in your site latitude quickly.
The mount includes a vixen-style dovetail for mounting any Meade or third party optical tube having this common and standardized type dovetail rail and up to approximately 9kg in weight. Mount weight fully assembled is 9.5kg, including tripod, but excluding counterweights. Single 5.2kg counterweight included.
The Meade LX70 mount is designed to keep you looking up for many years to come.
Features:
- 150mm (6") f/12 Maksutov-Cassegrain – 1800mm focal length
- Two 1.25" Plössl eyepieces (9mm & 26mm)
- 2" 90° diagonal with 1.25" adapter
- Internal focuser
- 8x50 viewfinder
Product ID | 71688 |
Brand | Meade Instruments Corp. |
Warranty | 2 years |
EAN | 0643824208933 |
Package size (LxWxH) | 111x53x32 cm |
Shipping Weight | 29.46 kg |
Optical design | catadioptric |
Optical scheme | Maksutov-Cassegrain |
Objective lens diameter (aperture), mm | 150 |
Focal length, mm | 1800 |
Aperture ratio | f/12 |
Resolution threshold, arcseconds | 0.76 |
Eyepieces | Plössl 9mm, Plössl 26mm (1.25") |
Finderscope | optical, 8x50 with reticle |
Focuser | internal |
Tripod | steel |
Tripod height (adjustable), mm | adjustable, 838–1168 |
Mount | equatorial |
Slow-motion controls | along both axes |
Counterweight weight, kg | 5 |
Additional | 90 º diagonal mirror (2") ; 2"–1.25" adapter |
Positioning accuracy | <1 arc-second (with StarLock) |
Optical tube mounting mode | dovetail plate (Vixen standard) |
Dovetail mount | ✓ |
