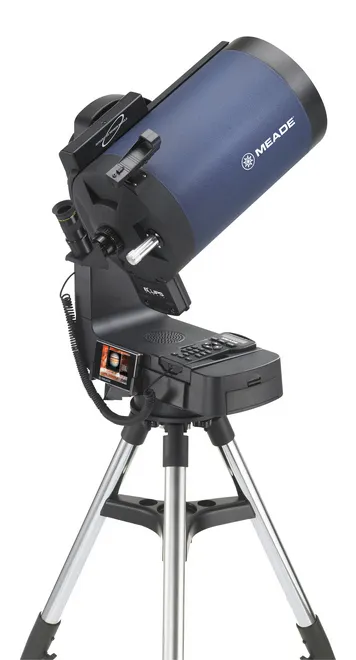

Meade LightSwitch 8" F/10 ACF Telescope
Catadioptric telescope. Objective lens diameter: 203.2mm. Focal length: 2000mm
Product ID | 71684 |
Brand | Meade Instruments Corp. |
Warranty | 2 years |
EAN | 0643824208896 |
Package size (LxWxH) | 54x78x54 cm |
Shipping Weight | 25.88 kg |
This award-winning 8" f/10 (2000mm focal length) powerhouse telescope is feature packed. Meade's patented automatic self-alignment system aligns with just one touch of the power switch. Just flip the switch and walk away.
Meade's best ACF optics deliver performance only seen previously in systems costing thousands of dollars more. With its standard Ultra High Transmission Coatings (UHTC) the LS gives you the sharpest, brightest optical system for its size available at any price.
The included AutoStar III GoTo keypad computer has an over 100,000 object library and guided tour functions. Includes Meade ECLIPS color CCD camera (640x480 resolution) which lets you capture images of your favorite celestial wonders and display them in real time on an external (user supplied) monitor or store them on a (user supplied) SD card so you can do CCD imaging your very first night out.
The included Astronomer Inside feature delivers over 4 hours of fun and informational audio presentations which can be heard over the built in speaker, and 30 minutes of video presentations and animations plus hundreds of still images which can be watched over an external (user supplied) TV or monitor.
Eight (user supplied) C cell batteries will run the telescope for 3–5 hours. Includes a highly rigid single fork mount featuring aluminum construction with massive 4.875" precision worm-gears. Standard equipment also includes a sturdy, adjustable height tripod with steel legs for great stability and vibration damping and a Series 4000 Meade 26mm Super Plössl eyepiece (77X magnification).
Meade LightSwitch technology- bringing the fun back to Astronomy. This changes everything.
Features:
- 8" advanced coma free optics – 2000mm focal length
- Ultra-High Transmission Coatings (UHTC)
- LightSwitch automatic self-alignment technology
- AutoStar III GoTo system with Astronomer Inside and 100,000 object library
Product ID | 71684 |
Brand | Meade Instruments Corp. |
Warranty | 2 years |
EAN | 0643824208896 |
Package size (LxWxH) | 54x78x54 cm |
Shipping Weight | 25.88 kg |
Optical design | catadioptric |
Optical scheme | coma-free Schmidt–Cassegrain |
Optics material | Pyrex |
Objective lens diameter (aperture), mm | 203 |
Focal length, mm | 2032 |
Magnification, x | 34 — 600 |
Aperture ratio | f/10 |
Resolution threshold, arcseconds | 0.57 |
Limiting stellar magnitude | 14 |
Focusing | by moving the main mirror |
Eyepieces | SUPER Plössl 26mm Series 4000 |
Eyepiece barrel diameter, in | 1.25 |
Finderscope | red dot, upright |
Tripod height (adjustable), mm | adjustable, 760–1280 |
Tripod weight, kg | 3.2 |
Mount | alt-azimuth, fork, single arm |
Built-in sensors | GPS, horizon, magnetic declination |
GPS receiver | integrated |
Slew rate | 2x sidereal to 4 °/sec (8-speed) |
Tracking rate | daily |
Automatic horizontal alignment | ✓ |
Automatic magnetic pole search | ✓ |
Reference stars | ✓ |
Input observation location | ✓ |
Input date and time | ✓ |
Ports | USB |
Guiding system alignment | reference stars with the manual centering of the star in the field of view |
Autoguider | ✓ |
Hand controller | AutoStar III |
Programmable options | automatic search in the database, autoguiding (GoTo), night sky excursion mode with audio lecture |
Data storage media | mini-USB |
Audio | more than 4 hours of Star Date audio recordings |
Video format | 30 minutes of video recordings and animation |
Objects database | over 100,000 objects |
Update via Internet | for catalogues of artificial Earth satellites, asteroids, comets |
Built-in astronomy camera | ✓ |
Power supply | 220V network adapter, 12V, 12V car cigarette lighter |
Optical tube weight, kg | 13.6 |
Observed object | planets of the Solar System and deep-sky objects |
