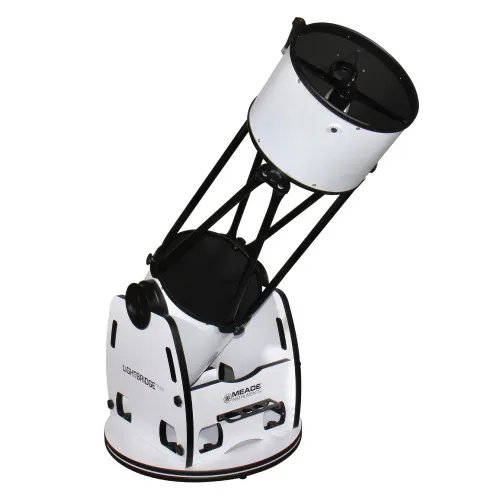

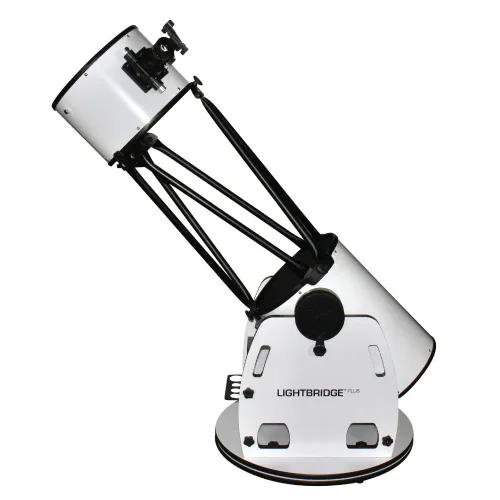

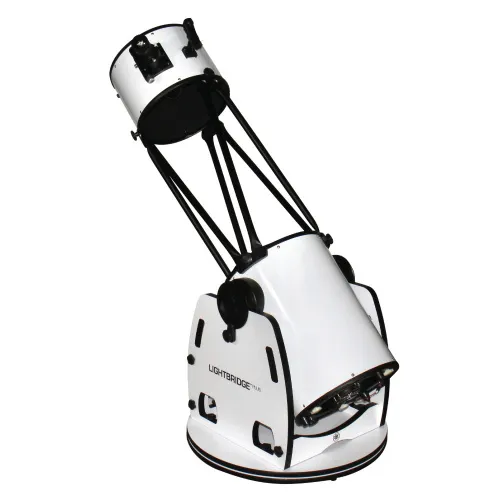

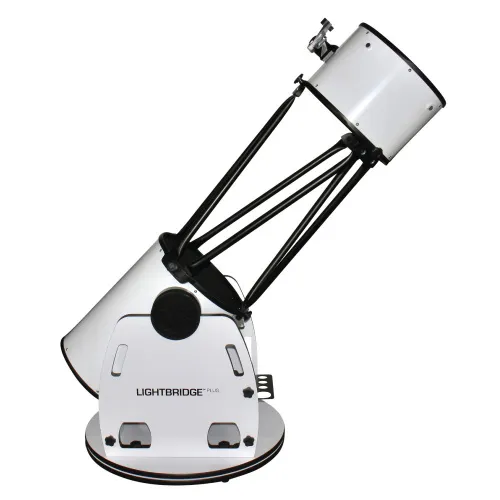

Meade LightBridge Plus 12" Reflector Telescope
Newtonian telescope. Primary mirror diameter: 304mm. Focal length: 1524mm
| Product ID | 72630 |
| Brand | Meade Instruments Corp. |
| Warranty | 2 years |
| EAN | 0643824214866 |
| Package size (LxWxH) | 93x75x50 cm |
| Shipping Weight | 45.8 kg |
Meade LightBridge Plus Telescope features a modern, sleek design with a no-tool assembly. This telescope has a large light-gathering capability and provides bright, clear images when you observe deep-space objects such as galaxies, nebulae, planets, and much more. There are models with 10, 12, & 16-inch apertures. Due to the open truss design, this telescope is portable and features an easy setup. The redesigned Dobsonian base with a no-tool assembly provides a stable stand. The telescope comes with roller bearings, a hand-adjustable variable tension brake for smooth and stable movement, and a mounted eyepiece holder that can carry 2" and 1.25" eyepieces.

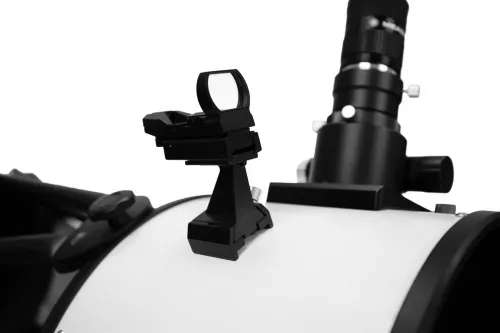

This telescope features an upgraded 2" two-speed Rack & Pinion Focuser. The Rack & Pinion design includes a 10:1 fine focus knob for precise focusing and includes a Vernier scale with millimeter markings on the drawtube to assist with focusing accuracy. The kit includes a 3-element, fully multi-coated 2" Series 4000 26mm eyepiece that provides a 56 degree apparent field of view, and an aluminum Red-Dot Viewfinder. Meade’s AutoStar Suite Astronomer Edition software displays more than 15,000 celestial wonders. This software allows observing the night sky, constellations, planet positions wherever you perform observations.
Features:
- 12" (304mm) Newtonian Reflector
- 1524mm Focal Length, f/5
- 2", two-Speed (10:1) Rack & Pinion Focuser
- 2" Series 4000 26mm Eyepiece
- Open Truss Design For Ultra Portability
- Dobsonian Base with No Tool Assembly
| Product ID | 72630 |
| Brand | Meade Instruments Corp. |
| Warranty | 2 years |
| EAN | 0643824214866 |
| Package size (LxWxH) | 93x75x50 cm |
| Shipping Weight | 45.8 kg |
| Optical design | reflector |
| Optical scheme | Newtonian |
| Optics coating | fully multi-coated |
| Objective lens diameter (aperture), mm | 304 |
| Focal length, mm | 1524 |
| Aperture ratio | f/5 |
| Resolution threshold, arcseconds | 0.38 |
| Limiting stellar magnitude | 14.4 |
| Eyepieces | 2", series 4000, 26mm |
| Field of view with an eyepiece included, ° | 56 |
| Finderscope | red dot |
| Focuser | 2", 2-speed (10:1) rack & pinion |
| Mount | Dobsonian |
| Telescope installation platform | alt-azimuth |
| Additional | parabolic main mirror, tube cooling system |
