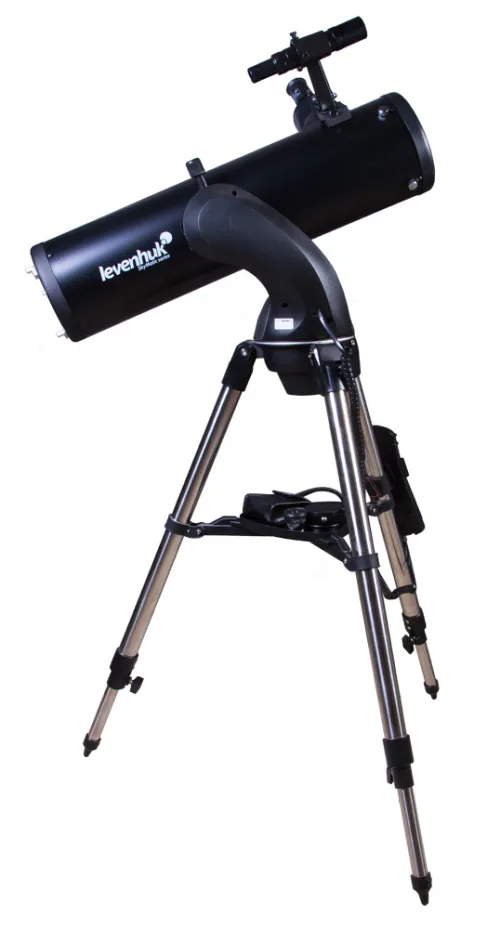

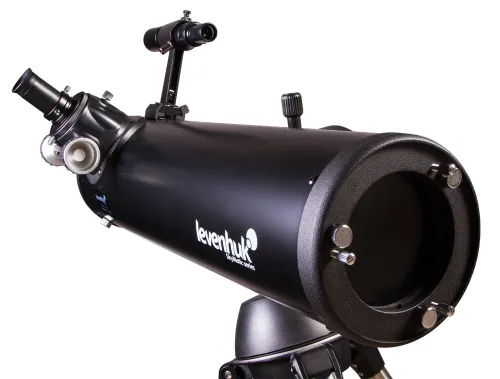

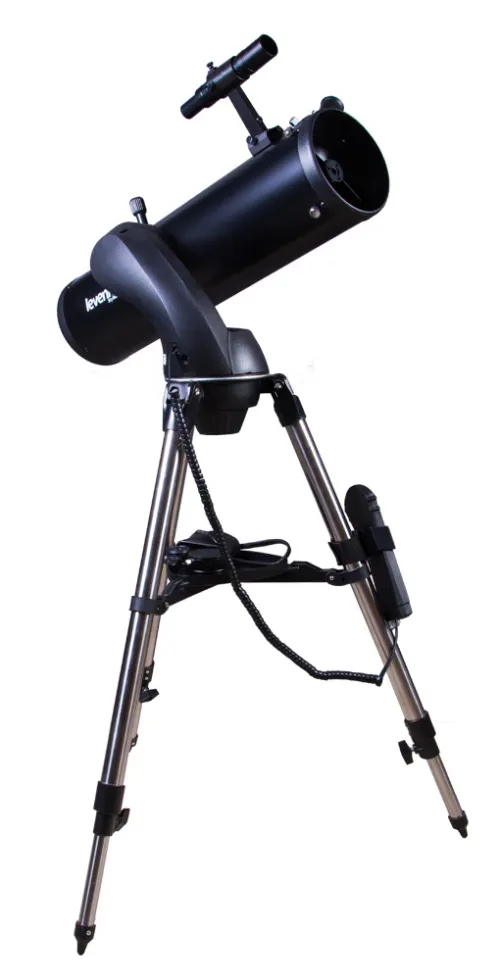

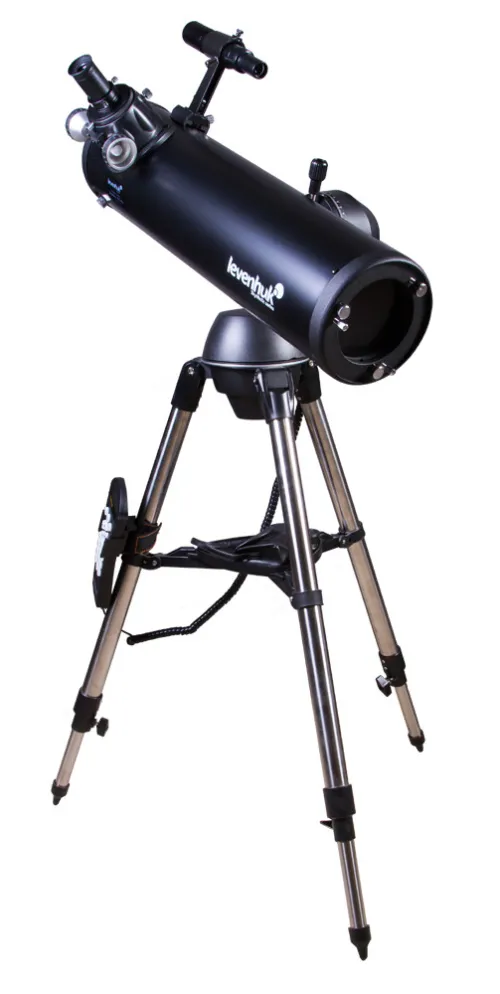

HU Levenhuk SkyMatic 135 GTA Telescope
Reflector with GoTo function. Aperture: 130mm. Focal length: 650mm
| Product ID | 18114 |
| Brand | Levenhuk, Inc., USA |
| Warranty | lifetime |
| EAN | 5905555002118 |
| Package size (LxWxH) | 44x26x100 cm |
| Shipping Weight | 12.02 kg |
The Levenhuk SkyMatic 135 GTA Telescope is a reflector on an azimuth mount with GoTo function. This large aperture (f/5) telescope is not only suitable for astronomical observations, but also for astrophotography. Lunar craters with a diameter of just 4.5 miles, the rings of Saturn, the seasons change on Mars, and the distant nebulae and galaxies: can all be observed in detail through this telescope. You can also watch the most striking objects from the Messier and NGC catalogues, asteroids, comets, and more.
Maximum useful magnification in the telescope is 260x with the resolution of 1.1". Such a combination ensures the highest HD picture quality with magnification, suitable for most astronomical observations.

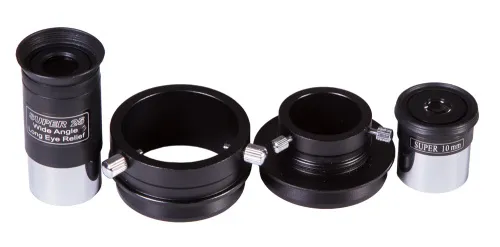

Two achromatic eyepieces SUPER 10 and SUPER 25 with a 31.75-millimeter (1.25-inch) diameter are included in the package and serve as powerful image correction tools. The optics used in the eyepiece are glass with a special coating. Field of view is 50–52 degrees.
The telescope comes with an azimuth AZ 114 GT SynScan computer-guided mount. Thanks to the GoTo function, the telescope is capable of capturing any astronomical object with its coordinates stored in the microprocessor memory with incredible accuracy. This computer system will provide automatic guidance to more than 42,900 celestial objects. SkyMatic GoTo mounts are compatible with an external 12V battery pack.
Levenhuk SkyMatic 135 GTA Telescope is a true godsend for inexperienced stargazers: the computer-controlled mounting system will point the instrument at one of the 42,900 celestial objects stored in its database.
The kit includes:
- Levenhuk SkyMatic 135 GTA Telescope
- Eyepieces: 10mm and 25mm
- 1.25/2" adapter
- Optical finder scope
- GoTo mount with the SynScan AZ system

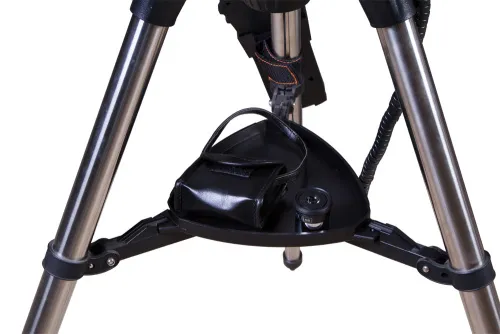

- Tripod with an accessory tray
- Hand controller
- Battery compartment
- Set of connecting cables
- Tools for assembly
- Compass
- User manual and lifetime warranty
Astrophotography test shots made with Levenhuk SkyMatic 135 GTA:
| Product ID | 18114 |
| Brand | Levenhuk, Inc., USA |
| Warranty | lifetime |
| EAN | 5905555002118 |
| Package size (LxWxH) | 44x26x100 cm |
| Shipping Weight | 12.02 kg |
| Optical design | reflector |
| Optical scheme | Newtonian |
| Optics material | optical glass |
| Optics coating | standard |
| Primary mirror diameter (aperture), mm | 130 |
| Lens (mirror) shape | parabolic |
| Focal length, mm | 650 |
| Highest practical power, x | 260 |
| Aperture ratio | f/5 |
| Resolution threshold, arcseconds | 1.1 |
| Limiting stellar magnitude | 12.6 |
| Eyepieces | SUPER 10mm (65x), SUPER 25mm (26x) |
| Eyepiece barrel diameter, in | 1.25 |
| Finderscope | optical, 6x30 |

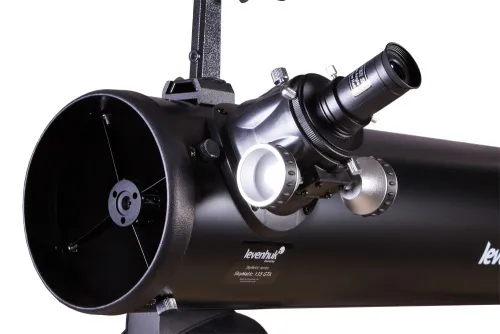

| Focuser | 1.25", rack & pinion |
| Tripod | steel |
| Tripod height (adjustable), mm | 630–1150 |
| Accessory tray | ✓ |
| Telescope control | autoguide |
| Mount | alt-azimuth |
| Drive | DC servo drives |
| Tracking rate | sidereal, Lunar, Solar |
| Positioning accuracy | up to 10 |
| Tracking mode | along two axes |
| System requirements | OS Windows 95/98/2000/XP/Vista/7/8/10; connecting a USB adapter to a computer via serial port (RS-232) |
| Guiding system alignment | one bright star, two stars |
| Autoguider | ✓ |
| Hand controller | SynScan AZ operating and autoguiding system |
| Objects database | 42,900 objects |
| Power supply | 11–15V, 1A DC |
| User level | experienced users |
| Assembly and installation difficulty level | easy |
| Observed object | deep-sky objects |
