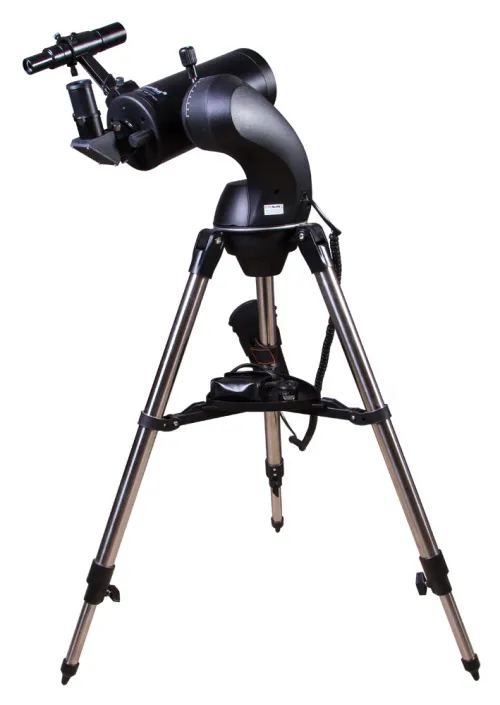

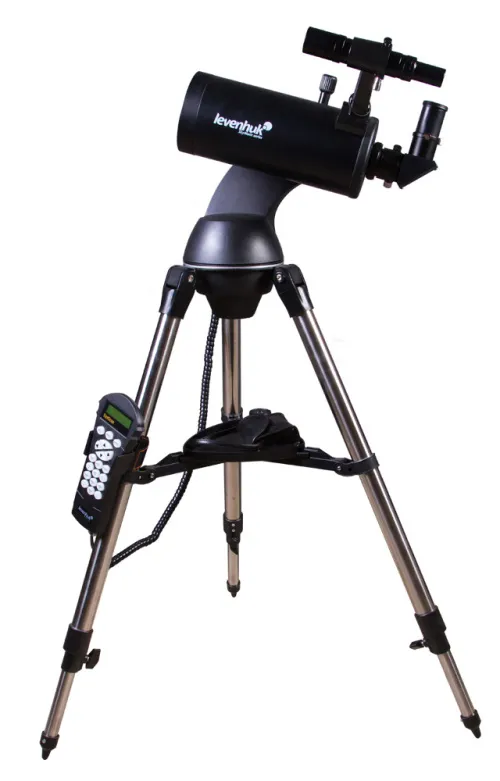

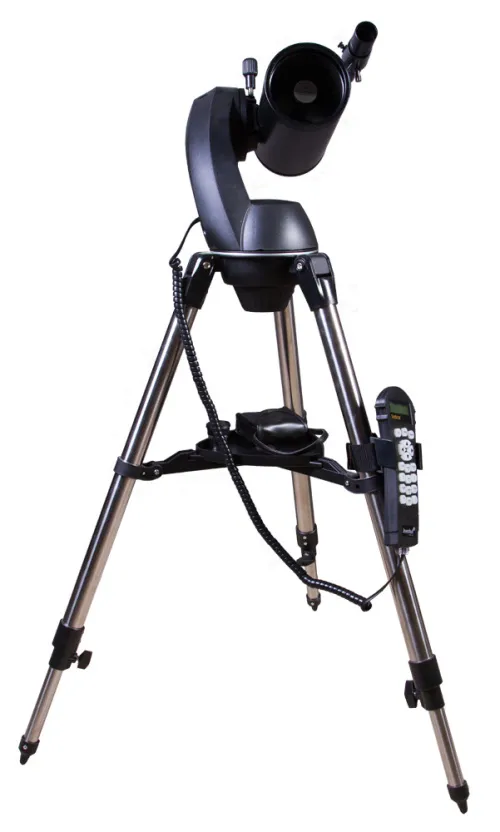

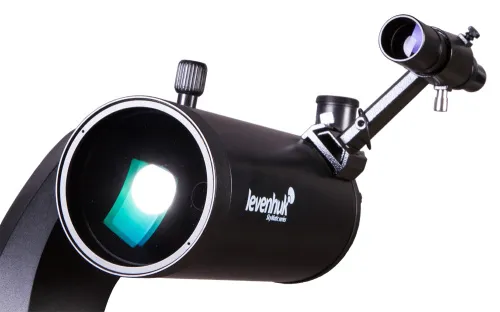

Levenhuk SkyMatic 105 GT MAK Telescope
Maksutov-Cassegrain with GoTo function. Objective lens diameter: 102mm. Focal length: 1300mm
Product ID | 18116 |
Brand | Levenhuk, Inc., USA |
Warranty | lifetime |
EAN | 5905555002125 |
Package size (LxWxH) | 43x87x26 cm |
Shipping Weight | 10 kg |
The Levenhuk SkyMatic 105 GT MAK Telescope with GoTo function is of the Maksutov-Cassegrain design. This allows an excellent image quality with high resolution while maintaining a very compact size. Through this telescope you can observe lunar craters with a diameter of just 4.5 miles, the structure of sunspots, the belts of Jupiter and Saturn's rings. Among deep-sky objects this telescope captures stars up to 12 magnitude, globular clusters, nebulae and galaxies.
The telescope has an aperture of f/12.7, which is perfectly suited for most astronomical observations. Maximum useful magnification of 204x and high resolution will provide good quality, sharp images.

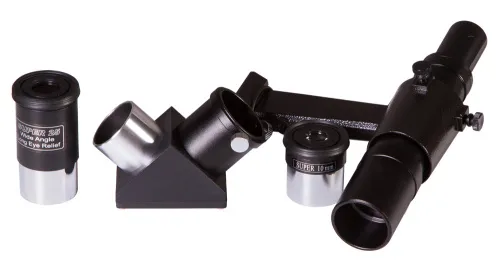

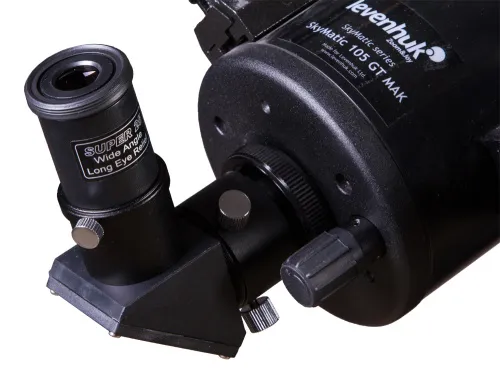

Two achromatic eyepieces SUPER 10 and SUPER 25 with a 31.75-millimeter (1.25-inch) diameter are included in the package and serve as powerful image correction tools. The optics used in the eyepiece are glass with a special coating. Field of view is 50–52 degrees.
The telescope comes with an azimuth AZ 114 GT SynScan computer-guided mount. Thanks to the GoTo function, the telescope is capable of capturing any astronomical object with its coordinates stored in the microprocessor memory with incredible accuracy. This computer system will provide automatic guidance to more than 42,900 celestial objects. SkyMatic GoTo mounts are compatible with an external 12V battery pack.
The kit includes:
- Levenhuk SkyMatic 105 GT MAK Telescope
- Eyepieces: 10mm and 25mm
- Diagonal prism
- Optical finder scope
- GoTo mount with the SynScan AZ system
- Tripod with an accessory tray
- Hand controller
- Battery compartment
- Set of connecting cables
- Tools for assembly
- Compass
- User manual and lifetime warranty
Astrophotos of the Moon and Saturn taken with the Levenhuk SkyMatic 105 GT MAK telescope and the Levenhuk T310 NG digital camera by Joel Sawaski:
Product ID | 18116 |
Brand | Levenhuk, Inc., USA |
Warranty | lifetime |
EAN | 5905555002125 |
Package size (LxWxH) | 43x87x26 cm |
Shipping Weight | 10 kg |
Optical design | catadioptric |
Optical scheme | Maksutov-Cassegrain |
Optics material | optical glass |
Optics coating | standard |
Primary mirror diameter (aperture), mm | 102 |
Focal length, mm | 1300 |
Highest practical power, x | 204 |
Aperture ratio | f/12.7 |
Resolution threshold, arcseconds | 1.3 |
Limiting stellar magnitude | 12 |
Eyepieces | SUPER 10mm (130x), SUPER 25mm (52x) |
Eyepiece barrel diameter, in | 1.25 |
Finderscope | optical, 6x30 |
Focuser | 1.25", rack & pinion |
Tripod | steel |
Tripod height (adjustable), mm | 630–1150 |
Accessory tray | ✓ |
Telescope control | autoguide |
Mount | alt-azimuth |
Drive | DC servo drives |
Tracking rate | sidereal, Lunar, Solar |
Positioning accuracy | up to 10 |
Tracking mode | along two axes |
System requirements | OS Windows 95/98/2000/XP/Vista/7/8/10; connecting a USB adapter to a computer via serial port (RS-232) |
Guiding system alignment | one bright star, two stars |
Hand controller | SynScan AZ operating and autoguiding system |
Objects database | 42,900 objects |
Power supply | 11–15V, 1A DC |
User level | experienced users |
Assembly and installation difficulty level | easy |
Observed object | deep-sky objects, planets of the Solar System |
