Two-lens apochromatic refractor with extra-low dispersion optics. Aperture: 80mm. Focal length: 500mm

Refractor
Optical design
80
Aperture – the diameter of the light-collecting lens or mirror that the telescope uses to collect light
500
Focal length – the distance from the primary lens or mirror to the point at which the light is focused
Availability

Product ID 35002
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555002521
Package size (LxWxH) 58x38x23 cm
Shipping Weight 7 kg
Description

The Levenhuk Ra R80 ED Doublet Carbon OTA is an 80mm short-focus apochromatic refractor with extra-low dispersion optics. It features a high aperture and wide field of view, but its main advantage is that it effectively reduces chromatism and, therefore, it transmits a very clear image. Due to fully multi-coated optics, the telescope renders highly contrast and bright images. This optical tube is a great choice for visual observations and astrophotography.

The body is made of carbon fiber that is lighter than aluminum. What's more, the OTA's thermo stabilization is faster, as its body doesn't change inside due to temperature changes, and only the optics and the air inside should "cool down". This allows you to start observing faster as well as the quick-release thumbscrew. The OTA features a 2" dual-speed Crayford focuser. It provides smooth sharpness adjustment, no backlash, and holds even heavy optical accessories securely.

The Levenhuk Ra R80 ED Doublet Carbon OTA is well suited for use in the countryside due to its compact size, and light weight as well as being mobile and easy to carry. In addition, the kit includes robust aluminum case.

Please note: Mount, tripod, and optical accessories are not included.

Features:

  • Short-focus apochromatic refractor
  • Fully multi-coated optics made of ED glass
  • Minimum chromatic distortion, high contrast, and wide field of view

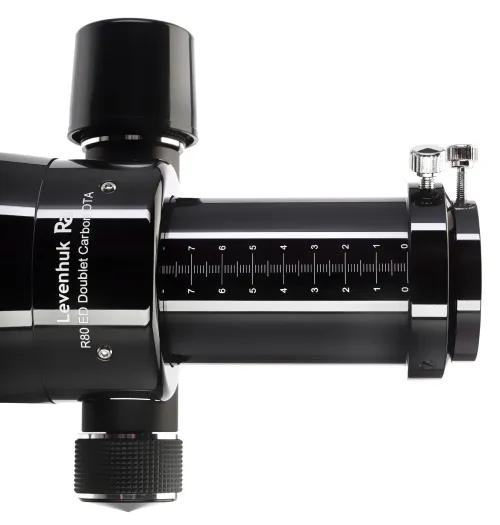

  • Dual-speed Crayford focuser for precise focus adjustments
  • Carbon fiber body - fast temperature stabilization and low weight
  • Compatible with 2'' accessories

The kit includes:

  • Telescope optical tube
  • Cleaning wipe

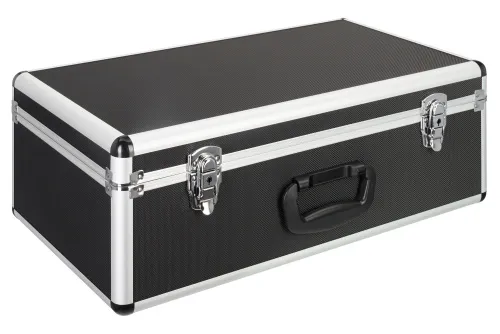

  • Aluminum case
  • Protective caps
  • User manual and lifetime warranty
Specifications
Product ID 35002
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555002521
Package size (LxWxH) 58x38x23 cm
Shipping Weight 7 kg
Optical design refractor
Optical scheme apochromat
Optics material ED
Optics coating fully multi-coated
Objective lens diameter (aperture), mm 80
Focal length, mm 500
Highest practical power, x 160
Aperture ratio f/6.25
Resolution threshold, arcseconds 1.45
Limiting stellar magnitude 11.62
Focuser 2", Crayford, dual-speed
Telescope control manual
Optical tube mounting mode quick-release 1/4" thumbscrew
User level experienced users, professionals
Assembly and installation difficulty level easy
Observed object planets of the Solar System
Pouch/case/bag in set case
