Two-lens apochromatic refractor with extra-low dispersion optics. Aperture: 66mm. Focal length: 400mm

Refractor
Optical design
66
Aperture – the diameter of the light-collecting lens (refractors and catadioptric) or mirror (reflectors) that the telescope uses to collect light
400
Focal length – the distance from the primary lens or mirror to the point at which the light is focused
Availability

Product ID 44737
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555002538
Package size (LxWxH) 41x30x21
Shipping Weight 4.31
Description

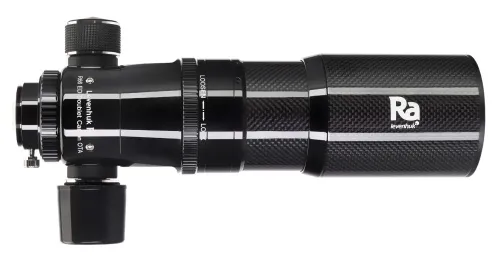

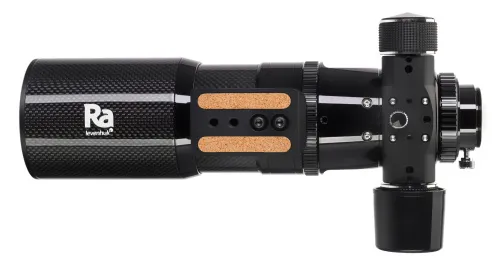

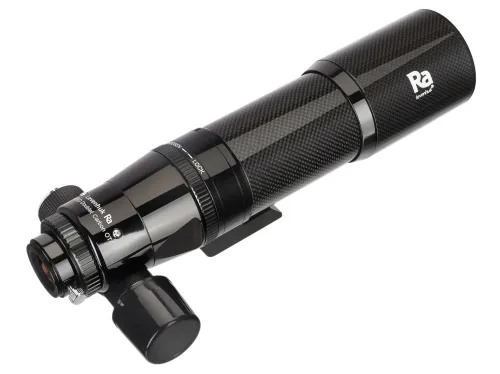

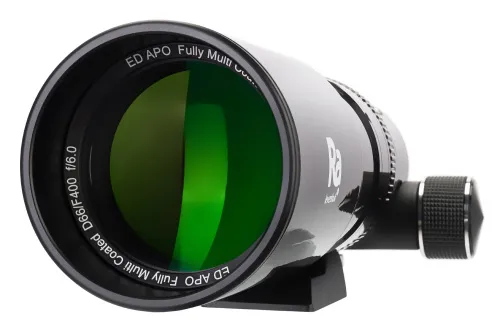

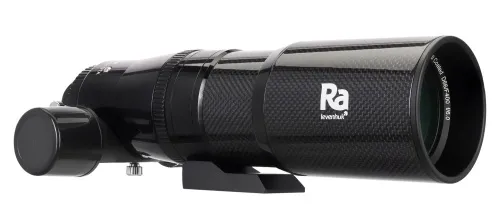

The Levenhuk Ra R66 ED Doublet Carbon OTA apochromatic refractor features a carbon fiber body so that it is lighter and more compact than many other telescopes, so it is convenient for field use. The telescope renders a clear and contrasting image, provides a good overview, and is excellent in astrophotography. You can easily take unforgettable photos of the night sky with this Optical Tube Assembly (OTA), but it is also well suited for visual observations. With this OTA, you can observe all of the objects from the Messier catalogue, many nebulae and star clusters as well as some planets of the solar system.

The optics are made of extra-low dispersion glass so that the picture lacks chromatic distortion, which most refractors, including achromatic ones, are subject to. They effectively reduce chromatic aberrations, especially secondary and spherochromatic ones. As a result, the picture is of excellent quality even at high magnification. The built in dual-speed Crayford focuser allows for precise and smooth focus adjustment.

As the optics are housed in a carbon fiber body, temperature stabilization is twice as fast. This is due to the fact that carbon does not change its properties due to temperature changes and, therefore, to start observing, it is enough to wait until the optics "cool down". The optical tube can be installed on most modern mounts. The kit includes a convenient and robust aluminum case for transporting and storing the telescope.

Please note: Mount, tripod, and optical accessories are not included.

Features:

  • Apochromatic refractor with fully multi-coated ED optics
  • Minimum chromatic distortion, wide field of view, and high contrast
  • Excellent choice for astrophotography and good for visual observations

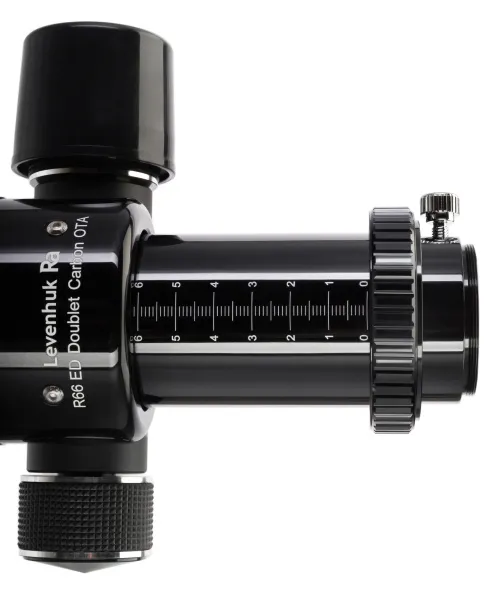

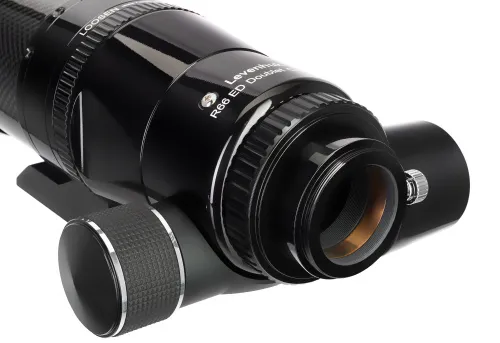

  • Dual-speed Crayford focuser for precise and smooth focus adjustments
  • Carbon fiber body for faster temperature stabilization of the optical tube

The kit includes:

  • Telescope optical tube
  • Cleaning wipe

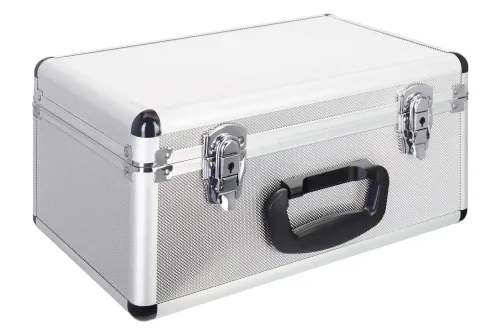

  • Aluminum case
  • Protective caps
  • User manual and lifetime warranty
Specifications
Product ID 44737
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555002538
Package size (LxWxH) 41x30x21
Shipping Weight 4.31
Optical design refractor
Optical scheme apochromat
Optics material ED
Optics coating fully multi-coated
Objective lens diameter (aperture), mm 66
Focal length, mm 400
Highest practical power, x 132
Aperture ratio f/6
Resolution threshold, arcseconds 1.75
Limiting stellar magnitude 11.2
Focuser 1.25", Crayford, dual-speed
Telescope control manual
Optical tube mounting mode quick-release 1/4" thumbscrew
User level experienced users, professionals
Assembly and installation difficulty level easy
Observed object planets of the Solar System
Pouch/case/bag in set case
