Newtonian telescope. Aperture: 153 mm. Focal length: 1215 mm

Reflector
Optical design
153
Aperture – the diameter of the light-collecting lens (refractors and catadioptric) or mirror (reflectors) that the telescope uses to collect light
1215
Focal length – the distance from the primary lens or mirror to the point at which the light is focused
Availability

Product ID 61704
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555002637
Package size (LxWxH) 127x41x36
Shipping Weight 23
Description

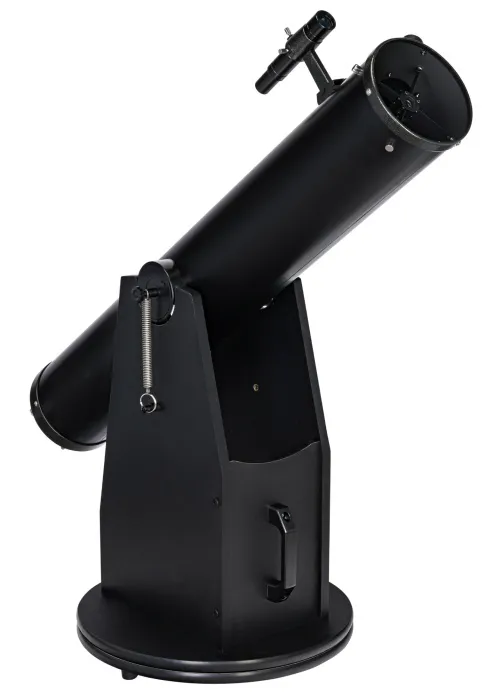

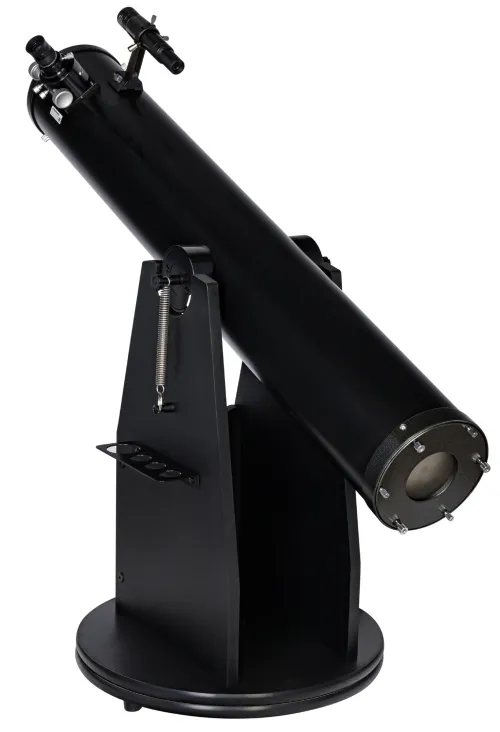

The Levenhuk Ra 150N Dobson telescope is an easy to use optical instrument for observing deep sky objects, including bright and faint galaxies, star clusters, and nebulae. Some of them can be observed in detail. You can also study the planets of the solar system. Up to Saturn, they are clearly visible. The telescope is suitable for beginners as well as experienced users. Due to its high image quality and ergonomic design, it will not disappoint even the most demanding astronomer.

The optics include an aluminum coated parabolic mirror

The optical design of the telescope is based on the primary mirror with a 153mm diameter. Since it features a paraboloid shape, even at the maximum useful magnification, optical distortions do not appear in the picture. The primary mirror has an aluminum coating with a reflectivity index of 92~96%. This produces high-contrast and vivid images of objects in the night sky. The Crayford Focuser enables you to obtain a maximally sharp image in any conditions.

Quick start kit

The kit includes two symmetrical eyepieces: 9mm and 25mm. They provide a good view and allow you to quickly start studying the starry sky. The search for astronomical objects is carried out using a 6x30mm optical finder.

Features:

  • Parabolic primary mirror with a 153mm diameter
  • Special aluminum coating with a reflectivity index of 92~96%
  • Easy-to-use Dobsonian mount

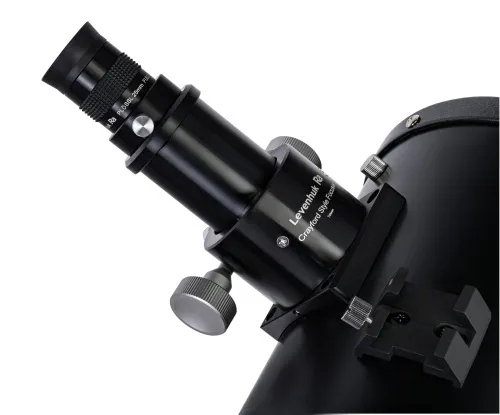

  • Crayford focuser for precise focus adjustments

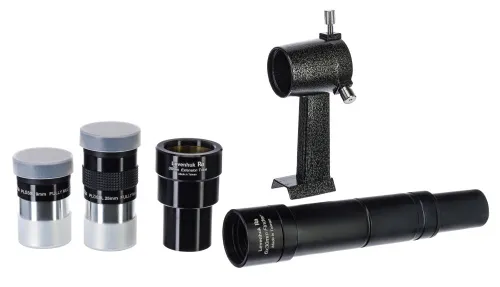

The kit includes:

  • Telescope optical tube
  • Dobsonian mount
  • Plössl 9mm eyepiece
  • Plössl 25mm eyepiece

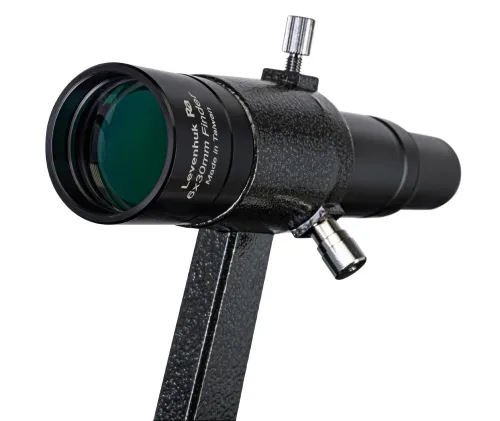

  • Finder 6x30mm
  • Finderscope base
  • User manual and lifetime warranty
Specifications
Product ID 61704
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555002637
Package size (LxWxH) 127x41x36
Shipping Weight 23
Optical design reflector
Optical scheme Newtonian
Optics material BK-7
Optics coating aluminum
Primary mirror diameter (aperture), mm 153
Secondary mirror obstruction, mm 31
Lens (mirror) shape parabolic
Focal length, mm 1215
Highest practical power, x 306
Aperture ratio f/8
Resolution threshold, arcseconds 0.69
Limiting stellar magnitude 14.2
Eyepieces Plössl 9mm (135х), Plössl 25mm (48х)
Eyepiece barrel diameter, in 1.25
Objective lens obstruction: by area 9
Objective lens obstruction: by diameter 20
Finderscope optical, 6x30
Focuser 1.25", Crayford

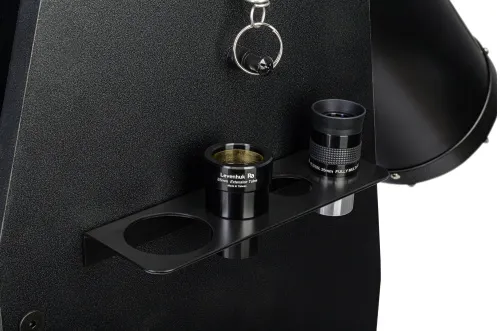

Accessory tray
Telescope control manual
Mount Dobsonian
Mount material wood
Operating temperature range,°C -5...+35
Optical tube material metal
User level experienced users
Assembly and installation difficulty level complicated
Observed object deep-sky objects
