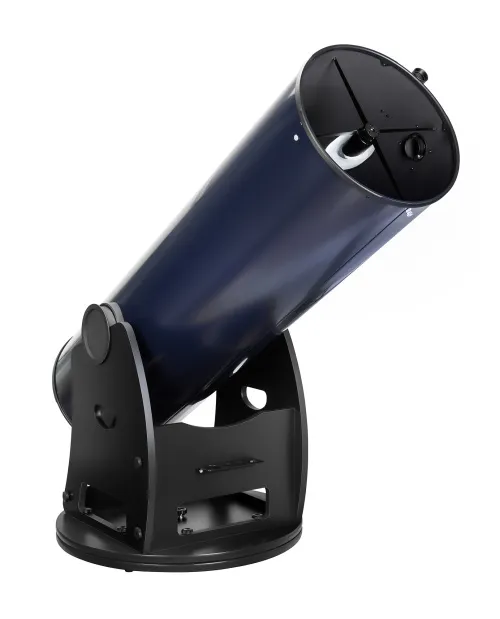

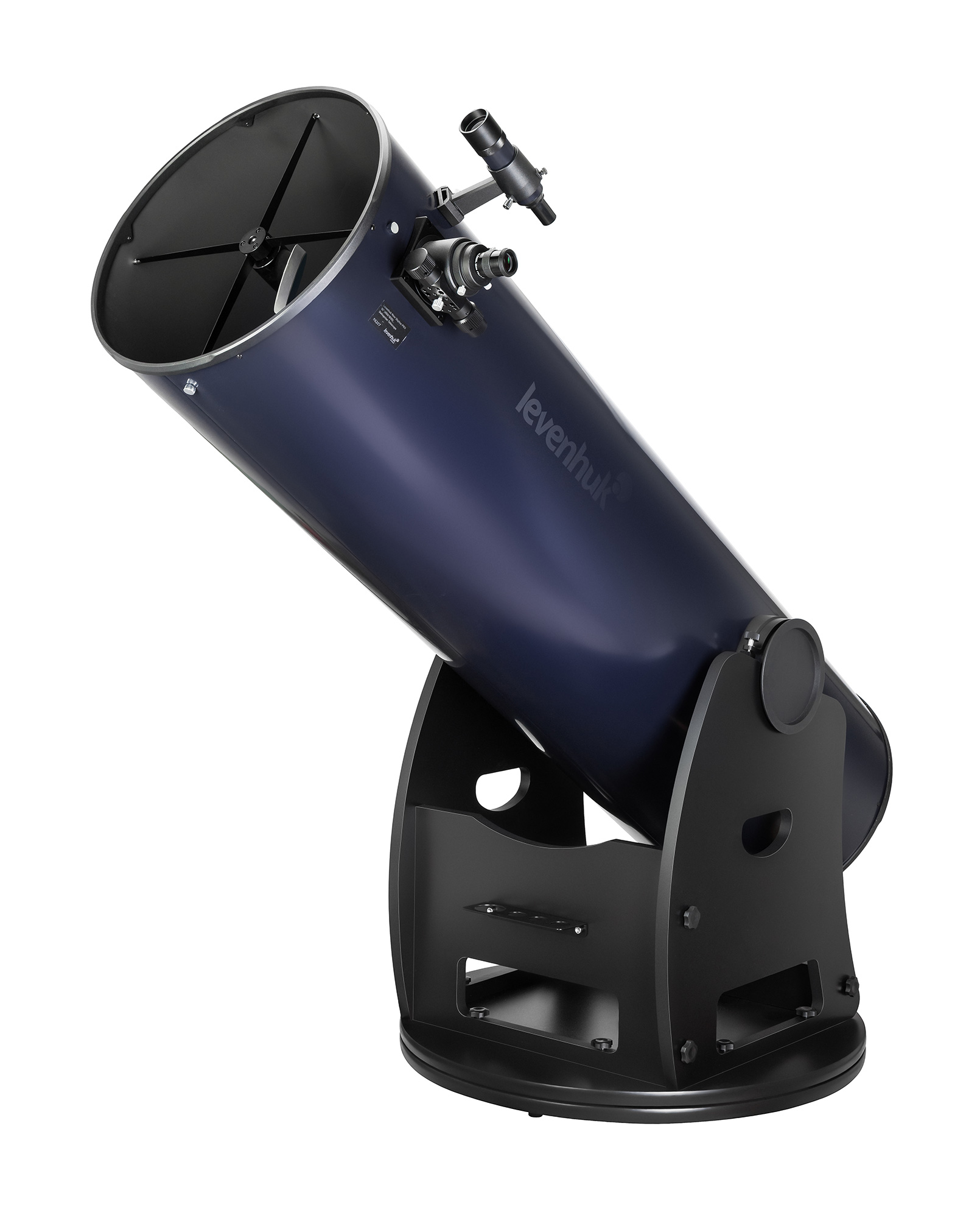

Levenhuk New Skyline PRO 16" (400/1830) Dobsonian Telescope

The price is valid only for the online store and may differ from the prices in retail stores.

Newtonian reflector on a Dobsonian mount. Aperture: 406mm. Focal length: 1830mm

Reflector
Optical design
406
Aperture – the diameter of the light-collecting lens or mirror that the telescope uses to collect light
1830
Focal length – the distance from the primary lens or mirror to the point at which the light is focused
Availability

Product ID 86287
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555027562
Package size (LxWxH) 183x90x53 cm
Shipping Weight 81.3 kg
Description

As the most powerful instrument in its series, the Levenhuk New Skyline PRO 16" Dobsonian is the master key to the secrets of deep space. Its 406mm aperture and 1830mm focal length enable you to explore our Solar System in detail and resolve fine structures in distant galaxies, nebulae, and star clusters. This telescope reveals the finest details of our celestial neighbors. On the Moon, it resolves craters, rilles, and ridges as small as 1–2km, especially near the terminator. You can discern spots and swirls within Jupiter’s cloud bands, intricate gaps in Saturn’s rings, and the maria, polar caps, and dust storms of Mars. The phases of Venus become distinct, and you can observe Uranus and Neptune as clear discs rather than mere points of light. Under good atmospheric conditions, you can see spiral structures and dust lanes in the largest galaxies, gas clouds and dark voids in nebulae, the stellar scatter of globular clusters, and double and multiple stars. The Levenhuk New Skyline PRO 16" captivates from the very first minute of observation.

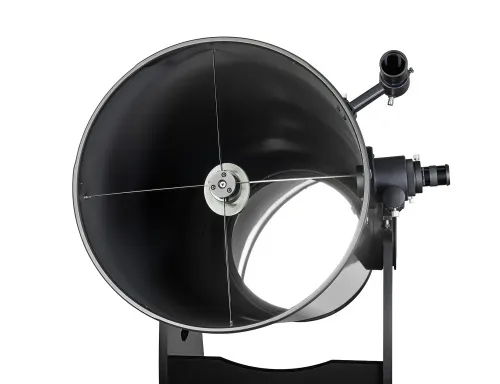

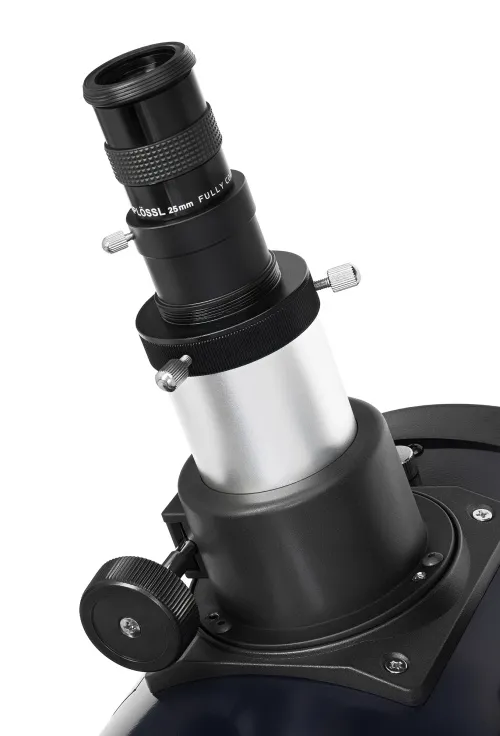

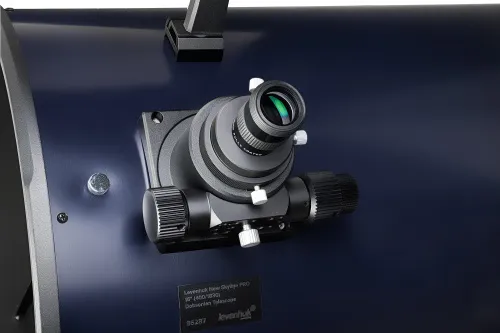

Its optical system is built around high-reflectivity (92–95%) primary and secondary mirrors as the core of its impressive performance. This high coefficient is achieved through a special aluminum coating. For clear, high-contrast views of planets at high power or to detect faint galaxies and nebulae, the telescope relies on two key principles: maximum light gathering and exact focus. With a broad-spectrum aluminum coating for ultraviolet to infrared, this instrument is versatile enough to study a diverse array of astronomical objects. The primary mirror of the Levenhuk New Skyline PRO 16" has a parabolic shape. This effectively compensates for spherical aberration and adds sharpness across the entire field of view. The telescope is equipped with a dual-speed 2" rack-and-pinion focuser. It includes a 1.25" adapter, giving you the freedom to choose the eyepieces that are best suited for your observing goals.

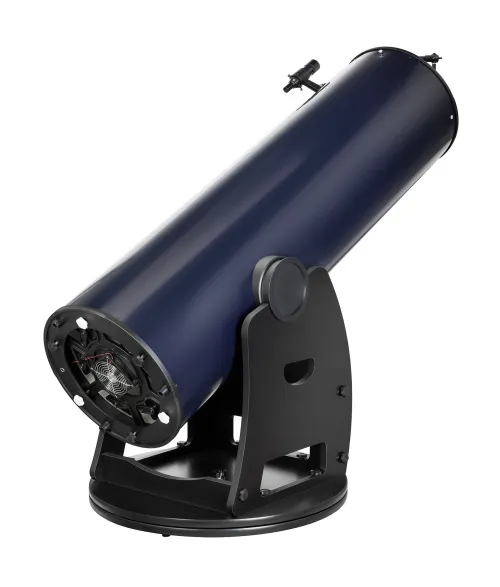

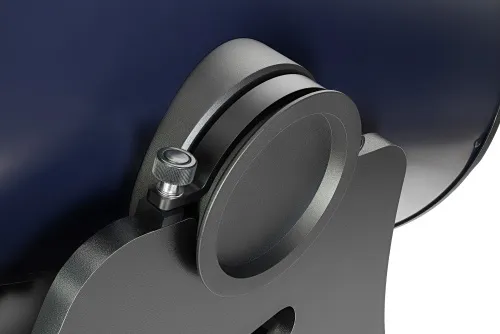

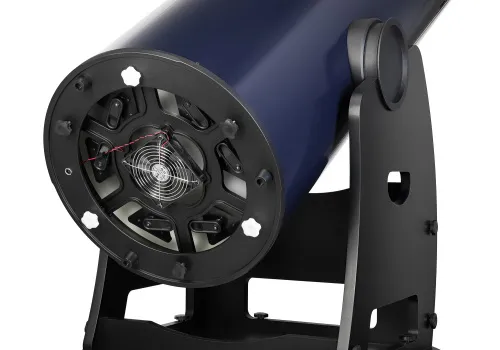

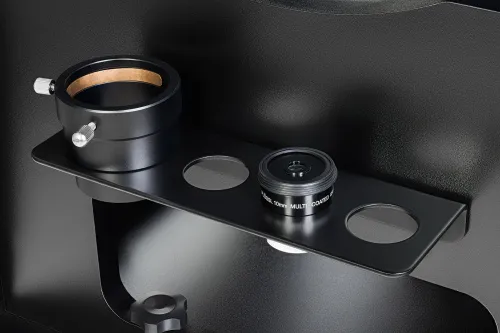

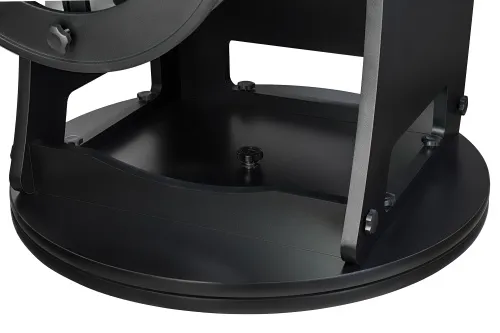

The optical tube assembly (OTA) weighs 36kg. It is mounted on a manually operated Dobsonian mount that is made of sturdy wood and weighs 29kg. This design makes the mount a reliable and stable platform that is capable of withstanding prolonged, intensive use. The package includes essential accessories: 10mm and 25mm Plössl eyepieces (1.25"), an 8x40 finderscope, and a primary mirror cooling fan. The fan is powered by 8 AA batteries (sold separately).

Key features:

  • Modern and powerful tool for professional astronomy
  • Impressive optical power: 406mm aperture and 1830mm focal length
  • Aluminum coating with 92–95% reflectivity on the primary and secondary mirrors
  • Dual-speed 2" rack-and-pinion focuser with a 1.25" adapter
  • Basic set of accessories included:
  • 2 Plössl eyepieces, 8x40 optical finderscope
  • Primary mirror cooling fan

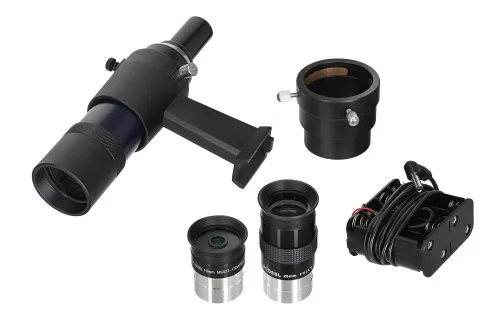

The kit includes:

  • Telescope optical tube
  • 10mm Plössl eyepiece (1.25")
  • 25mm Plössl eyepiece (1.25")
  • 8х40 optical finderscope
  • Primary mirror cooling fan
  • Dobsonian mount
  • User manual and warranty slip
Specifications
Product ID 86287
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555027562
Package size (LxWxH) 183x90x53 cm
Shipping Weight 81.3 kg
Optical design reflector
Optical scheme Newtonian
Optics material BK-7
Optics coating 92-95% reflectivity, aluminum
Primary mirror diameter (aperture), mm 406
Secondary mirror obstruction, mm 92
Lens (mirror) shape parabolic
Focal length, mm 1830
Highest practical power, x 800
Aperture ratio f/4.5
Resolution threshold, arcseconds 0.34
Focusing manual
Eyepieces Plössl 10mm (183x), Plössl 25 mm (73x)
Eyepiece barrel diameter, in 1.25
Barlow lens no

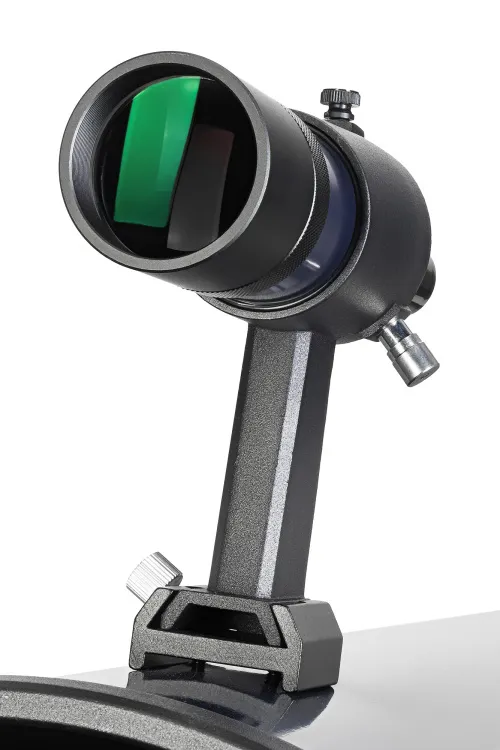

Finderscope optical, 8x40
Focuser 2" rack-and-pinion, dual-speed, includes 1.25" adapter
Telescope control manual
Mount Dobsonian
Mount material wood
Mount dimensions, mm 804x804x786
Mount weight, kg 29
Additional fan power supply: 8 AA batteries (not included), primary mirror cooling fan (included)
Operating temperature range, °C -5...+35
Optical tube material metal
Optical tube dimensions, mm 1705х490
Optical tube weight, kg 36
User level experienced users, professionals
Assembly and installation difficulty level easy
Observed object deep-sky objects
