Newtonian reflector. Aperture: 76mm. Focal length: 700mm

Reflector
Optical design
76
Aperture – the diameter of the light-collecting lens (refractors and catadioptric) or mirror (reflectors) that the telescope uses to collect light
700
Focal length – the distance from the primary lens or mirror to the point at which the light is focused
Availability

Product ID 77102
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555002439
Package size (LxWxH) 73x25x23 cm
Shipping Weight 4.56 kg
Description

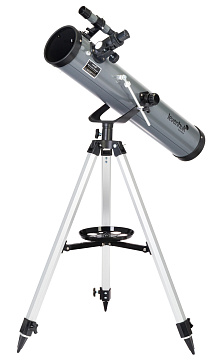

The Levenhuk Blitz 76 BASE telescope is a Newtonian reflector with a spherical primary mirror. This is an entry-level model, but it allows you to observe many objects of outer space and deep sky. You can study the Moon, earth-type planets, and binary stars as well as large globular and open clusters. Almost all objects of the Messier catalog are available for study but without a high degree of detail.

Its optics are made of glass with an anti-reflective coating. As a result, the image transmitted by the telescope is sharp and clear. You can observe with good clarity up to 152x magnification. Due to three eyepieces with a different focal length and a 2x Barlow lens in the kit, you can work with a large number of multiplicities.

With the fork azimuth mount, using the telescope is as easy as a spotting scope. To set the telescope on the selected object, it is enough just to rotate the optical tube in the desired direction – left, right, up, or down. The mount features a microscrew on the vertical axis, which allows you to set the telescope accurately and smoothly. The aluminum tripod with adjustable height features an accessory tray.

Features:

  • Classical Newtonian reflector for deep sky observations
  • Fork azimuth mount
  • Microscrew on the vertical axis for more accurate setting
  • High-quality optics and easy operation – ideal for a beginner
  • All of the required accessories for an amateur astronomer are included

The kit includes:

  • Telescope optical tube
  • 4mm eyepiece
  • 12.5mm eyepiece
  • 20mm eyepiece
  • 2x Barlow lens
  • Finder 5x24
  • Azimuth mount
  • Aluminum tripod with an accessory tray
  • User manual and lifetime warranty
Specifications
Product ID 77102
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555002439
Package size (LxWxH) 73x25x23 cm
Shipping Weight 4.56 kg
Optical design reflector
Optical scheme Newtonian
Optics material optical glass
Optics coating anti-reflective
Primary mirror diameter (aperture), mm 76
Lens (mirror) shape spherical
Focal length, mm 700
Highest practical power, x 152
Aperture ratio f/9
Resolution threshold, arcseconds 9.0
Limiting stellar magnitude 11.5
Eyepieces SR4mm (175х), H12.5mm (56х), H20mm (35x)
Eyepiece barrel diameter, in 0.965
Barlow lens 2x
Finderscope optical, 5x24
Focuser rack & pinion
Tripod aluminum
Tripod height (adjustable), mm 600–1000
Accessory tray
Telescope control manual
Mount alt-azimuth
Optical tube mounting mode screws
Optical tube material metal
User level elementary, beginners
Assembly and installation difficulty level extremely simple
Observed object deep-sky objects
