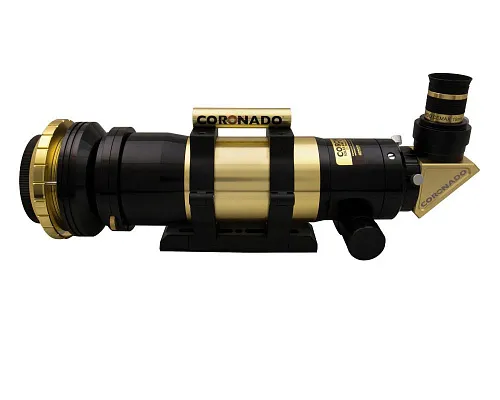

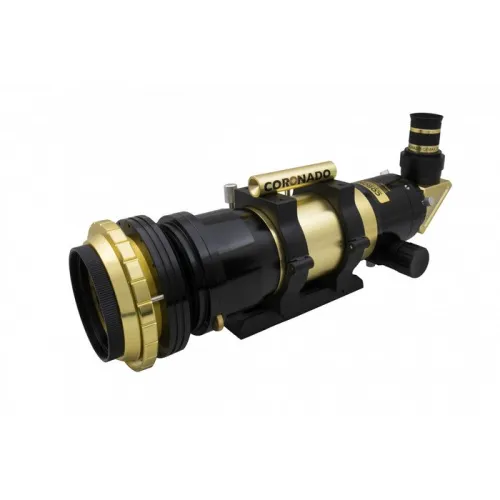

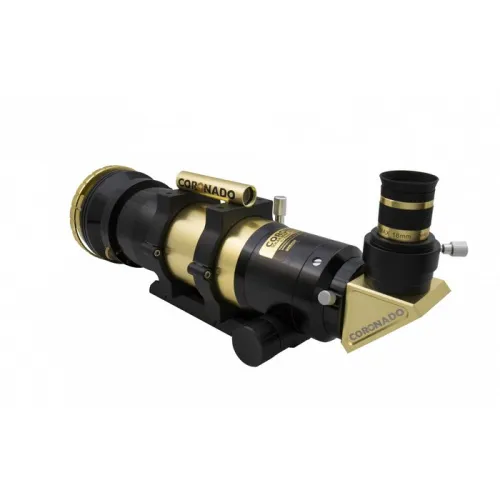

Coronado SolarMax III 70mm Solar Telescope with RichView System and BF15

The price is valid only for the online store and may differ from the prices in retail stores.

Solar telescope. Objective lens diameter: 70mm. Focal length: 400mm

Refractor
Optical design
70
Aperture – the diameter of the light-collecting lens or mirror that the telescope uses to collect light
400
Focal length – the distance from the primary lens or mirror to the point at which the light is focused
Availability

Product ID 71932
Brand Meade Instruments Corp.
Warranty 5 years
EAN 0643824210929
Package size (LxWxH) 71x25x25 cm
Shipping Weight 4.99 kg
Description

The SolarMax III is a 70mm F/5.7 refractor equipped with 60mm external hydrogen-alpha (Ha) filters.

The SolarMax III 70mm has a new two-speed rack & pinion focuser which creates a more user-friendly interaction with the telescope. The two-speed, 2" focuser has both coarse and fine focus controls allowing the user to get a more precise focus, critical for both solar imaging and visual observing.

Additionally, the telescope includes only external "True" Ha etalon filters giving higher contrast views and sharper features compared with models using smaller internal Ha etalon designs.

The SolarMax III 70mm also includes Coronado’s patented RichView tuning allowing direct tuning of the primary etalon filter. The patented RichView tuning technology provides additional tuning range and an overall better way of adjusting the filters bandpass. No other commercially available Ha telescope can provide the tuning range and accuracy of the new SolarMax III telescope. Now you can tune for the highest contrast views of your favorite solar features without sacrificing image quality.

The new Coronado SolarMax III 70mm telescope with enhanced rack & pinion focuser and large external etalon is now the perfect way to view the Sun! It comes with an included 18mm Cemax eyepiece, Sol Ranger Solar finder, Vixen-style dovetail mounting rail, and an all-new black and gold aluminum hard carry case.

Features:

  • Fully Integrated 70mm f/5.7 H-alpha telescope – 400mm focal length
  • Includes Coronado’s patented RichView tuning system
  • Sol Ranger viewfinder
  • Black and gold hard carry case
  • 15mm Blocking Filter
  • <0.7Å bandpass
Specifications
Product ID 71932
Brand Meade Instruments Corp.
Warranty 5 years
EAN 0643824210929
Package size (LxWxH) 71x25x25 cm
Shipping Weight 4.99 kg
Optical design refractor
Optics coating fully multi-coated
Objective lens diameter (aperture), mm 70
Focal length, mm 400
Aperture ratio f/5.7
Eyepieces Coronado CEMAX 18mm, 1.25''
Finderscope built-in Sol Ranger
Focuser 2'' rack & pinion with 10:1 fine adjustment
Pouch/case/bag in set case
