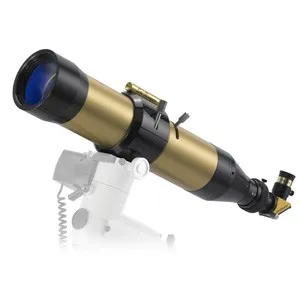

Coronado SolarMax II 90mm Solar Telescope with RichView System and BF15

The price is valid only for the online store and may differ from the prices in retail stores.

Solar telescope. Objective lens diameter: 90mm. Focal length: 800mm

Refractor
Optical design
90
Aperture – the diameter of the light-collecting lens or mirror that the telescope uses to collect light
800
Focal length – the distance from the primary lens or mirror to the point at which the light is focused
Availability

Product ID 71927
Brand Meade Instruments Corp.
Warranty 5 years
EAN 0643824210875
Package size (LxWxH) 101x30x30 cm
Shipping Weight 15.44 kg
Description

Coronado by Meade SolarMax II 90mm Solar Telescope with RichView system. Includes 15mm Blocking Filter. The incredible Coronado SolarMax 90 series telescopes are the largest H-alpha (HA) telescope ever to be mass-produced and are now available with the patented RichView tuning system. This awesome solar observatory features a sub .7Å bandpass.

Used around the world by serious solar enthusiasts and professional research facilities alike for observation of surface detail and prominences on the Sun in hydrogen-alpha light. Powerful but very portable, this high resolution Solar Telescope offers dedicated visual observation of the Sun as well as high quality imaging.

The new Meade Coronado II represents a breakthrough in solar observing with the new and revolutionary RichView tuning assembly. This patented system allows direct tuning of the primary filter etalon. No other commercially available Ha telescope can provide the tuning range and accuracy of the SolarMax II. Now you can tune for the highest contrast views of active regions, flares, filaments, and other surface detail, or quickly and easily re-tune for prominences on the solar limb.

The stunning bright red views through a Coronado Ha telescope display astounding surface and limb detail especially when the Sun is in an active phase.

This very high quality 90mm personal solar observatory features an 800mm focal length, f/8.8 focal ratio. Includes mounting rings, Sol Ranger finder scope, Cemax eyepieces, and travel case.

Features:

  • Fully integrated 90mm f/8.8 H-alpha telescope – 800mm focal length
  • 15mm blocking filter
  • RichView tuning system
  • 0.7Å bandpass
  • Sol Ranger finder scope
  • Comes with hard carry case
Specifications
Product ID 71927
Brand Meade Instruments Corp.
Warranty 5 years
EAN 0643824210875
Package size (LxWxH) 101x30x30 cm
Shipping Weight 15.44 kg
Optical design refractor
Optics coating fully multi-coated
Objective lens diameter (aperture), mm 90
Focal length, mm 800
Aperture ratio f/8.8
Eyepieces 25mm, Coronado CEMAX 12mm, 18mm
Barlow lens 2x
Finderscope built-in Sol Ranger
Additional thermal stability: < 0.005Å, total blocking > 10⁻⁵ from UVB wavelengths to IR, RichView tuning system, bandwidth: < 0.7Å, 15mm blocking filter
Pouch/case/bag in set case
