Meade RangeView ED 20–60x80 Spotting Scope

Meade RangeView ED 20–60x80 Spotting Scope

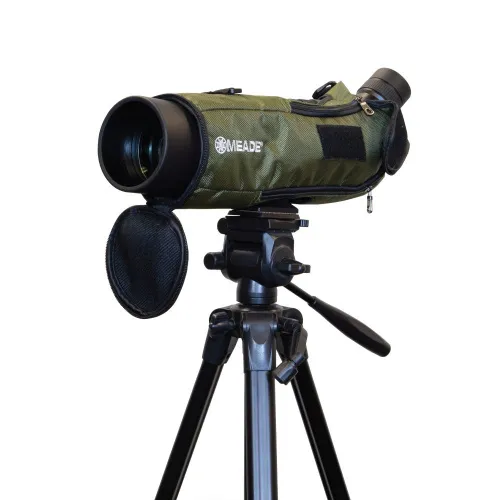

photo Meade RangeView ED 20–60x80 Spotting Scope
photo Meade RangeView ED 20–60x80 Spotting Scope
photo Meade RangeView ED 20–60x80 Spotting Scope
The price is valid only for the online store and may differ from the prices in retail stores.

Magnification: 20–60x. Objective lens diameter: 80mm

20 — 60
Low magnification provides a wider field of view, high magnification allows a detailed view of very distant objects
80
Objective lens diameter is one of the most important specifications of the device that determines its aperture
Hunting and sports, for stationary observations
Purpose of use
Availability
Product ID 75647
Brand Meade Instruments Corp.
Warranty 20 years
EAN 0709942998573
Package size (LxWxH) 18x39x9 cm
Shipping Weight 1.86 kg
description
specifications
downloads
accessories
Description

Meade’s RangeView ED spotting scopes are a premium choice for your outdoor experience. These scopes are phase & dielectric coated and are designed with the highest-level of performance, offering exceptional high-resolution views through quality extra-low dispersion (ED) optics. These durable spotting scopes are nitrogen purged making them waterproof and dustproof.

The RangeView ED series are available in 65mm and 80mm apertures and come equipped with a sliding lens shade to improve contrast and variable zoom, while eliminating the effects of color fringing and degradation of resolution. Also included is a padded carry bag for the scope and all accessories – great for on-the-go exploring and keeping you ready for any adventure ahead.

Whether you find yourself bird watching or exploring the beauties of nature, the RangeView ED series spotting scopes will bring you up close and detailed images of wildlife and more!

Features:

  • Premium extra-low dispersion (ED) glass
  • Porro prisms with dielectric
  • 2-speed focuser for coarse & fine focusing control
  • Adjustable mounting ring: rotating tripod ring provides various viewing angles
  • Adaptable to a tripod

The kit includes:

  • Rugged Meade carrying bag
  • Comfortable padded strap
  • Dust cover
  • Cleaning cloth
  • User manual and warranty
Specifications
Product ID 75647
Brand Meade Instruments Corp.
Warranty 20 years
EAN 0709942998573
Package size (LxWxH) 18x39x9 cm
Shipping Weight 1.86 kg
With zoom ✓
Magnification, x 20 — 60
Objective lens diameter (aperture), mm 80
Prism type Porro
Optics material BK-7
Lens coating fully multi-coated
Prisms coating dielectric
Focusing node double (coarse and fine focusing)
Exit pupil diameter, mm 4 — 1.33
Eye relief, mm 20 — 18
Close focus, m 5.5
Body filling nitrogen
Waterproof ✓
Moisture resistance ✓
Hermetically sealed design ✓
Built-in shade ✓
Application hunting and sports, for stationary observations
Pouch/case/bag in set pouch
References
and downloads
User manual: Meade RangeView ED spotting scopes (pdf) EN
(PDF, 15.11 Mb)
