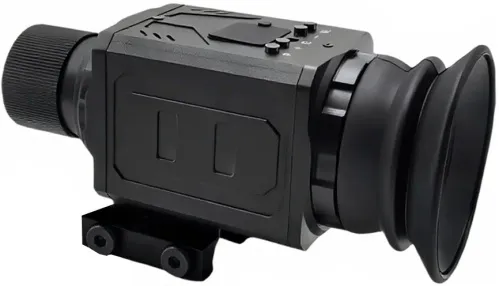

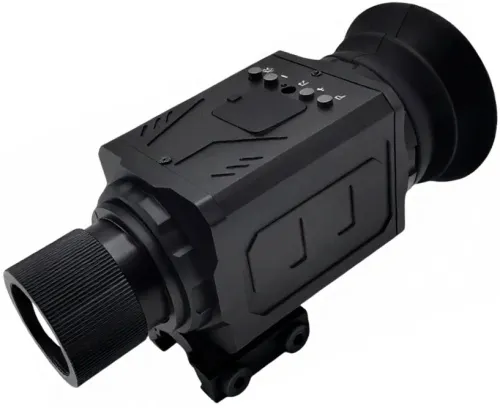

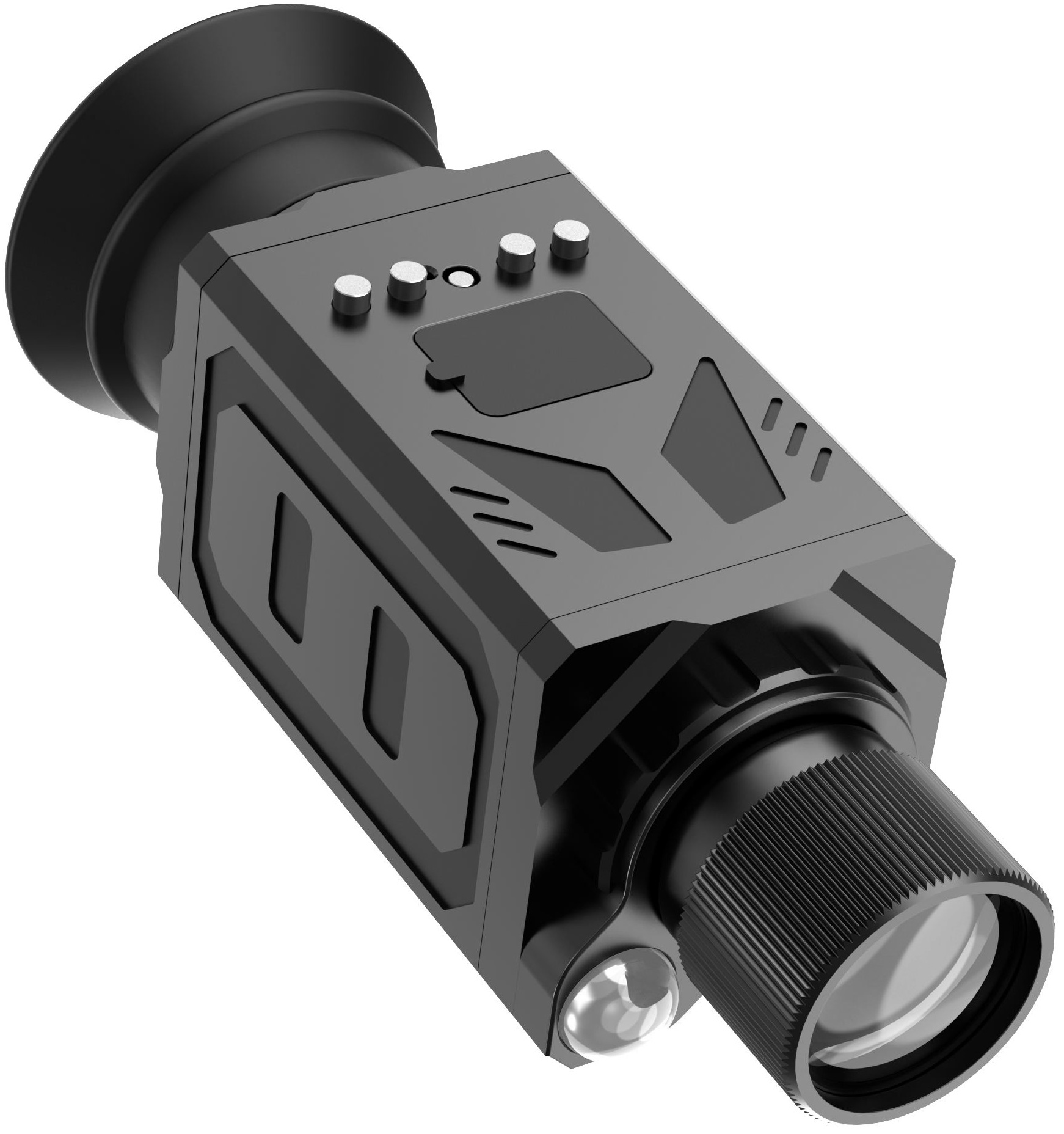

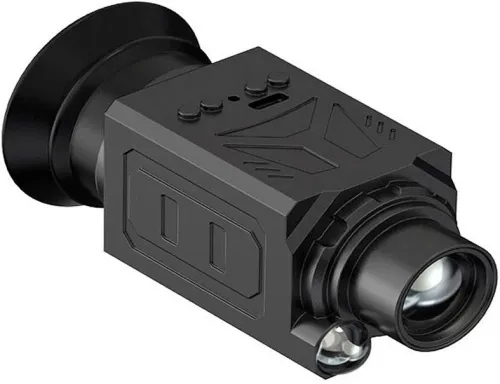

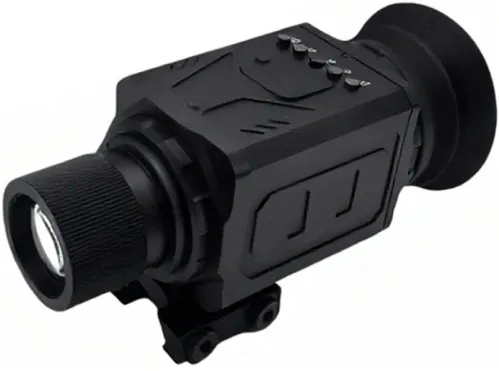

Levenhuk Atom Digital DNM70 Night Vision Monocular
For day and night observation. With a recorder. Magnification: 7x (optical), 1/2/3/4x (digital). Lens diameter: 30mm
| Product ID | 86170 |
| Brand | Levenhuk, Inc., USA |
| Warranty | lifetime |
| EAN | 5905555027135 |
| Package size (LxWxH) | 7x10x16 cm |
| Shipping Weight | 0.375 kg |
The Levenhuk Atom Digital DNM70 monocular is a reliable night vision device that is designed for observation in low-light conditions. With its 7x optical magnification and an additional digital zoom of 1x, 2x, 3x, or 4x, it allows you to observe objects in detail at distances of up to 300 meters at night as well as unrestricted visibility during the day. Advanced optical glass delivers bright and sharp images. A wide 20° angular field of view and a close focus of 5 meters enable the quick targeting and tracking of objects in forests, open areas, and urban environments.
Color CMOS sensor and IPS display
The image is produced by a color CMOS sensor and displayed on a 1.54-inch IPS screen with a resolution of 320x320 pixels. The device automatically switches modes based on ambient light: color image by day and monochrome by night. In darkness, a built-in 850nm IR illuminator activates to provide a stable image.
Rugged body and up to 4.5 hours of battery life
The body is made of a durable aluminum alloy with a rubberized coating, making the device resistant to shocks, vibrations, and temperature fluctuations (operating range: –30°C to +55°C). The monocular is powered by two removable 3.7V, 850mAh lithium-polymer batteries. Depending on the usage intensity and illumination settings, a single charge provides between 1.5 and 4.5 hours of operation. The device is charged via a USB port (the required cable is included). The screen and device automatically turn off after periods of inactivity.
Built-in Full HD recorder
The built-in recorder allows you to save video in AVI format at Full HD resolution (1920x1080 pixels). Videos are stored on a microSD card (up to 64GB, sold separately). The monocular includes an adapter for mounting on a rail. Being versatile enough for everything from nighttime wildlife watching to tactical operations and hunting, this device is ready for any challenge. Its compact size makes it easy to take on any trip.
Please note: The IR illumination may be detected by other cameras or electronic devices.
Key features:
- Detection range of up to 300 meters in darkness and unlimited in daylight
- Automatic switching between color mode by day and monochrome by night
- 7x optical magnification plus digital zoom (1x, 2x, 3x, 4x)
- Color CMOS sensor and 1.54" IPS display with 850nm IR illuminator
- Full HD video recording to microSD cards up to 64GB
- Durable aluminum alloy body with rubberized coating and a wide operating temperature range
- 850mAh battery provides up to 4.5 hours of continuous operation
- Automatic screen and power shutoff
The kit includes:
- Night vision device
- Hex key, 2 pcs.

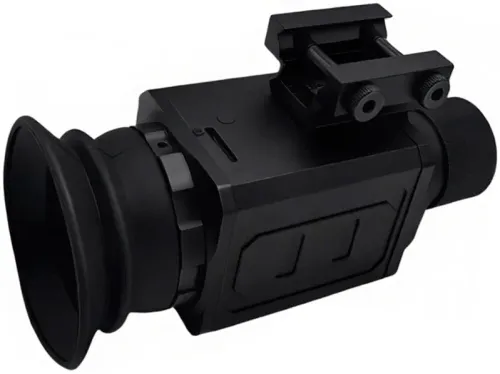

- Rail adapter
- USB Type-C cable
- User manual and warranty card
| Product ID | 86170 |
| Brand | Levenhuk, Inc., USA |
| Warranty | lifetime |
| EAN | 5905555027135 |
| Package size (LxWxH) | 7x10x16 cm |
| Shipping Weight | 0.375 kg |
| Type of night vision device | monocular |
| Magnification, x | 7 |
| Objective lens diameter (aperture), mm | 30 |
| Angular field of view, ° | 20 |
| Close focus, m | 5 |
| Detection range, m | 250–300 (in total darkness); 3~∞ (at dusk and daylight) |
| Image intensifier | digital |
| CCD, CCIR matrix | CMOS color |
| Display resolution, px | 320x320 |
| Display diagonal, inch | 1.54 |
| Display | IPS |
| Built-in recorder | ✓ |
| Video format | *.avi |
| Video resolution, px | 1920x1080 (Full HD) |
| Memory | microSD up to 64GB, Class 10 (not included) |
| IR illuminator | ✓ |
| Moisture resistance | ✓ |
| Degree of moisture/water protection | IP65, full protection against dust and jets of water |
| Wavelength, nm | 850 |
| Power supply | 2 pcs built-in 850mAh 3.7V Li-Ion polymer batteries |
| Battery life, h | 1.5 — 4.5 |
| Optics material | optical glass |
| Body | aluminum alloy, rubber |
| Operating temperature range, °C | -30...+55 |
| Additional | USB Type-C port, automatic screen and power shutoff |
| With zoom | ✓ |
