Professional fluorescence microscope. Semi-apochromatic infinity-corrected optics

Trinocular
The microscope head is a core element of the microscope that you look through to see a magnified sample
40 — 400
How much the size of a sample increases when you observe it through a microscope
Laboratory/medical
Application and use of the microscope
Availability

Product ID 73383
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555005102
Package size (LxWxH) 70x50x42
Shipping Weight 19.22
Description

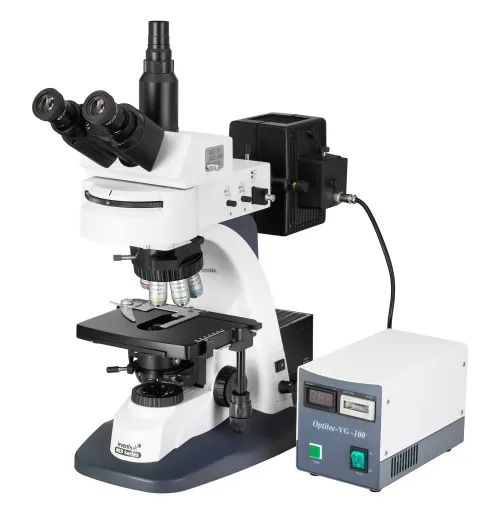

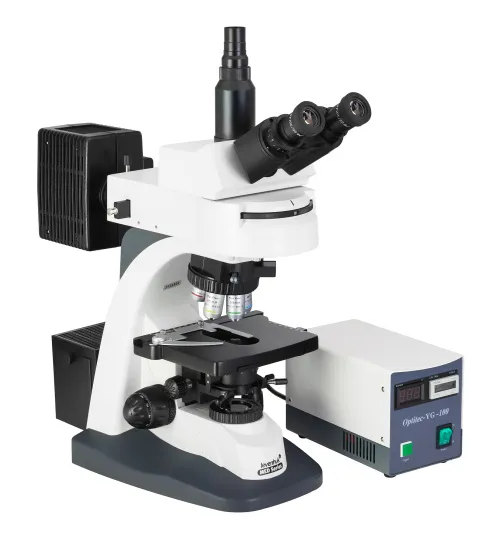

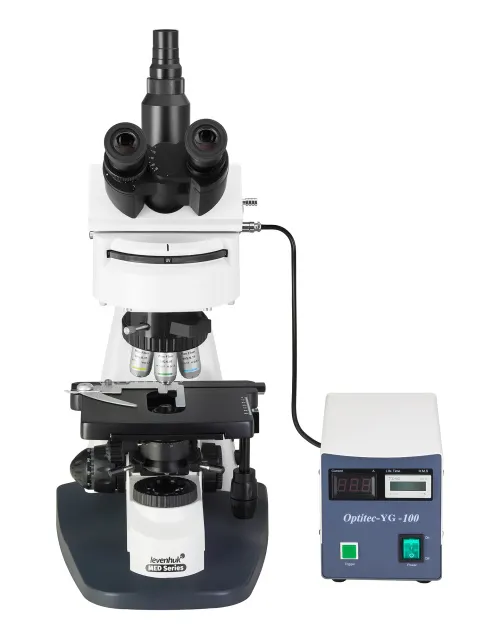

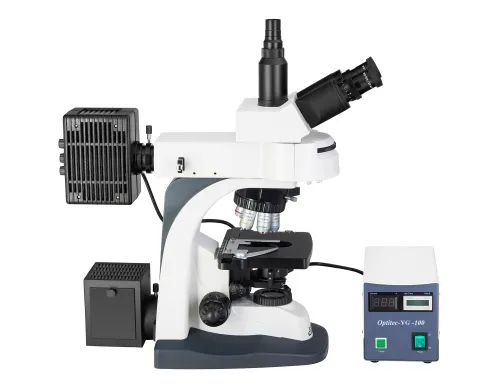

Levenhuk MED PRO 600 Fluo is a professional laboratory microscope for observing in a bright field or conducting research using the fluorescent method. It is excellent for studying living microorganisms at the molecular, cellular, and subcellular levels. The Levenhuk MED PRO 600 Fluo fluorescence microscope is a good choice for retrofitting a medical or research laboratory.

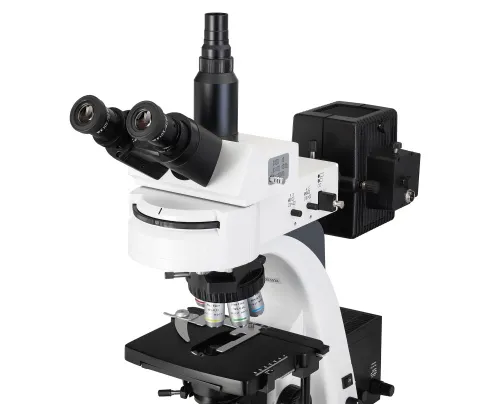

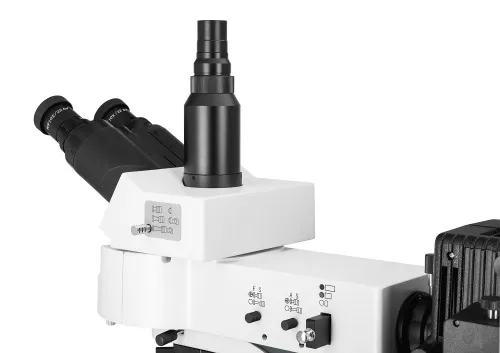

Semi-apochromatic optics and wide-field eyepieces render a clear, detailed, and bright image. You can use this microscope for classic "dry" observations. In addition, it allows for observations using immersion methods. To enhance the image contrast, light filters are recommended (three filters are included). The trinocular head is inclined at 30°. The trinocular head consists of a binocular visual part and an ocular tube for installing a digital camera in it (purchased separately).

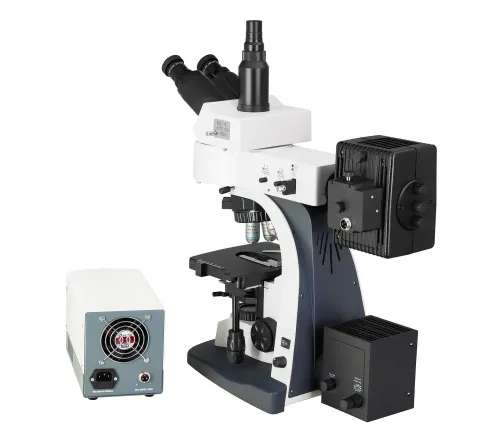

The illumination system consists of a bright halogen lamp that features a brightness adjustment, and a removable condenser. The fluorescence unit includes filter units, a mercury lamp and radiation shield. The light is powered by an AC supply (adapter included). The microscope features coarse and fine focusing. A stage is moveable along two axes, and it also features a mechanical scale. The interpupillary distance is adjustable.

Features:

  • For observations using a fluorescence method
  • Semi-apochromatic infinity-corrected optics

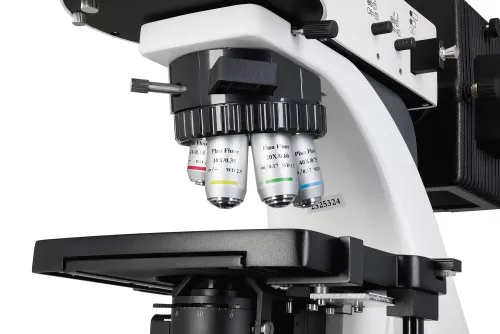

  • The microscope revolving nosepiece is designed for six objectives (two sockets for additional objectives)
  • Adjusting illumination system
  • Abbe condenser N.A. 1.25
  • AC power supply

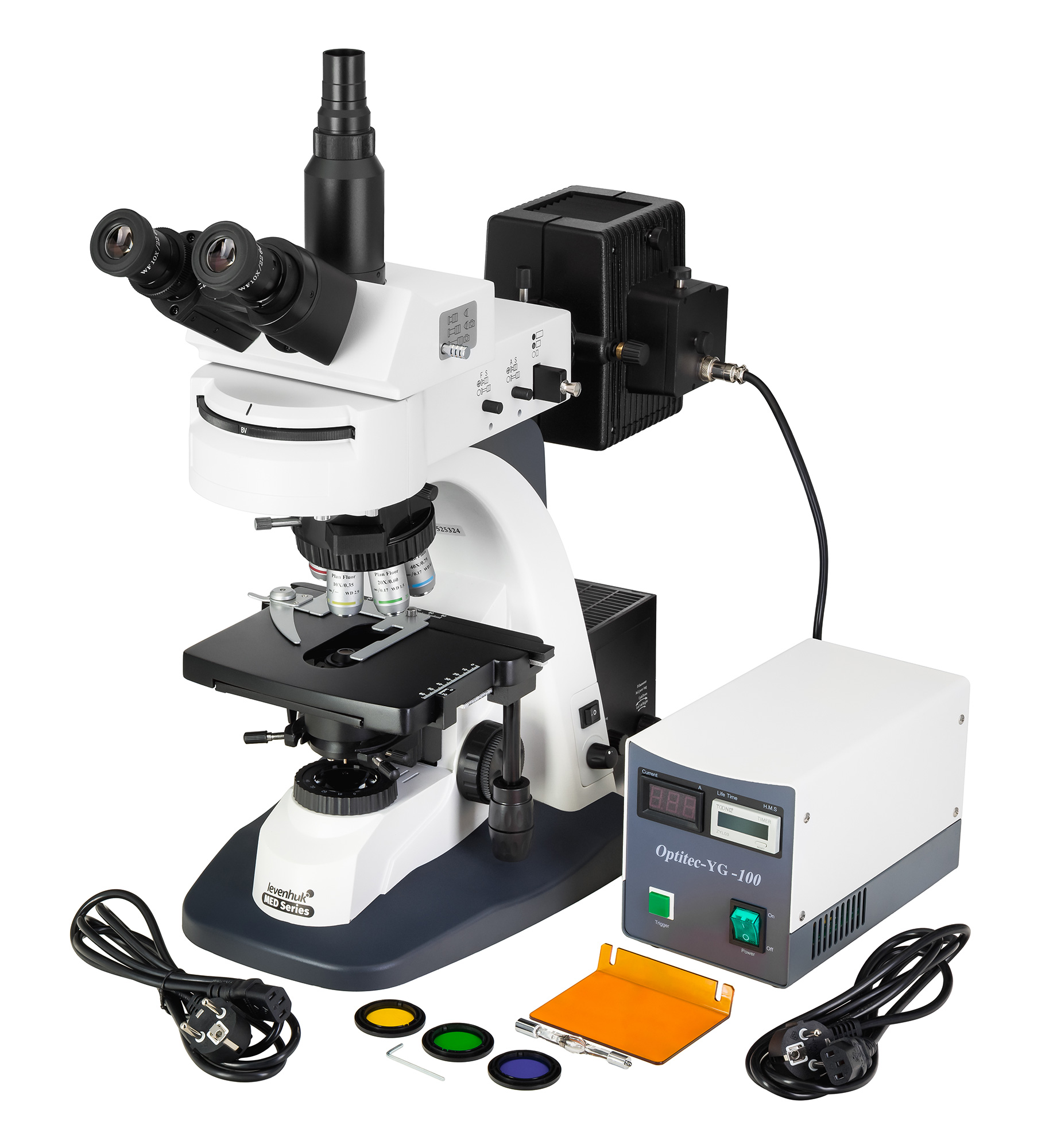

The kit includes:

  • Microscope
  • Semi-apochromatic objectives: 4x, 10x, 20x, 40x
  • Wide-field eyepieces: WF 10x/22mm (2 pcs)
  • Filters: blue, green, yellow
  • UV-reflection unit
  • AC adapter
  • User manual and lifetime warranty

Caution: Remember that the power supply in the US and Canada is 110V, and it is 220-240V in most European countries. Please refer to the specifications table for the correct voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter.

Some things that you can see under a microscope:

Specifications
Product ID 73383
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555005102
Package size (LxWxH) 70x50x42
Shipping Weight 19.22
Type biological, light/optical
Head trinocular
Optics material optical glass
Nozzle 360 ° rotatable, with switching (dividing) luminous flux
Head inclination angle 30 °
Magnification, x 40 — 400
Eyepiece tube diameter, mm 30mm (binocular head), 23.2 mm (third vertical tube)
Eyepieces WF10x/22mm (2 pcs.)
Objectives infinity-corrected semi-apochromatic fluorescence objectives: 4x, 10x, 20x, 40x
Revolving nosepiece for 6 objectives
Interpupillary distance, mm 50 — 75
Stage, mm 180x160
Stage moving range, mm 85/50

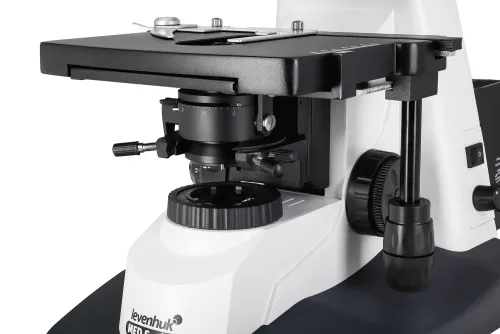

Stage features mechanical double-layer
Condenser Abbe N.A. 1.25 with an iris diaphragm and filter holder
Diaphragm iris, field

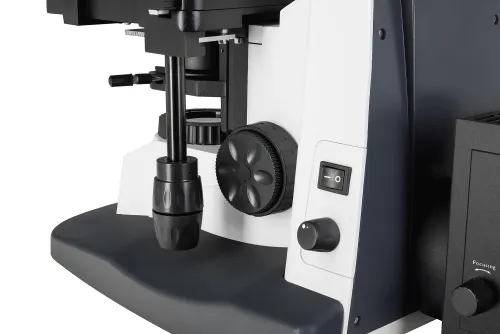

Focus coaxial, coarse and fine (0.002mm)
Body metal
Illumination halogen
Brightness adjustment
Power supply 110–220V, 50/60Hz
Light source type halogen lamp: 12V/30W
Adapter AC adapter
Light filters blue, green, yellow
User level experienced users, professionals
Assembly and installation difficulty level complicated

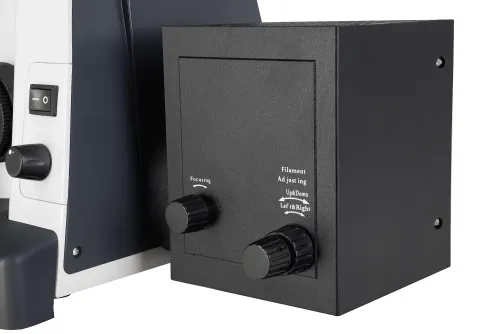

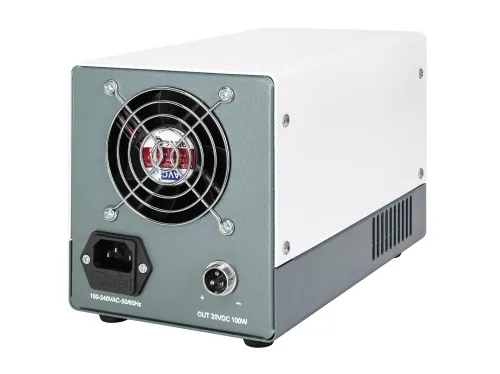

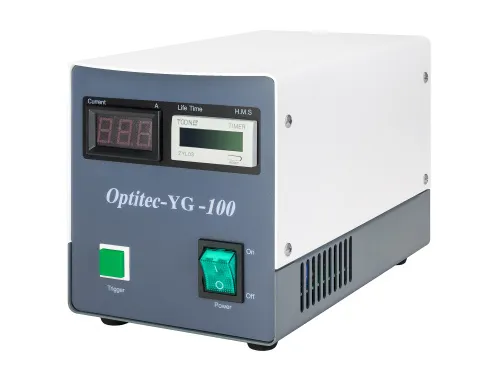

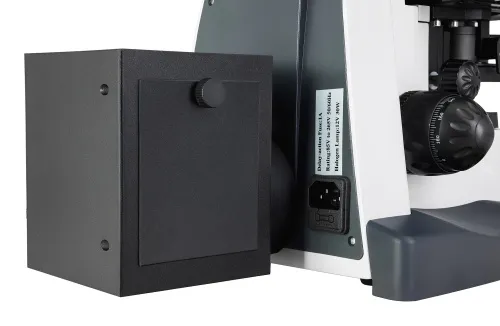

Fluorescent module "G", "B", "BV", "V", "U" filters; mercury lamp (100W) with an external power supply; radiation shield
Application laboratory/medical
Illumination location lower
Research method bright field, fluorescence
Pouch/case/bag in set dust cover
