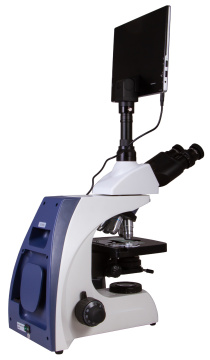

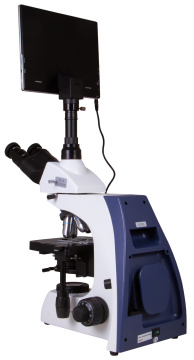

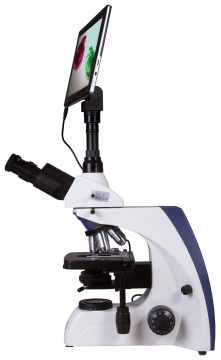

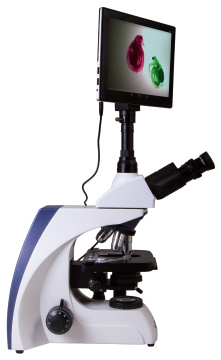

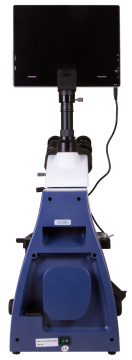

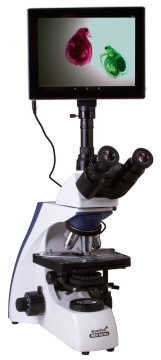

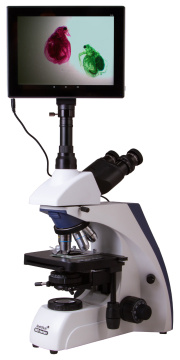

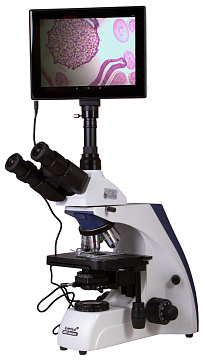

Levenhuk MED D30T LCD Digital Trinocular Microscope
Magnification: 40–1000x. Trinocular head, 5MP digital camera with an LCD screen, infinity-corrected semi-plan achromatic objective lenses, an Abbe condenser with an iris diaphragm
Levenhuk MED D30T LCD is a trinocular microscope with a digital camera with a built-in screen. You do not need to connect a microscope to a computer in order to set up video parameters, transmit images of specimens to an external device, or process photographs and video records. You can do all of these things right on the camera screen. In addition, the microscope uses infinity-corrected semi-plan achromatic optics and allows for setting up Köhler illumination. Levenhuk MED D30T LCD is a professional biological microscope for solving various tasks in a laboratory.
Semi-plan achromatic infinity-corrected optics
The microscopes in the Levenhuk MED 30 series are equipped with an infinity-corrected optical system that is used in professional and high-class microscopes. This system includes Infinity SemiPlan objectives and allows for obtaining clear, high contrast images with high level of flatness.
Levenhuk MED 30 are laboratory (biological, professional) microscopes that allow for installing additional components.
One of the most important features of an infinity-corrected optical system is that it allows for installing any additional parts in the optical path between objective lenses and an ocular tube. The additional parts include polarizers (all Levenhuk MED 30 Microscopes feature a special slot for installing them) and epi-fluorescence light. All in all, modular design and simple operation make Levenhuk MED 30 optimal microscopes for using in different kinds of microscopy and working in hematological, histological, microbiological, and other laboratories.
A rotatable head with a beam splitter

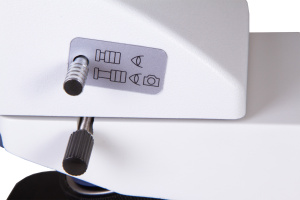

A trinocular head is divided into a visual part and a tube for installing a digital camera. That allows for conducting observations through the eyepieces and recording at the same time. The head rotates 360° around its axis, which will be appreciated by those who often conduct research in a group. The visual part has a 30° inclination angle. There is a beam splitter.
Optical glass with an anti-fungal coating

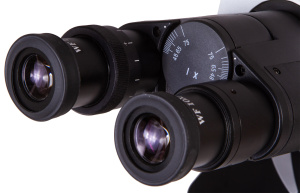

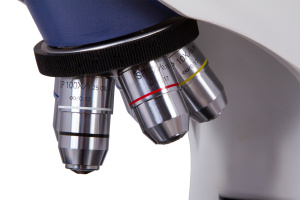

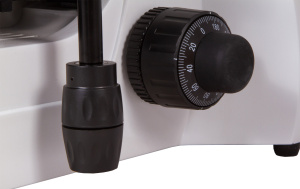

The eyepieces and objective lenses are made of the optical glass and protected with an anti-fungal coating. Semi-plan achromatic optics flatten field of view, enhances color rendering, and reduces chromatic aberrations. The eyepieces provide a good view and provide 10x magnification. There are five objective lenses. The ones with highest magnification are provided with protective spring-loaded frames. A 100x objective lens supports using oil immersion. The sharpness adjustment is done by rotating coarse and fine adjustment knobs.

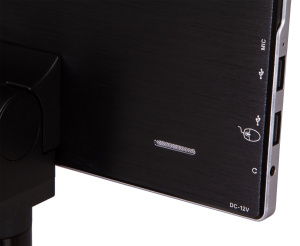

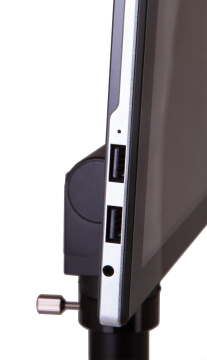

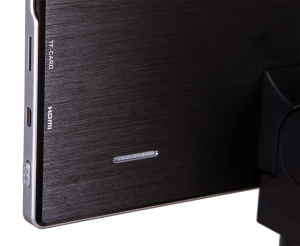

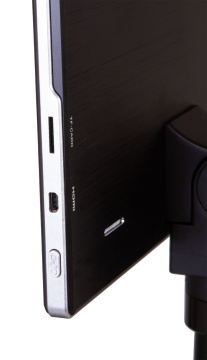

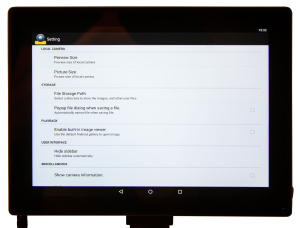

A digital camera does not require installing additional software. You can operate any camera options from an LCD screen and observe how micro research goes. You can connect the camera to external screens; it is compatible with various additional accessories (headphones, memory cards, and others). A 5MP sensor creates a high-quality image and allows for taking high resolution pictures and recording smooth videos with a great frame rate The software allows for adjusting size, image brightness and contrast, exposure time and white balance, calibrating a camera and objective lenses, measuring specimens or structures (several measurement units are available). A digital camera makes work in a laboratory easy and convenient, as an image is observed on a built-in LCD screen with sensor control instead of observing through eyepieces, which significantly reduces eyestrain.
Convenient work with microscope slides

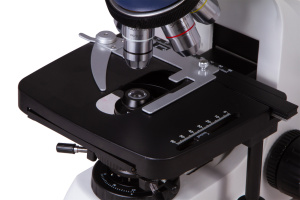

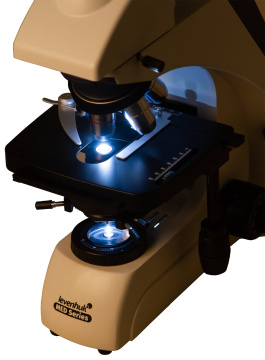

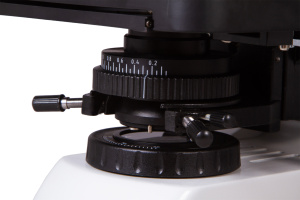

Under the optics, there is a stage with a mechanical scale. Underneath, there is an Abbe condenser with an iris diaphragm. And below it, there is an LED light with brightness adjustment. In addition, you can set up Köhler illumination. The light is powered by an AC power supply.
Levenhuk MED 30 are laboratory (biological, professional) microscopes designed for specialists in various scientific fields.
- Trinocular head with a beam splitter, magnification range of 40x to 1000x
- Infinity-corrected semi-plan achromatic optics
- The eyepieces and objective lenses have an anti-fungal coating
- Enhanced 3W LED light with brightness adjustment
- Köhler illumination is available

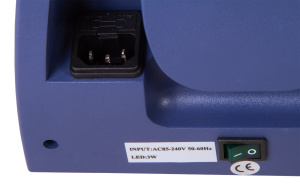

- Powered by an AC power supply
- The kit includes a 5MP digital camera with an Android-based LCD screen

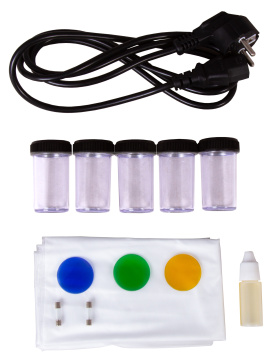

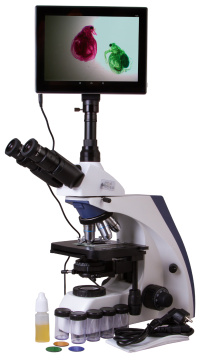

The kit includes:
- Microscope base with a stand
- 360° rotatable trinocular head
- Infinity-corrected semi-plan achromatic objective lenses: 4x, 10x, 40xs, 60xs, 100xs (oil) with an anti-fungal coating
- Wide-field eyepieces: WF10x/22mm with an anti-fungal coating (2 pcs)
- Abbe condenser N.A. 1.25 with an iris diaphragm
- Filters: blue, green, yellow
- Vial of immersion oil
- Fuse (2 pcs)
- Power cord for microscope
- Dust cover
- 5MP digital camera with an LCD screen
- Power cord for camera
- User manual and lifetime warranty
Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries.
Some things you can see under a microscope:
Levenhuk MED D30T LCD Digital Trinocular Microscope is also compatible with other Levenhuk digital cameras (additional cameras are purchased separately). Levenhuk cameras are installed in the eyepiece tube instead of an eyepiece. This microscope is also compatible with any other digital microscope cameras.
