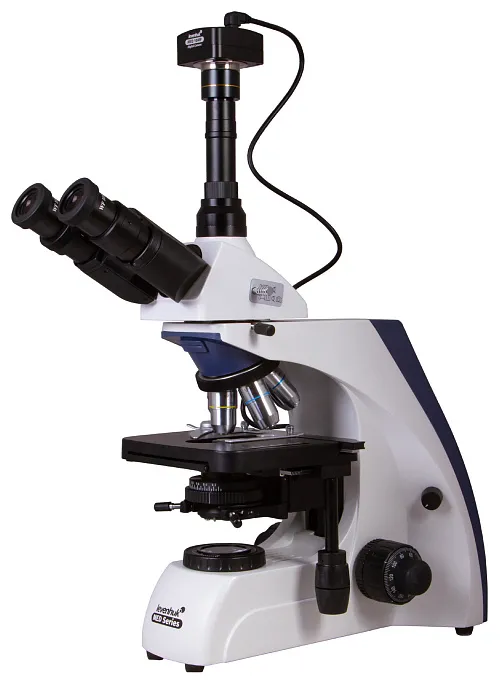

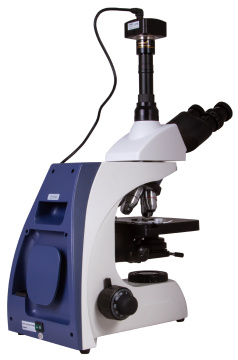

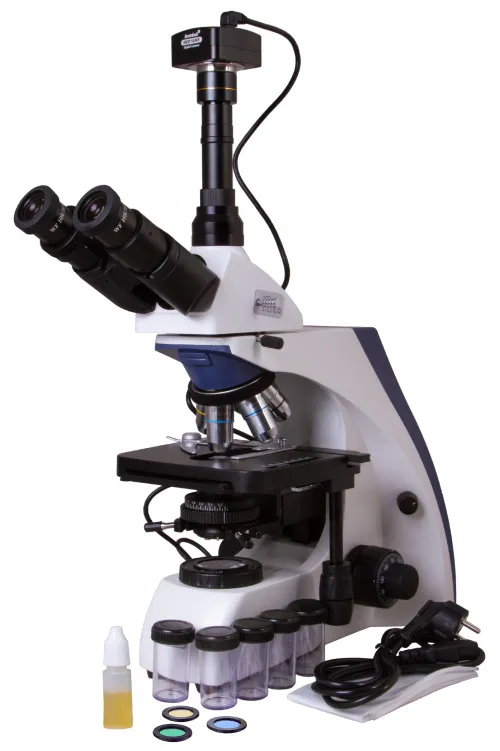

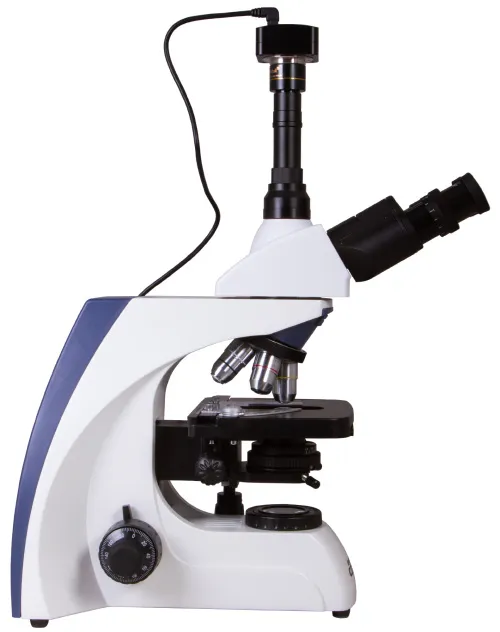

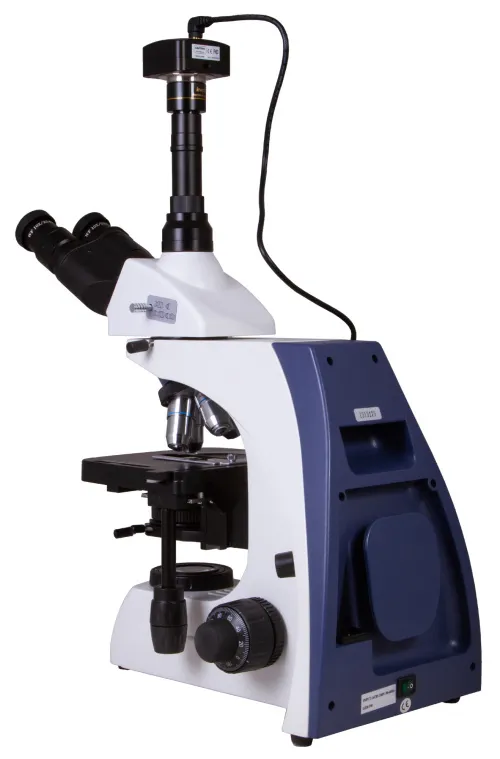

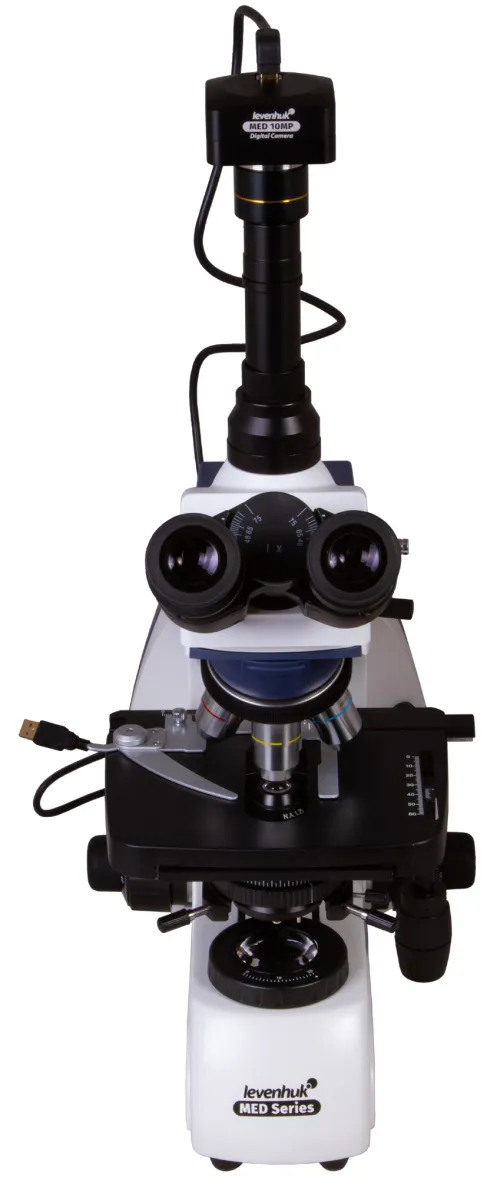

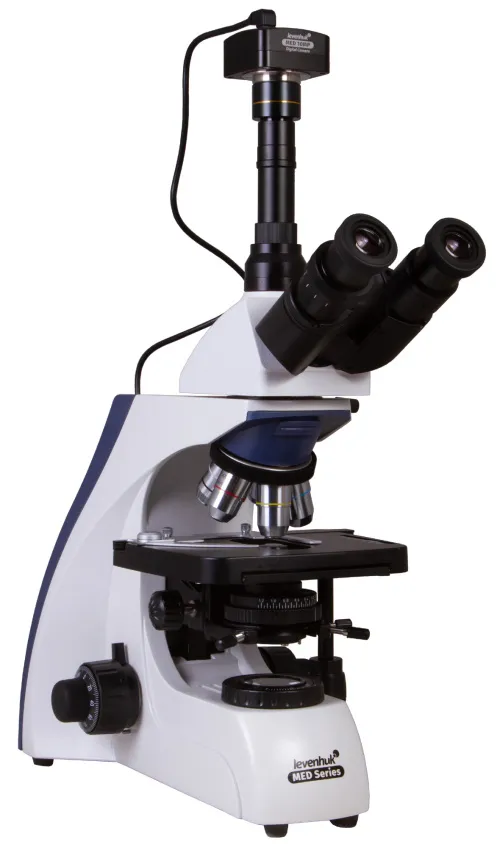

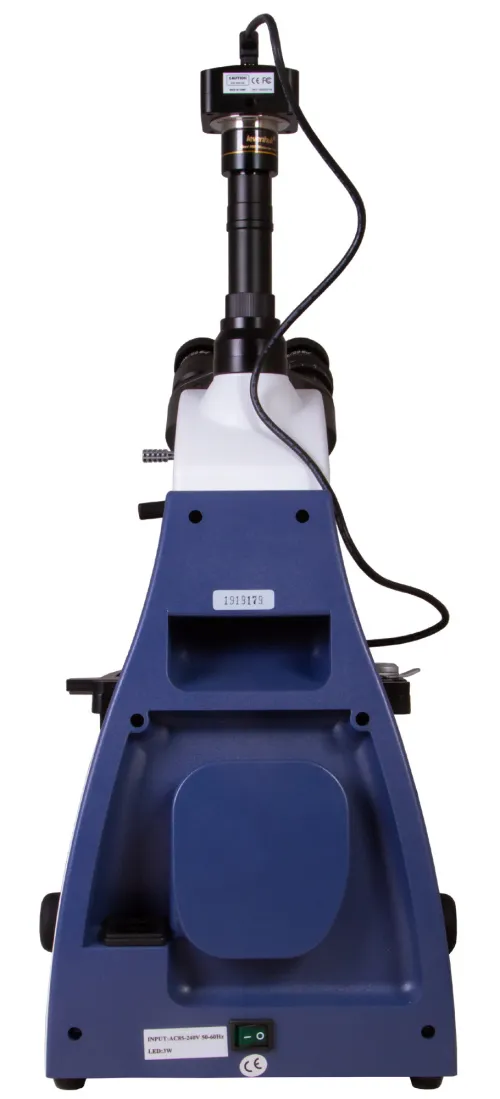

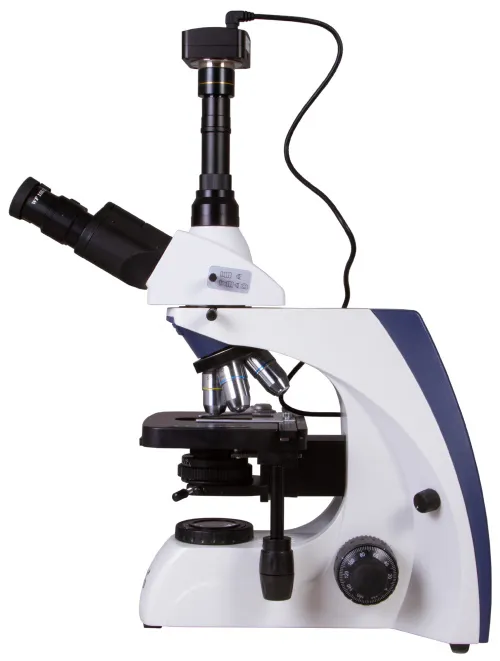

Levenhuk MED D30T Digital Trinocular Microscope
Magnification: 40–1000x. Trinocular head, 10MP digital camera, infinity-corrected semi-plan achromatic objective lenses, an Abbe condenser with an iris diaphragm
Levenhuk MED D30T trinocular microscope combines the advantages of a regular optical and digital optical model. It can be used for classic observations of a micro world, and also for broadcasting, taking pictures of specimens, and recording videos of research. This microscope is designed for professionals in various scientific fields. Infinity-corrected semi-plan achromatic optics, ability for setting up Köhler illumination, and a 10MP digital camera allow for the effective use of Levenhuk MED D30T for solving a wide range of tasks.
Semi-plan achromatic infinity-corrected optics
The microscopes in the Levenhuk MED 30 series are equipped with an infinity-corrected optical system that is used in professional and high-class microscopes. This system includes Infinity SemiPlan objectives and allows for obtaining clear, high contrast images with high level of flatness.
One of the most important features of an infinity-corrected optical system is that it allows for installing any additional parts in the optical path between objective lenses and an ocular tube. The additional parts include polarizers, (all Levenhuk MED 30 Microscopes feature a special slot for installing them) and epi-fluorescence light. All in all, modular design and simple operation make Levenhuk MED 30 optimal microscopes for using in different kinds of microscopy and working in hematological, histological, microbiological, and other laboratories.
Capabilities of the optical system

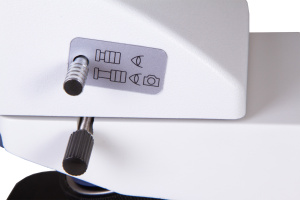

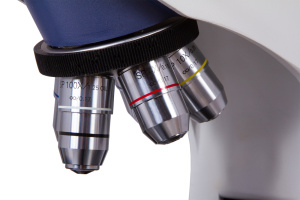

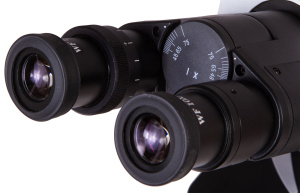

The microscope features a trinocular head with a beam splitter: a vertical tube is used for fixing a digital camera (included) and a binocular head allows for observing with both eyes. A visual part has a 30° inclination angle, the head is 360° rotatable. The microscope is convenient for lengthy observations when conducting research in a group. Wide-field eyepieces provide a good view and 10x magnification. They feature a diopter adjustment, which allows for setting up optics precisely for each customer. A revolving nosepiece contains five objective lenses, three of them with a more powerful magnification have spring-loaded frames. Oil immersion can be used during observations through a 100x objective lens. All of the optics are protected with an anti-fungal coating.

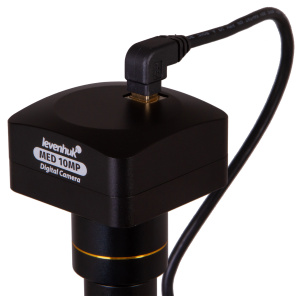

A 10M digital camera for capturing photos and videos

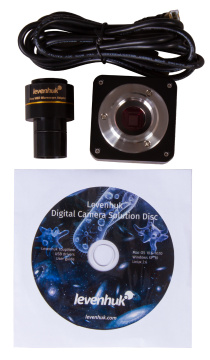

The digital camera uses a 10MP sensor, which allows for taking pictures in high resolution and recording videos with a high frame rate. A camera is connected to a computer via an included USB cable and transmits an image in real-time mode to it. Special software, which you can install from the included CD, allows for image processing and setting up camera parameters. The software allows for adjusting size, image brightness and contrast, exposure time and white balance, calibrating a camera and objective lenses, measuring specimens or structures (several measurement units are available). A digital camera makes work in a laboratory easy and convenient, as it allows for conducting research by observing through the eyepieces instead of a computer screen, which significantly reduces eyestrain.
Convenient work with microscope slides

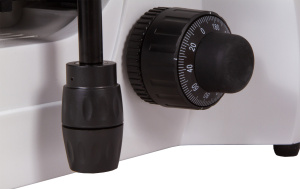

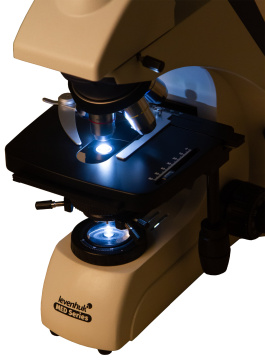

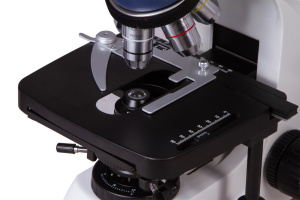

The stage is equipped with a mechanical scale. Sharpness adjustment is done by rotating the coarse and fine focusing. An Abbe condenser is equipped with an iris diaphragm. The light is located in the lower part of the microscope and consists of a 3W LED with an additional lens for ultimate brightness. Setting up Köhler illumination is available. The brightness is adjustable. It is powered by an AC power supply.
- Trinocular head with a beam splitter, magnification range of 40x to 1000x
- Infinity-corrected semi-plan achromatic optics
- The eyepieces and objective lenses have an anti-fungal coating
- Enhanced LED light with brightness adjustment
- Köhler illumination is available

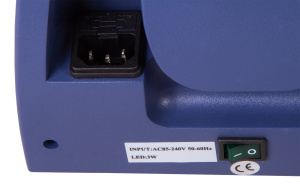

- Powered by an AC power supply
- 10MP digital camera is included

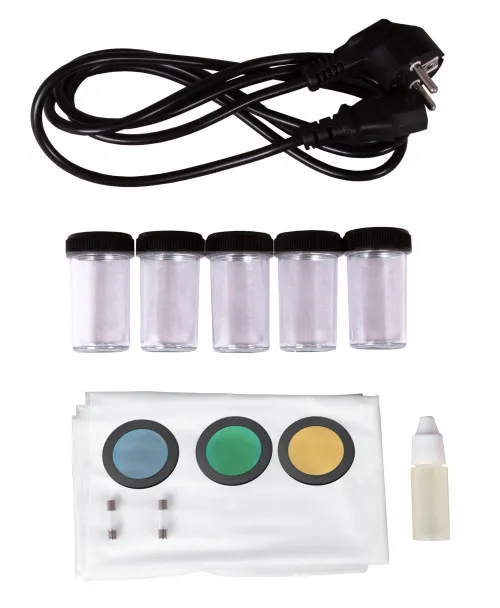

The kit includes:
- Microscope base with a stand
- 360° rotatable trinocular head
- Infinity-corrected semi-plan achromatic objective lenses: 4x, 10x, 40xs, 60xs, 100xs (oil) with an anti-fungal coating
- Wide-field eyepieces: WF10x/22mm with an anti-fungal coating (2 pcs)

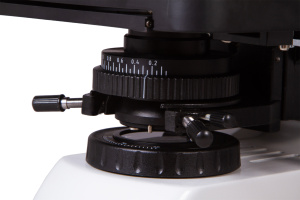

- Abbe condenser N.A. 1.25 with an iris diaphragm
- Filters: blue, green, yellow
- Bottle of immersion oil
- Fuse (2 pcs)
- Power cord for microscope
- Dust cover
- 10MP digital camera
- Camera adapter
- Camera mount
- USB cable for connecting and powering camera
- Software CD and drivers
- User manual and lifetime warranty
Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries.
Some things you can see under a microscope:
Levenhuk MED D30T Digital Trinocular Microscope is also compatible with other Levenhuk digital cameras (additional cameras are purchased separately). Levenhuk cameras are installed in the eyepiece tube instead of an eyepiece. This microscope is also compatible with any other digital microscope cameras.
