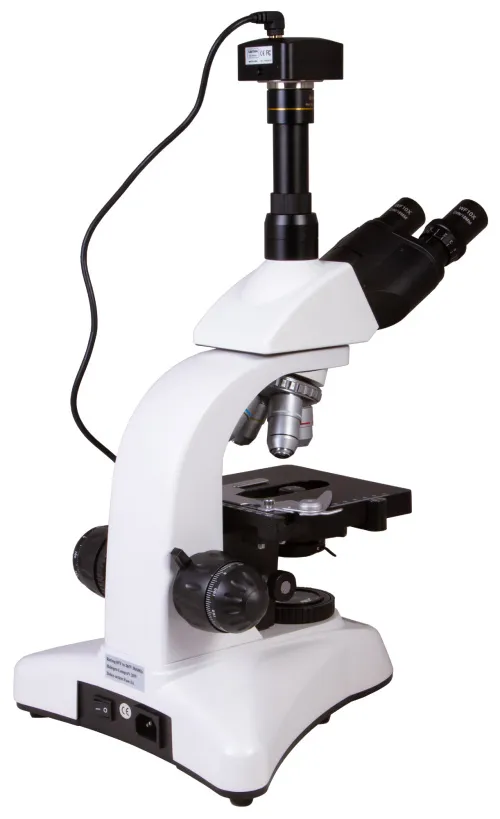

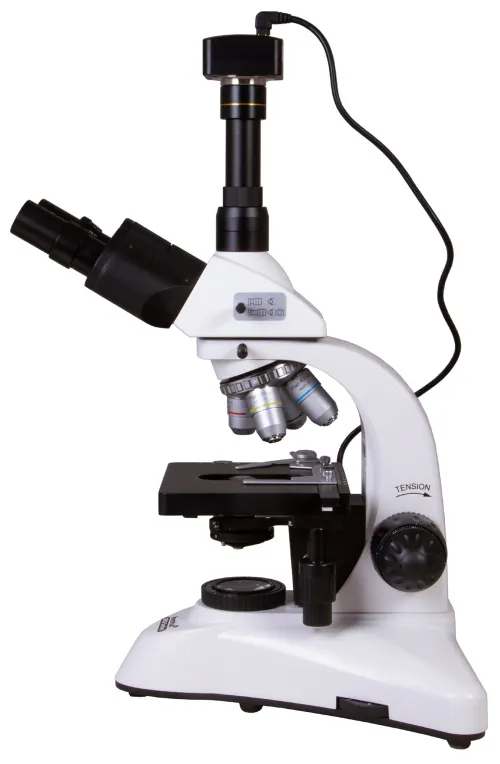

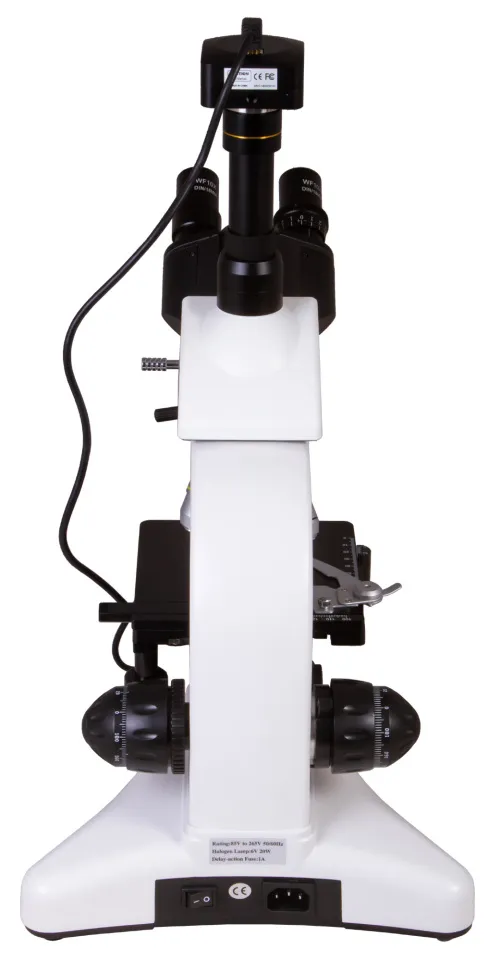

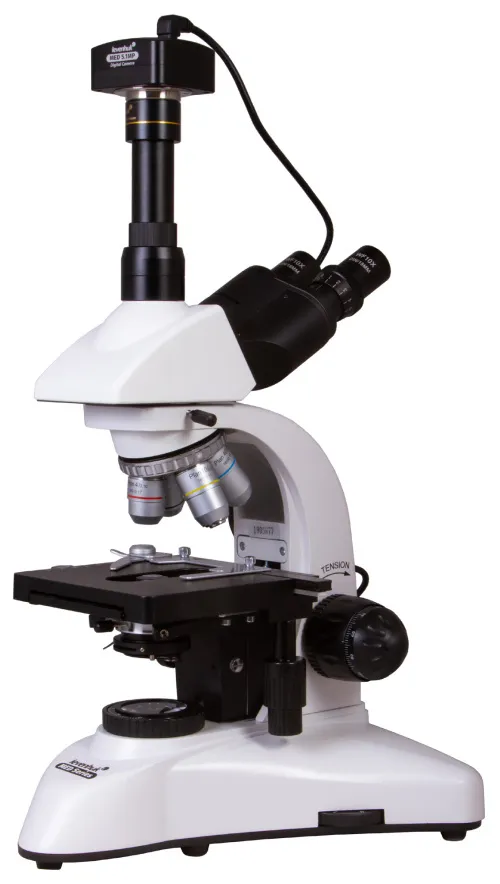

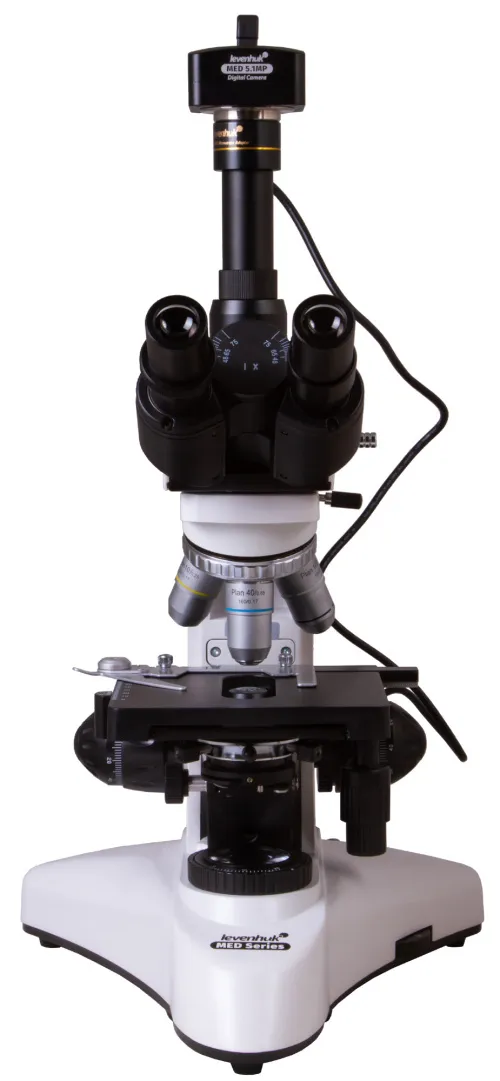

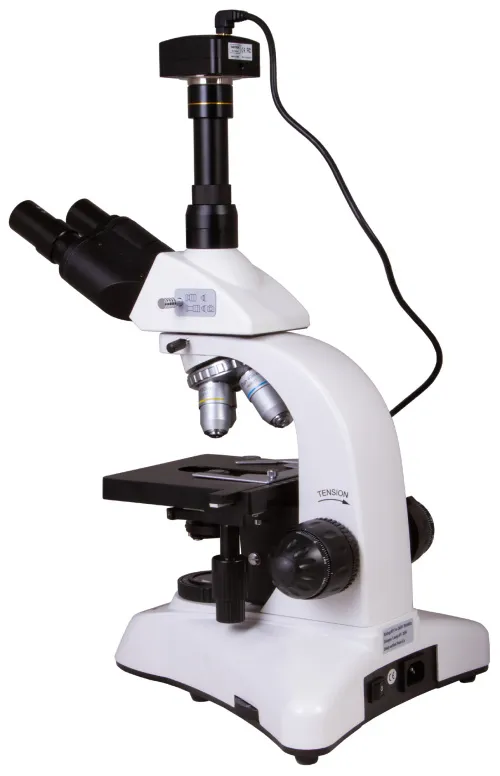

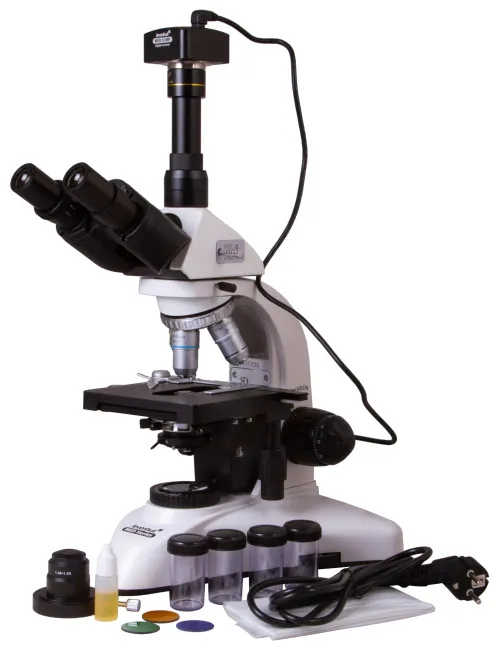

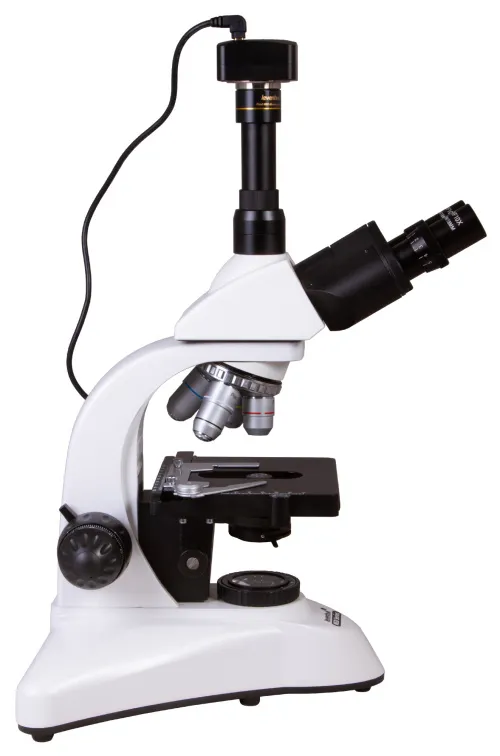

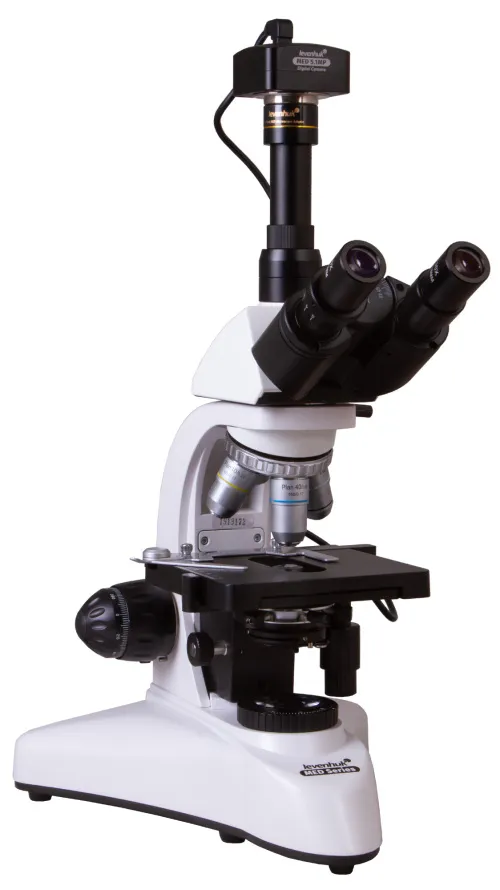

Levenhuk MED D25T Digital Trinocular Microscope
Magnification: 40–1000x. Trinocular head, 5.1MP digital camera, plan achromatic objective lenses, an Abbe condenser, a dark field condenser (oil)
Colour Base color
Levenhuk MED D25T Digital Trinocular Microscope
Levenhuk MED D25T is a digital trinocular microscope with a 5.1M camera with plan achromatic optics and two condensers (bright field and dark field). It can be used in various scientific fields: medicine, biochemistry, microbiology, and others. This microscope is a great choice for a laboratory worker, university professor, and a staff member of a medical center or research institute. A rotatable head with a beam splitter The microscope comes with a trinocular head with a beam splitter. The binocular visual part has a practical 30° inclination angle, and a third ocular tube for a digital camera is vertical. Such a design allows for conducting regular observations and using a camera for transmitting an image to an external screen while also shooting videos and photos at the same time. This head is also practical to use due to its 360° rotatable head. Observations without optical aberrations The microscope uses plan achromatic objective lenses, which create a nearly flat field of view and reduce chromatic aberrations. The objective lenses with 40x and 100 magnification are equipped with spring-loaded frames. In addition, a 100x objective lens can also be used for oil immersion. Wide-field eyepieces feature diopter adjustment and provide 10x magnification. The objective lenses and eyepieces have a protective anti-fungal coating. Digital capabilities A sensor in the digital camera allows for delivering sharp and detailed images of research. You can shoot videos at a high frame rate, which is why the recorded videos are very smooth. Software included in the kit allows for processing recorded videos and photos and setting up a digital camera. The software allows for adjusting size, image brightness and contrast, exposure time and white balance, calibrating a camera and objective lenses, measuring specimens or structures (several measurement units are available). An included USB cable is used for connecting it to a computer. A trinocular microscope with a digital camera provides for easier lengthy work in a laboratory. An image observed through an objective lens is also transmitted to an external screen. That removes the necessity to continuously observe through the eyepieces and strain the eyes and the rotator cuff. Convenient work with microscope slides The stage is equipped with a mechanical scale. Sharpness adjustment is done by rotating coarse and fine focusing adjustment knobs. An Abbe condenser is equipped with an iris diaphragm and a filter holder. The kit includes a dark field oil condenser for conducting observations using dark field method. The illumination system consists of a 20W halogen light with adjustable brightness. Setting up Köhler illumination is available. The light is powered by an AC power supply. The Levenhuk MED 25 series includes optimal microscopes for cytology that allow for the observations using oil immersion in the bright field and dark field. Features: Trinocular head with a beam splitter Plan achromatic optics provides magnification of 40x to 1000x Anti-fungal coating of all the optical surfaces 20W halogen light is powered by an AC power supply Köhler illumination is available Bright field and dark field observations are available 5.1MP digital camera is included The kit includes: Microscope base with a stand 360° rotatable trinocular head Plan achromatic objective lenses: 4x, 10x, 40xs, 100xs (oil) with an anti-fungal coating Wide-field eyepieces: WF10x/18mm with an anti-fungal coating (2 pcs) Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder Dark field condenser (oil) Filters: blue, green, yellow Vial of immersion oil Fuse (2 pcs) Power cord for microscope Dust cover 5.1MP digital camera Camera adapter Camera mount USB cable for connecting and powering camera Software CD and drivers User manual and lifetime warranty Caution: Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries. Some things you can see under a microscope: Levenhuk MED D25T Digital Trinocular Microscope is also compatible with other Levenhuk digital cameras(additional cameras are purchased separately). Levenhuk cameras are installed in the eyepiece tube instead of an eyepiece. This microscope is also compatible with any other digital microscope cameras.
