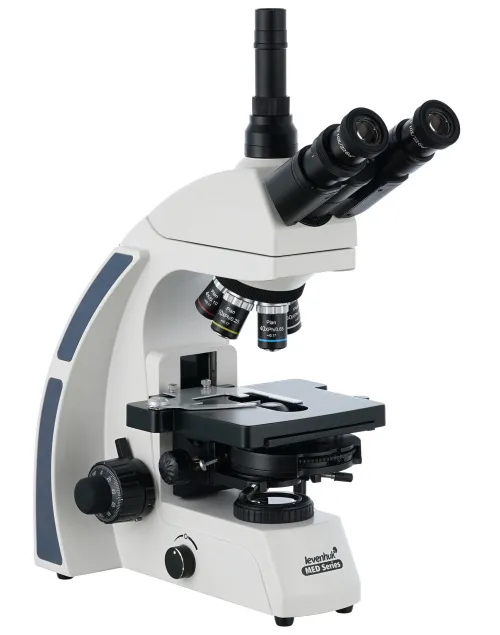

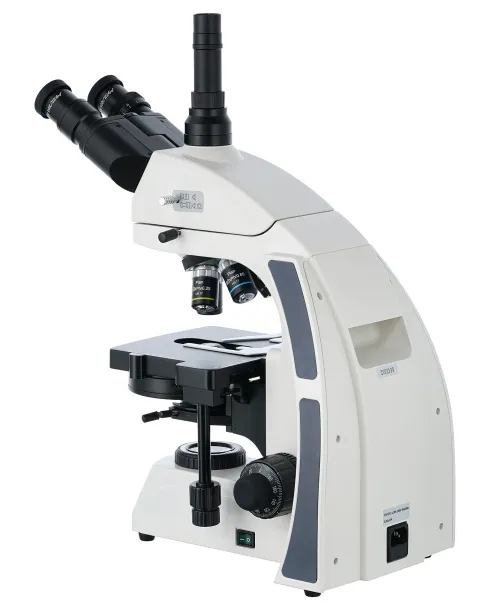

Levenhuk MED 45T Trinocular Microscope

Levenhuk MED 45T trinocular microscope is a professional tool for 40x to 1000x microscopic studies. It uses infinity-corrected phase contrast plan achromatic objective lenses and has Köhler illumination adjustment. You can study a specimen using phase contrast in the bright or dark field. This microscope is absolutely indispensable for a microbiologist, biochemist, or health professional.

The microscopes in the Levenhuk MED 45 series are equipped with an infinity-corrected optical system that is used in professional and high-class microscopes. This system includes Infinity PlanAchromat objectives and allows for obtaining clear, high contrast images with a high level of flatness.

One of the most important features of an infinity-corrected optical system is that it allows for installing any additional parts in the optical path between objective lenses and an ocular tube. The additional parts include polarizers and epi-fluorescence light. All in all, modular design and simple operation make Levenhuk MED 45 optimal microscopes for use in different kinds of microscopy and working in hematological, histological, microbiological, and other laboratories.

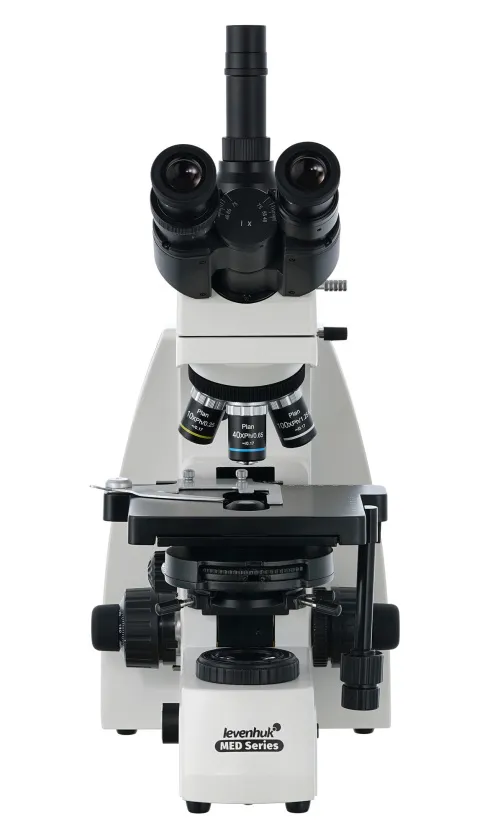

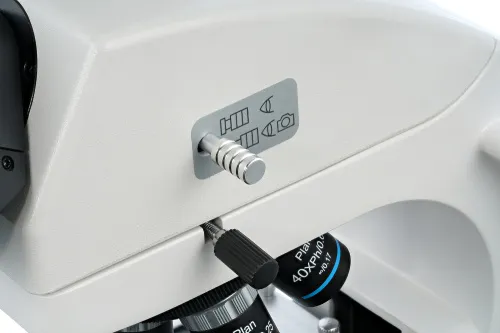

The visual part of the trinocular head is inclined by 30°, whereas the eyepiece tube for a digital camera is vertical. The camera is not included in the kit. The entire head may be rotated around its axis by 360°. When a group of people are working, it helps to demonstrate specimens to other researchers without moving the entire microscope.

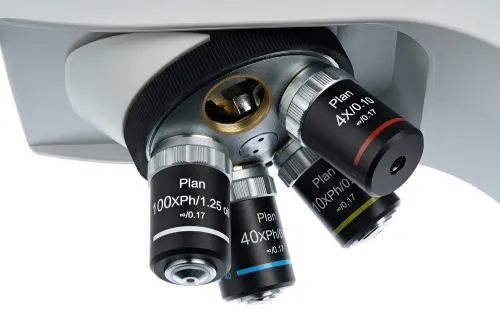

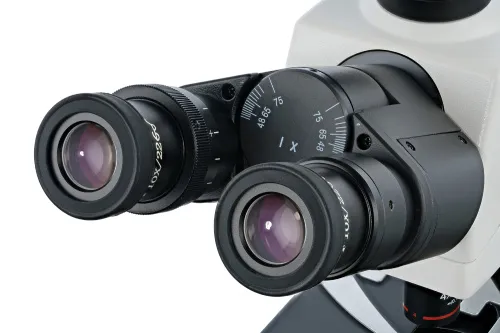

The revolving nosepiece can accommodate five objectives; the kit includes four phase contrast plan achromatic objective lens of various magnification. High-magnification objectives have spring rims. A 100x objective lens is used for observations with oil immersion. Wide-field eyepieces allow for handling extended specimens and adjusting diopters for the user’s eyesight. The optical system transmits a high-definition and high-contrast image, generates a flat field and minimizes chromatic aberration. All of the accessories are made of optical glass with anti-fungal coating.

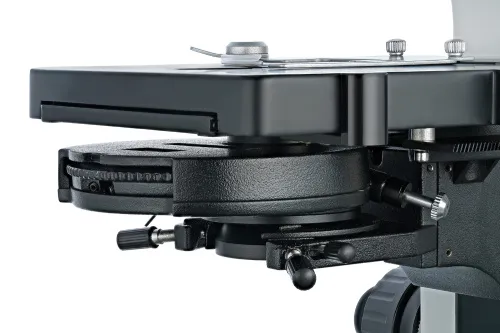

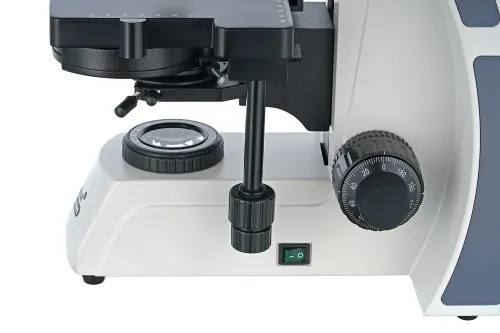

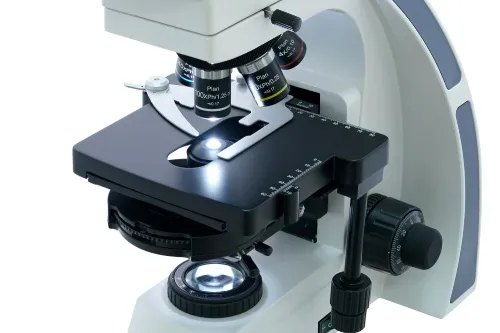

The stage has a mechanical scale. The stage can move in two directions. The phase contrast condenser is only used for observations by the “dry” method. The light is located at the bottom. It is a 5 W LED with brightness adjustment. You can adjust sharpness by turning the coarse and fine focusing knobs.

The light is powered by an AC power supply.

Features:

• Trinocular head, magnification range of 40x to 1000x
• Infinity-corrected phase contrast plan achromatic optical system
• Wide-field eyepieces with diopter adjustment
• Phase contrast condenser with dark field
• Lower LED light with brightness adjustment
• Köhler illumination is available

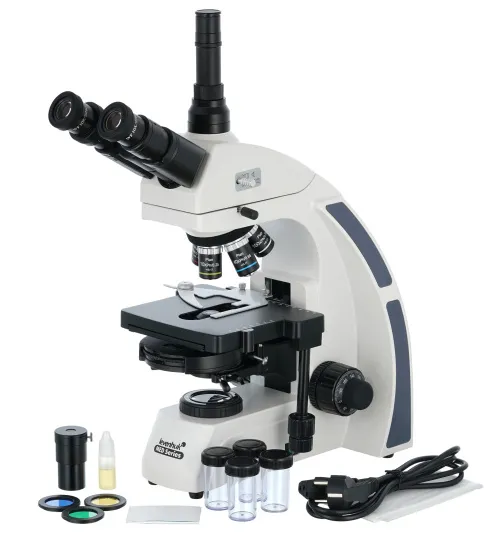

The kit includes:

• Microscope base with a stand
• 360° rotatable trinocular head
• Infinity-corrected phase contrast plan achromatic objective lenses: 4x, 10x, 40xs, 100xs (oil) with anti-fungal coating
• Wide-field eyepieces: WF10x/22mm with anti-fungal coating (2 pcs)

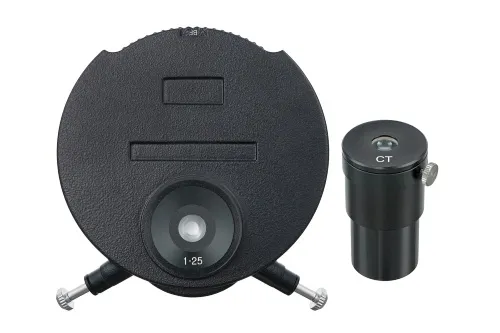

• Phase contrast device (dark field)
• Filters: blue, green, yellow
• Bottle of immersion oil
• LED (5 W)
• Fuse (2 pcs)
• Power cord for microscope
• Dust cover
• Camera mount
• User manual and lifetime warranty

Caution:

Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries.

Some things you can see under a microscope:

Levenhuk MED 45T Trinocular Microscope is also compatible with other Levenhuk digital cameras (additional cameras are purchased separately). Levenhuk cameras are installed in the eyepiece tube instead of an eyepiece. This microscope is also compatible with any other digital microscope cameras.
