Magnification: 40–1000x. Trinocular head, semi-plan achromatic objective lenses, an Abbe condenser with an iris diaphragm and a filter holder

Colour Base color
Margin:
Discount:
Retail price:
The price is valid only for the online store and may differ from the prices in retail stores.
Availability
Specifications
All specifications
Accessories

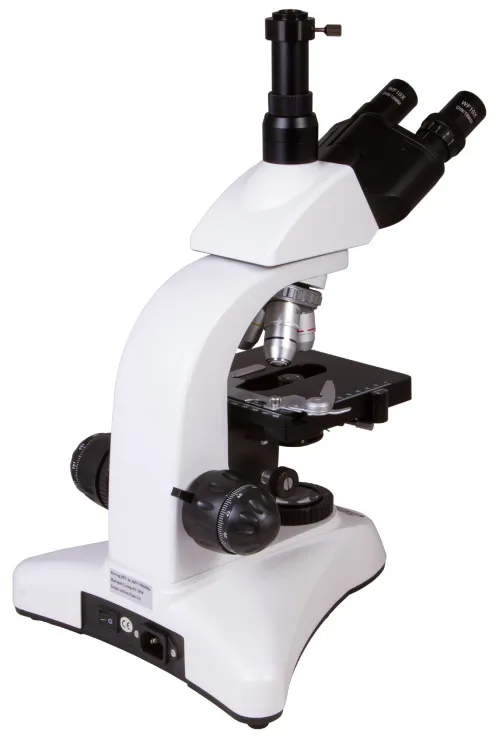

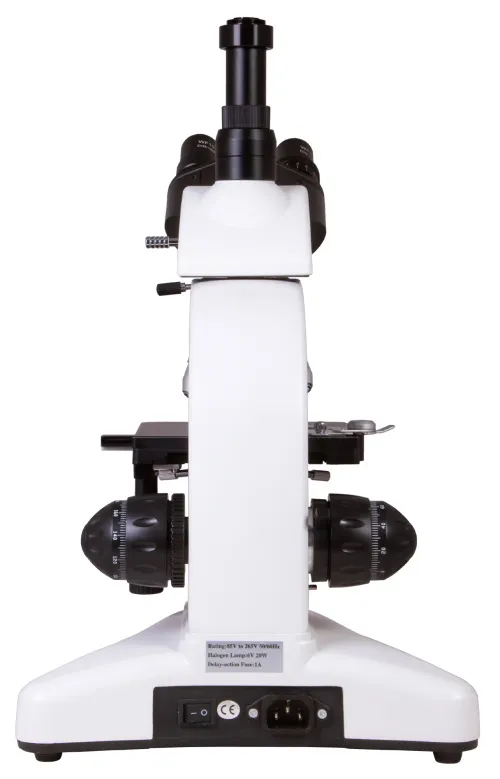

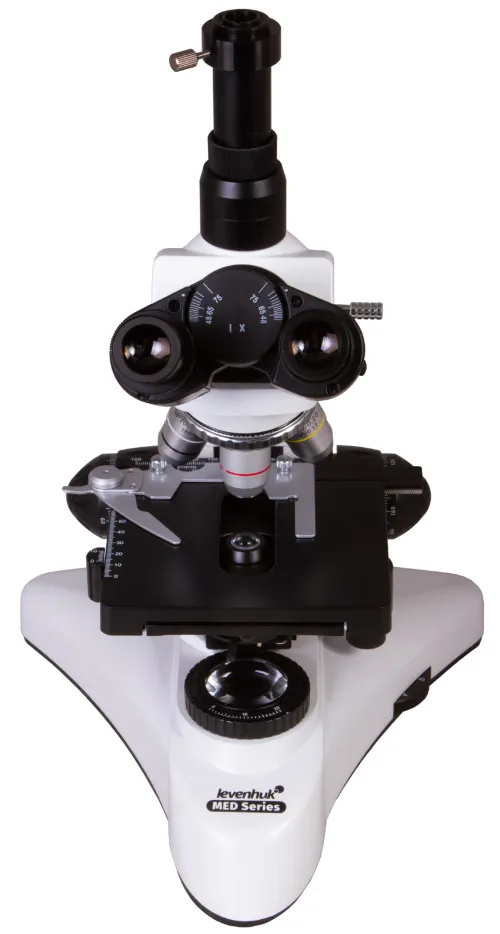

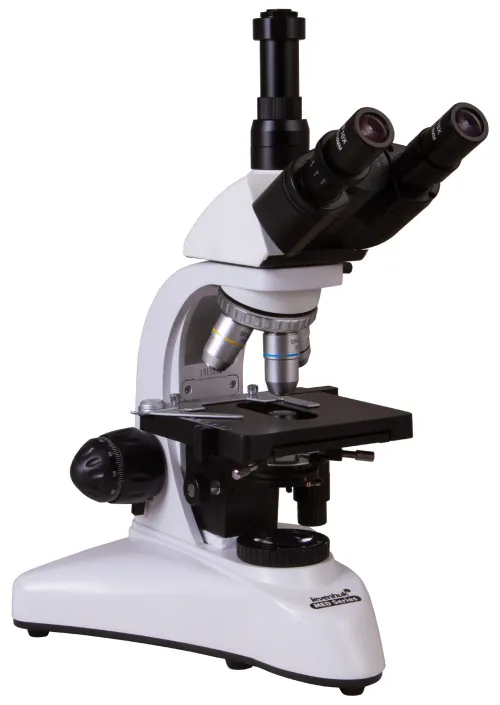

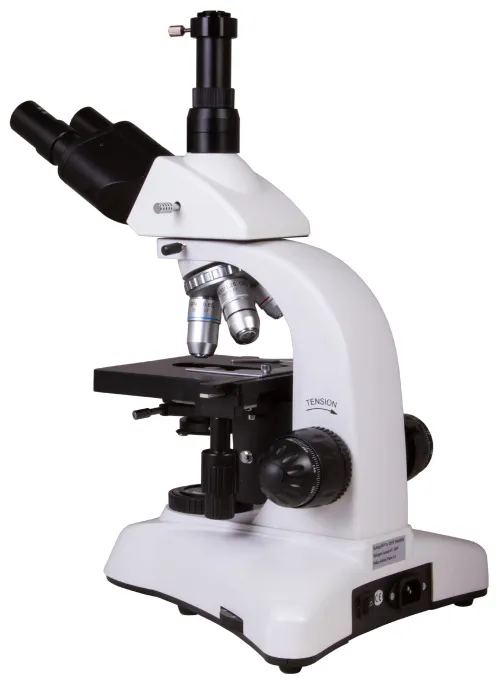

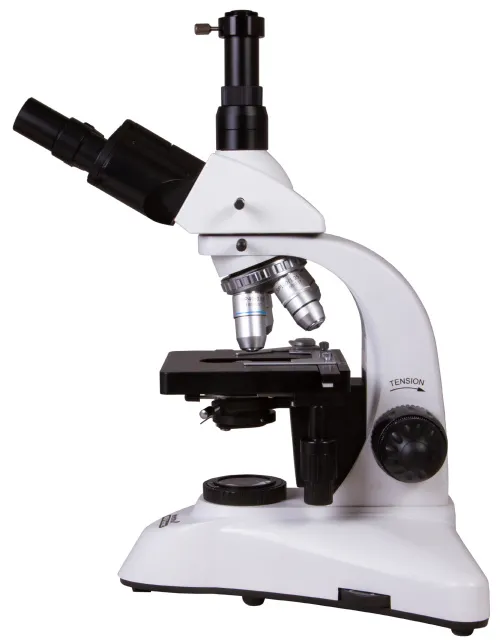

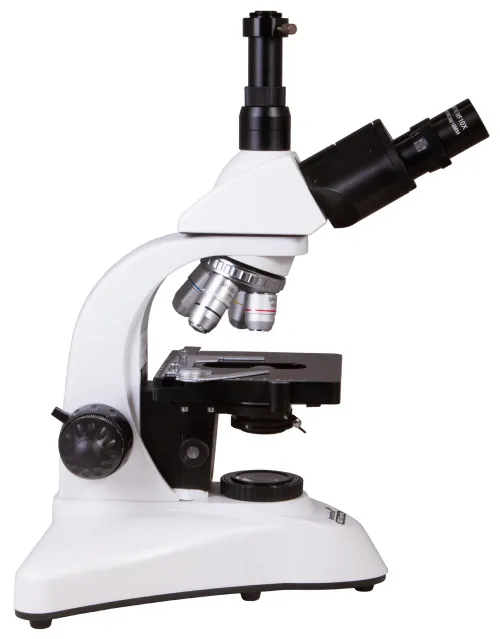

Levenhuk MED 20T is a trinocular microscope with semi-plan achromatic optics. A delivered image is flat and sharp. Therefore, the microscope is suitable for conducting sophisticated professional observations. The optics magnification is of 40x to 1000x. A microscope is an excellent choice for equipping a medical laboratory, microbiology department at a university, or research institute.

The trinocular head allows for the simultaneous conducting of visual observations and transmitting the image to the external screen using a digital camera (not included). There is a beam splitter. The camera is installed in an individual vertical ocular tube. A binocular visual node is inclined at 30° and used for regular observations. A head can be rotated by 360° around its axis, which is useful for group research.

The eyepieces and objective lenses are made of the optical glass with an anti-fungal coating. Four objective lenses are installed in a revolving nosepiece, which allows for quickly adjusting overall microscope magnification. Two objective lenses with high magnification come with protective spring-loaded frames; a 100x objective lens can be used for observations using oil immersion (a vial of immersion oil is included). Wide-field eyepieces have diopter adjustment, which allows for precisely adapting the microscope optics to the customer's eyesight. The coarse and fine focusing with a small pitch allow for sharpness adjustment.

The specimens are fixed on a double-layer stage, which is moveable along two axes. It is equipped with a mechanical scale, which allows for installing a specimen precisely under a microscope objective lens. Under the stage, there is an Abbe condenser with an iris diaphragm and a filter holder. And, below it, there is a 20W halogen light. The light is powered by an AC power supply; its brightness is adjustable. In addition, this microscope allows for setting up Köhler illumination.

Features:

  • Trinocular laboratory microscope
  • Semi-plan achromatic optics, magnification of 40x to 100x
  • Anti-fungal coating of all optical surfaces
  • Halogen light powered by an AC power supply
  • Köhler illumination is available

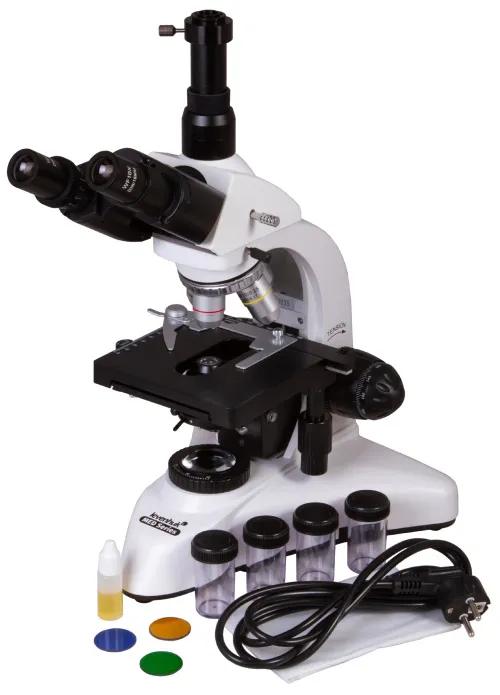

The kit includes:

  • Microscope base with a stand
  • 360° rotatable trinocular head
  • Semi-plan achromatic objective lenses 4x, 10x, 40xs, 100xs (oil) with an anti-fungal coating
  • Wide-field eyepieces: WF10x/18mm with an anti-fungal coating (2 pcs)
  • Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder
  • Filters: blue, green, yellow
  • Vial of immersion oil
  • Fuse (2 pcs)
  • Power cord for microscope
  • Dust cover
  • Camera mount
  • User manual and lifetime warranty

Caution:

Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries.

Some things you can see under a microscope:

Levenhuk MED 20T Trinocular Microscope is compatible with Levenhuk digital cameras (purchased separately). Levenhuk cameras are installed in the eyepiece tube instead of an eyepiece.
