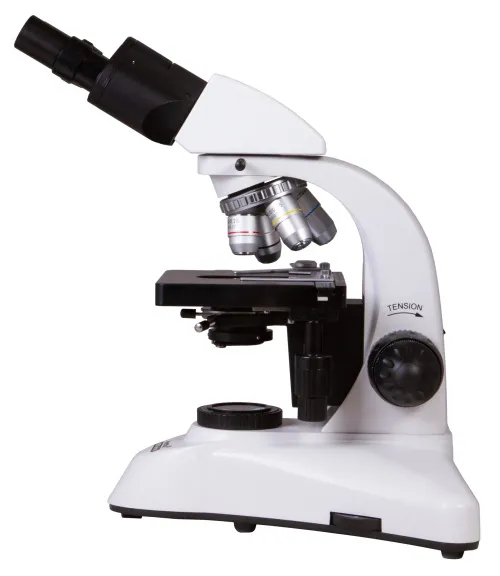

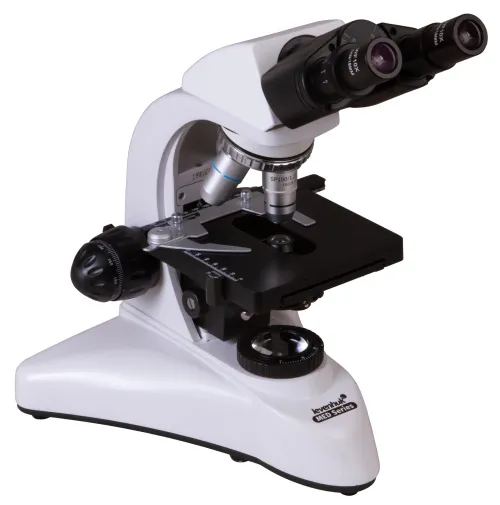

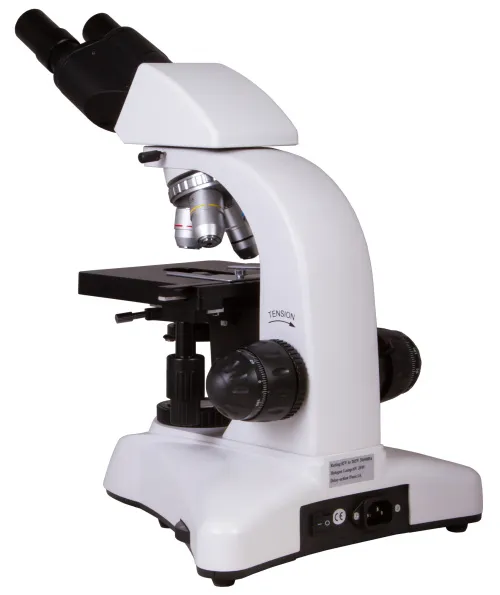

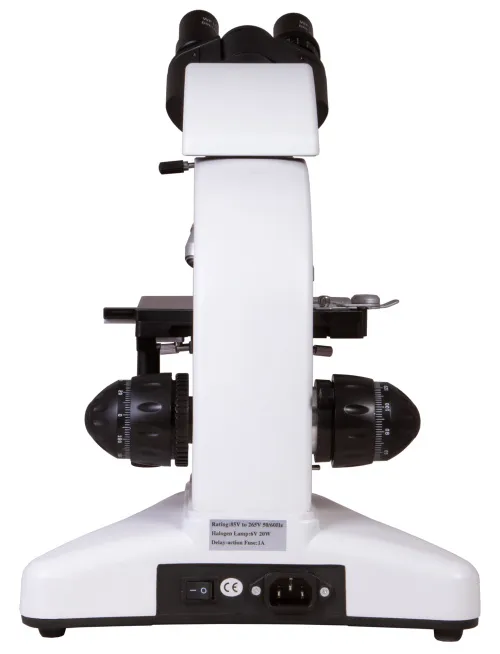

Levenhuk MED 20B Binocular Microscope

Levenhuk MED 20B Binocular Microscope is designed for professional research of the microcosm at magnifications of 40 to 1,000 times. It uses semi-plan achromatic optics that minimize chromatic aberrations and significantly flatten the curvature of the field of view. This microscope is an excellent acquisition for the microbiology department, medical laboratory, or research institute.

A binocular head is perfect for lengthy observations because you can look through the microscope with both eyes. The visual part features a 30° inclination angle. The trinocular head is 360° rotatable: this feature is useful for group research.

Wide-field eyepieces provide 10x magnification and allow for adjusting diopters in order to obtain an image that is as sharp as possible. The coarse and fine focusing allows for adjusting image sharpness. Both focusing systems have a low pitch and allow for setting up a microscope for complicated observations. A revolving nosepiece contains four objective lenses; 40x and 100x objectives are equipped with spring-loaded frames. A 100x objective can be used for observations using oil immersion (a bottle with immersion oil is included in the kit). The eyepieces and objective lenses are protected with a layer of anti-fungal coating.

A double-layer stage comes with a mechanical scale. The lighting system consists of a lower light source and Abbe condenser with an iris diaphragm and filter holder. A 20W halogen bulb is used as a light source. The light brightness is adjustable. The light is powered by an AC power supply. In addition, this microscope allows for setting up Köhler illumination.

Features:

• Binocular laboratory microscope
• Semi-plan achromatic optics, magnification of 40x to 1000x
• Anti-fungal coating of all the optical surfaces
• Halogen light powered by an AC power supply
• Köhler illumination is available

The kit includes:

• Microscope base with a stand
• 360° rotatable binocular head
• Semi-plan achromatic objective lenses 4x, 10x, 40xs, 100xs (oil) with an anti-fungal coating
• Wide-field eyepieces: WF10x/18mm with an anti-fungal coating (2 pcs)
• Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder
• Filters: blue, green, yellow
• Bottle of immersion oil
• Fuse (2 pcs)
• Power cord for microscope
• Dust cover
• User manual and lifetime warranty

Caution:

Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries.

Some things you can see under a microscope:

Levenhuk MED 20B Binocular Microscope is compatible with Levenhuk digital cameras (purchased separately). Levenhuk cameras are installed in the eyepiece tube instead of an eyepiece.
