Levenhuk DTX 500 Mobi Digital Microscope
Portable USB digital microscope with LCD display. Magnification: 20x, 200x, 500x. Digital camera: 5Mpx
Product ID | 61023 |
Brand | Levenhuk, Inc., USA |
Warranty | lifetime |
EAN | 5905555004327 |
Package size (LxWxH) | 33x7x15 cm |
Shipping Weight | 0.7 kg |

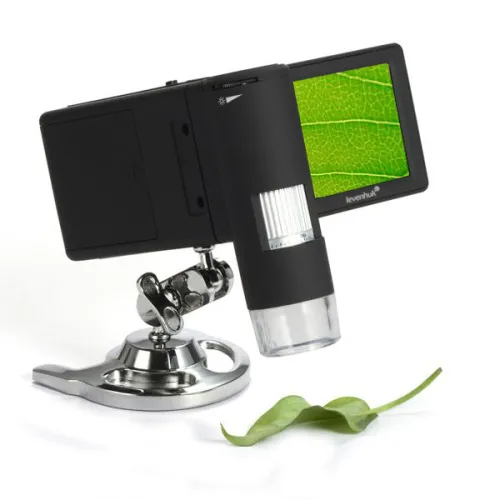

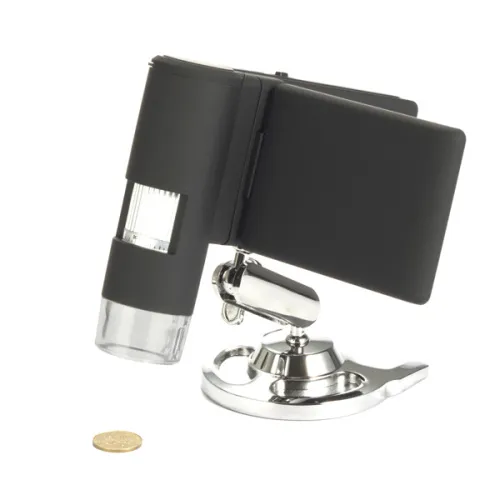

Levenhuk DTX 500 Mobi is a portable microscope with a built-in 3-inch color LCD display. This model produces magnification up to 500x and features smooth digital zoom up to 4x. Levenhuk DTX 500 Mobi is perfectly suited for microscopic observations of any surfaces, both at home and outside. All of this makes this microscope an excellent gift for any schoolchild. A handheld microscope is often used to check the quality of goods in stores and detect any possible mold growing on fruit and vegetables.
Levenhuk DTX 500 Mobi Digital Microscope allows you to easily take pictures and record videos of observed objects. All files created during your observations are stored to the microSD card. All you need to do to transfer your images and videos to your PC is connect the microscope to it using the USB cable included in the kit. The kit also includes special software allowing you to edit created files and perform precise measurements of linear sizes, radiuses and angles with an accuracy of 1 micrometer or better.

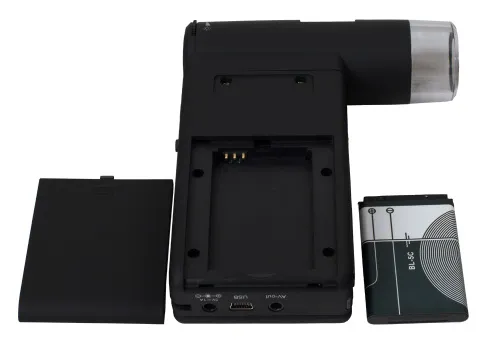

Levenhuk DTX 500 Mobi Digital Microscope is powered by the Li-ion battery included in the kit, which provides for up to 4 hours of standalone work.

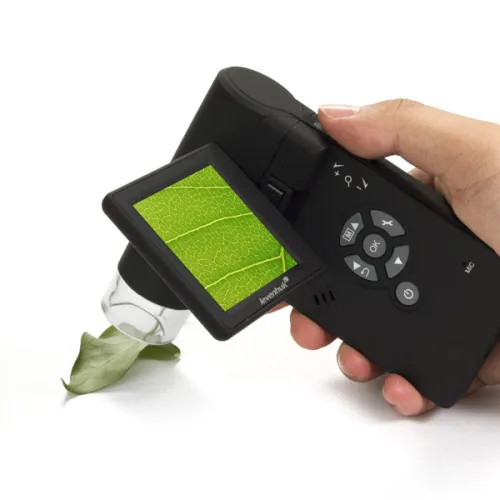

Microscope’s body is rubber-armored, which makes it pleasant to the touch and also provides for a comfortable grip and prevents the device from slipping out of your hands.
Features:

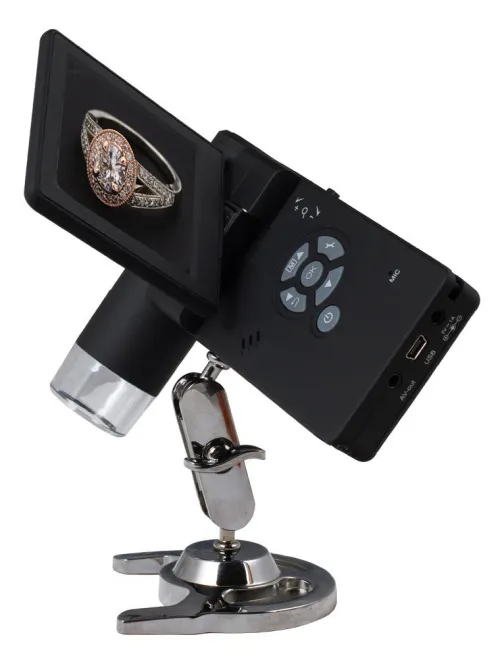

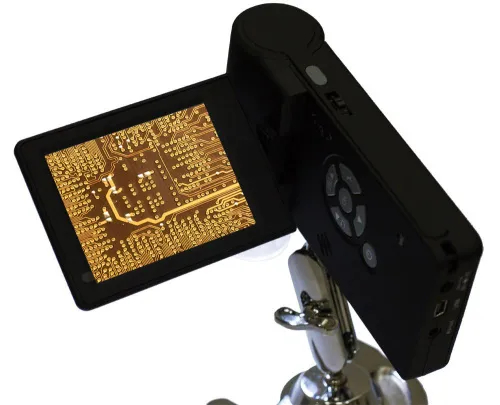

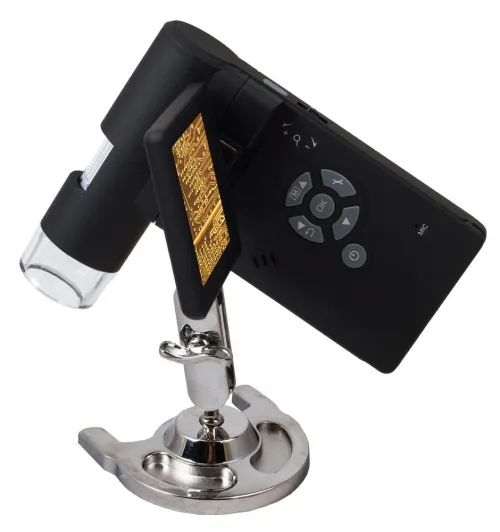

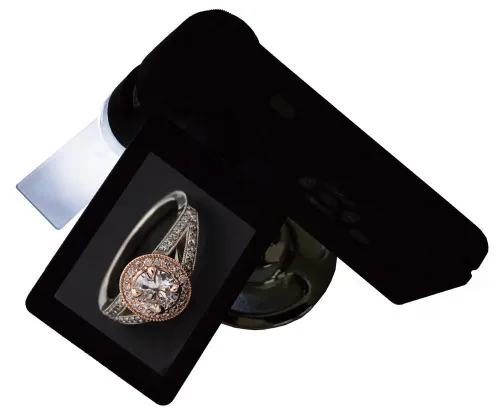

- Rotatable 3" color LCD display
- Support of microSD cards with capacity up to 32 Gb
- PC connection via USB 2.0 interface
- AV output for connecting to TV or projector
- Able to take photos/videos
- Automatic exposure and white balance

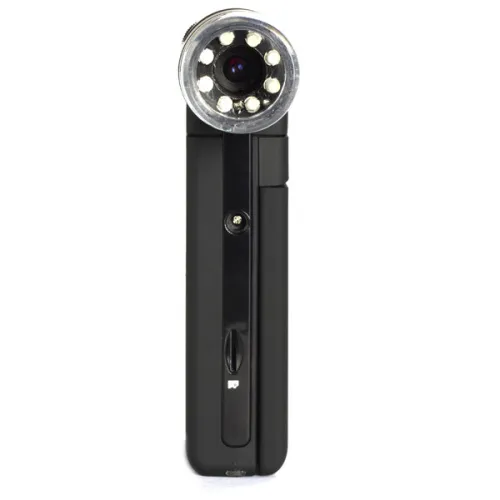

- 8 white LEDs with adjustable brightness
- 4x digital zoom
- Li-ion rechargeable battery
- Comes with special software for measuring linear sizes, areas, angles and radiuses of studied samples
- Сompatible with Windows and Mac OS

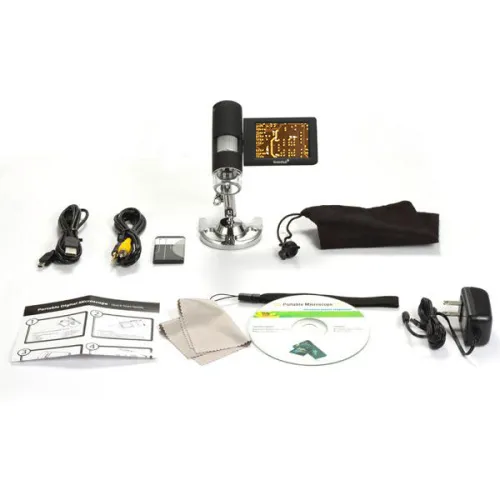

The kit includes:

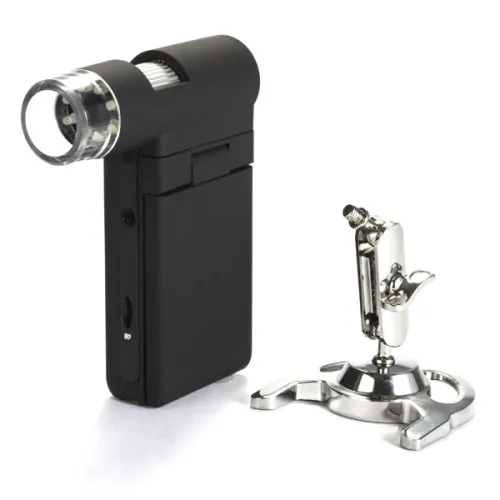

- Levenhuk DTX 500 Mobi Microscope
- Tripod
- Adapter*
- Software CD
- USB cable
- AV cable
- Li-ion rechargeable battery
- Pouch
- Strap
- Cleaning wipe
- User manual and lifetime warranty
Recommendations on using the software:
- In order for the program to operate correctly, please launch the installed application only when your microscope is connected to a PC and ready for observations.
- Once connected to the PC, it does not support the magnification change function.
Levenhuk DTX 500 Mobi Digital Microscope is not compatible with external digital cameras.
* Caution: Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries.
Product ID | 61023 |
Brand | Levenhuk, Inc., USA |
Warranty | lifetime |
EAN | 5905555004327 |
Package size (LxWxH) | 33x7x15 cm |
Shipping Weight | 0.7 kg |
Type | digital, portable |
Head | digital screen/PC monitor |
Optics material | optical glass |
Nozzle | 3" rotatable color LCD screen |
Magnification, x | 20 — 500 |
Focus | manual, 0–30mm |
Body | plastic |
Illumination | LED |
Brightness adjustment | ✓ |
Power supply | 110–240V adapter , 50/60Hz, 5V, 1A output, Li-ion battery 3.7V/1050mAh |
Power supply: batteries/built-in battery | yes |
Additional | battery-operated work: 4 hours; charging time: 5 hours |
Ability to connect additional equipment | supports microSD memory cards up to 32GB (not included) |
User level | beginners, experienced users |
Assembly and installation difficulty level | easy |
Application | for applied research |
Illumination location | upper |
Research method | bright field |
Pouch/case/bag in set | pouch |
Maximum resolution | 12MP, 8MP, 5MP, 3MP, 1.3MP, VGA |
Megapixels | 5 (with interpolation up to 12) |
Video recording | yes |
Image format | *.jpg |
Video format | *.avi |
Frame rate | 30 frames per second |
Software, drivers | photo and video capture and processing software with measurement function |
Output | USB 2.0 |
System requirements | OS Windows 7/8/10, Mac 10.6 ~ 10.15; 1.8GHz Intel P4 and above, 512MB RAM, 32MB video card, USB 2.0, CD-ROM |
