USB digital microscope. Magnification: 20–230x. Digital camera: 2Mpx

Digital screen/PC monitor
The microscope head is a core element of the microscope that you look through to see a magnified sample
20 — 230
How much the size of a sample increases when you observe it through a microscope
Elementary, for applied research
Application and use of the microscope
Availability

Product ID 61020
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555004297
Package size (LxWxH) 6x21x15 cm
Shipping Weight 0.35 kg
Description

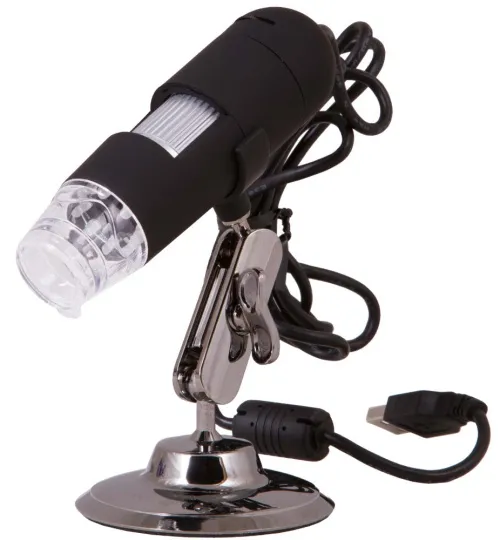

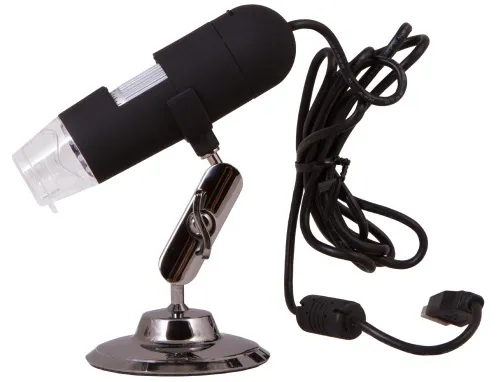

The Levenhuk DTX 30 Digital Microscope is a modern USB digital microscope with a photo and video recording function. It is equipped with a 2Mpx digital camera that provides magnification within the 20-230x range. This model is applicable for many fields of research: electronics, jewelry, biology, zoology, etc.

The microscope connects to a PC or laptop via a standard USB 2.0 port. You can study samples and edit images using image processing software (included in the kit). This software has an intuitive interface: The control panel has buttons for image and video editing, printing the picture, saving the data on a hard drive, and many other functions. For example, such functions as measurement and calibration can measure the length of the sample, perimeter, radius or diameter, and its angles.

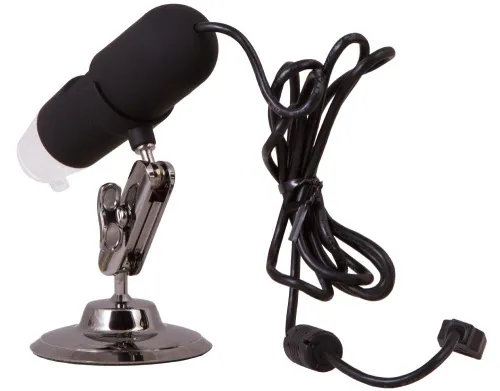

The Levenhuk DTX 30 is very easy to master as it requires no special skills. The compact size of the device makes it very suitable for home use. For better results, it is recommended to mount the microscope on a tripod (included).

The rubberized body of the microscope is pleasant to the touch, and it secures your grip, thereby preventing the device from slipping out of your hands.

Features:

  • 8 white LEDs with adjustable brightness

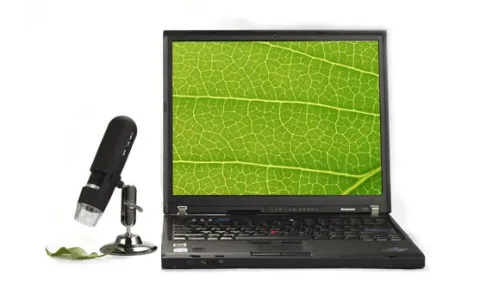

  • Real-time observations on your PC monitor
  • Able to take photos/videos
  • Comes with special software for measuring linear sizes, areas, angles and radiuses of studied samples
  • Wide range of applications
  • Ease of use
  • Сompatible with Windows and Mac OS

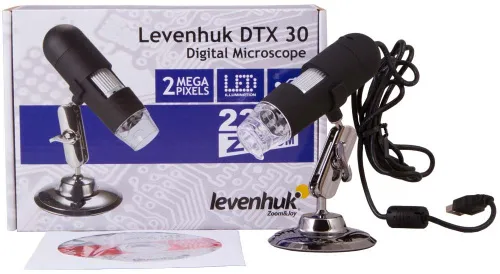

The kit includes:

  • Levenhuk DTX 30 Digital Microscope
  • USB cable

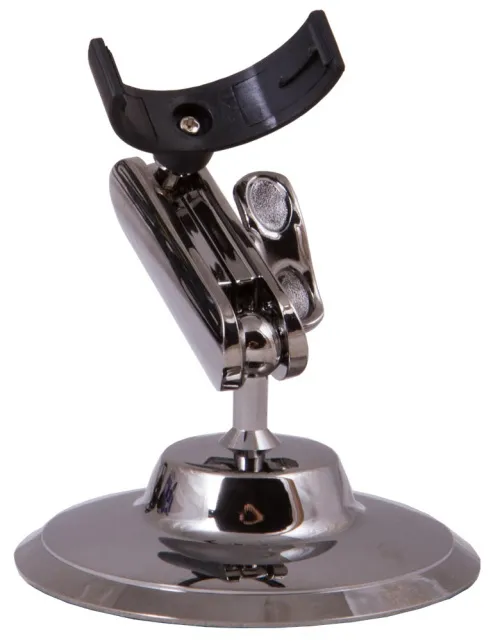

  • Tripod
  • Protective plastic objective lens cap
  • Software CD
  • User manual and lifetime warranty

Recommendations on using the software:

In order for the program to operate correctly, please launch the installed application only when your microscope is connected to a PC and ready for observations.

Levenhuk DTX 30 Digital Microscope is not compatible with external digital cameras.

Specifications
Product ID 61020
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555004297
Package size (LxWxH) 6x21x15 cm
Shipping Weight 0.35 kg
Type digital
Head digital screen/PC monitor
Optics material optical glass
Magnification, x 20 — 230
Focus manual, 0–150mm
Body plastic
Illumination LED
Brightness adjustment
Power supply 5V DC via USB cable
User level beginners, elementary
Assembly and installation difficulty level extremely simple
Image 1600x1200, 1280x720, 640x480
Application elementary, for applied research
Illumination location upper
Research method bright field
Megapixels 2
Video recording yes
Image format *.jpg
Video format *.avi
Software, drivers photo and video capture and processing software with measurement function
Output USB 2.0
System requirements OS Windows 7/8/10, Mac 10.6 ~ 10.15; 1.8GHz Intel P4 and above, 512MB RAM, 64MB video card, USB 2.0, CD-ROM
