Magnification: 40–1600x. A rotatable head with a 2MP digital camera and an LCD screen, achromatic objectives, LED light with a collector

Digital screen/PC monitor
The microscope head is a core element of the microscope that you look through to see a magnified sample
40 — 1600
How much the size of a sample increases when you observe it through a microscope
School/educational
Application and use of the microscope
Availability

Product ID 75433
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555005393
Package size (LxWxH) 36x33x38 cm
Shipping Weight 3.38 kg
Description

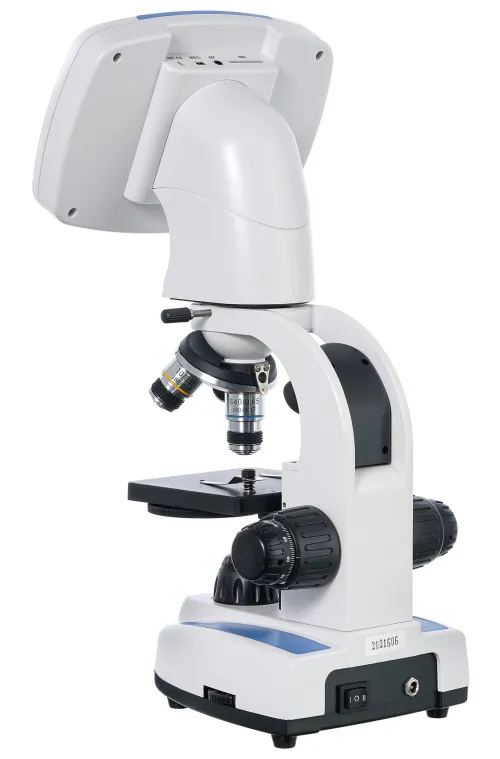

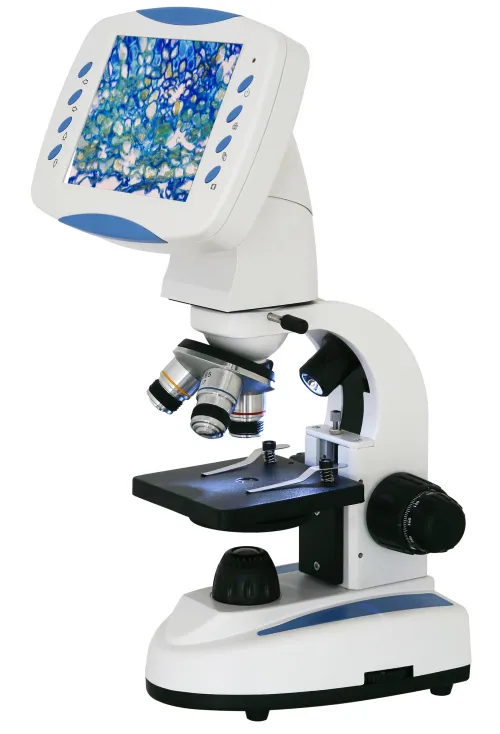

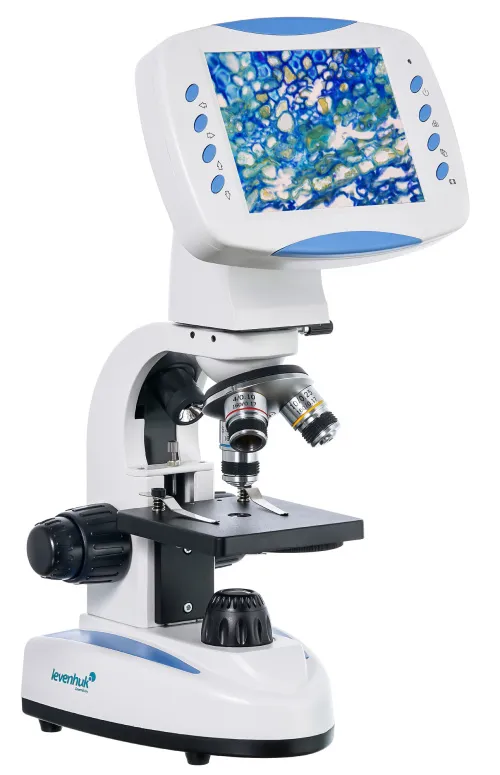

Levenhuk D80L LCD is a digital microscope with a 2MP camera and an LCD screen. The microscope can be used for visual observations and creating photo and video archives. The image is transmitted to the screen in real-time mode, it can be saved to a memory card or transmitted to external devices. The microscope is suitable for studying transparent, semi-transparent, and opaque samples in a bright field.

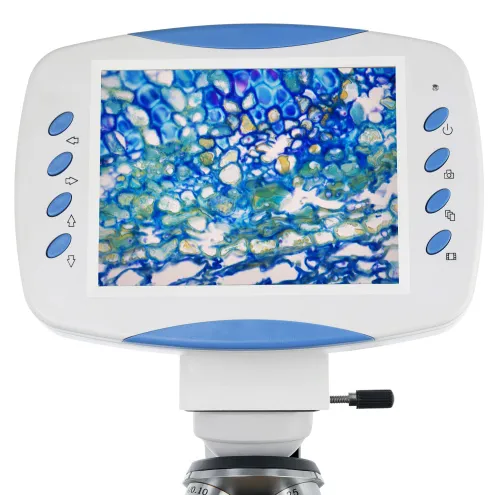

Instead of a standard ocular tube, there is a head with a screen. This is a more comfortable option for lengthy observations since it reduces eyestrain as well as rotator cuff strain. Microscopes with an LCD screen are suitable for home use as well as for laboratory studies. Next to the screen, there are control buttons for operating the digital camera, and on the back, there are slots for connecting a memory card, power source, and other devices.

The digital camera works in tandem with achromatic objectives, the overall magnification of the microscope is from 40x to 1600x. The stage is equipped with standard clips, the illumination is located at the top and bottom; its brightness is adjustable. Directly under the stage, there is a condenser with a diaphragm disk, which is used for more precise lighting adjustment.

All of the optical elements in the microscope are made of glass. The body is made of metal.

Features:

  • Digital camera for photo and video records
  • Image is displayed on an LCD screen in a real time mode
  • Achromatic optics, magnification: 40–400x (optical), up to 1600x (digital)
  • Dual LED light with brightness adjustment
  • Power supply is variable: by batteries or AC power supply

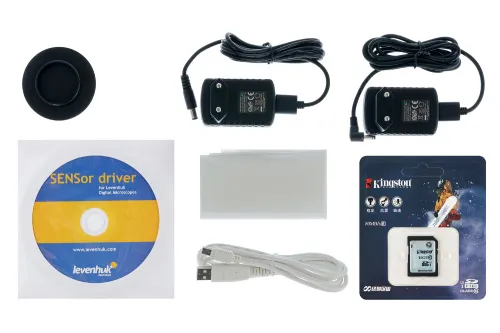

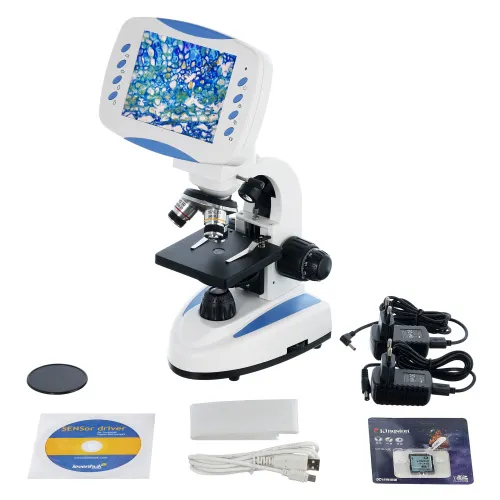

The kit includes:

  • Microscope with a 2MP digital camera and an LCD screen
  • 4x, 10x, 40xs achromatic objectives
  • N.A. 0.65 condenser with a diaphragm disk
  • Power cord
  • Software CD
  • USB cable
  • 16GB SD memory card
  • Adapter and power cord for a camera
  • Dust cover
  • User manual and lifetime warranty
Specifications
Product ID 75433
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555005393
Package size (LxWxH) 36x33x38 cm
Shipping Weight 3.38 kg
Type biological, light/optical, digital
Head digital screen/PC monitor
Optics material optical glass
Nozzle 5.6" rotatable color LCD screen
Magnification, x 40 — 1600

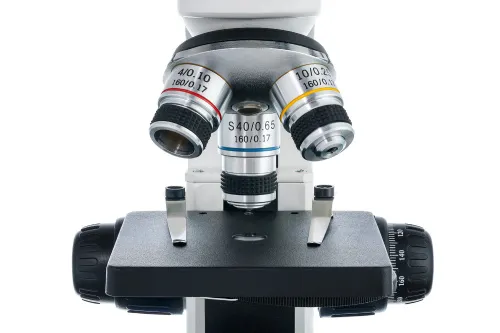

Objectives achromatic: 4x, 10x, 40xs (spring)
Revolving nosepiece for 3 objectives
Stage, mm 90x90
Stage moving range, mm 70/30
Stage features with clips
Condenser N.A. 0.65
Diaphragm diaphragm disc (6 apertures)

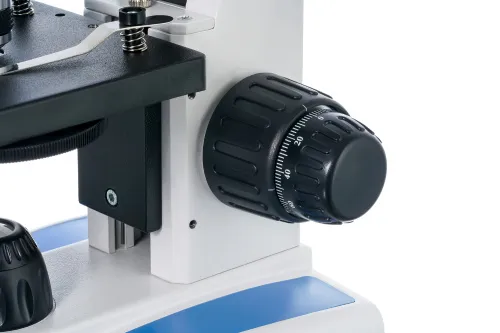

Focus coaxial, coarse (15mm) and fine (0.002mm)
Body metal
Illumination LED
Brightness adjustment
Power supply 3 AA batteries (not included) or 110–240V, via AC adapter (included)
Power supply: batteries/built-in battery yes
Light source type with a collector, 0.2W LED
User level beginners, experienced users
Assembly and installation difficulty level easy
Application school/educational
Illumination location dual
Research method bright field
Digital camera included
Pouch/case/bag in set dust cover
Maximum resolution 1600x1200
Megapixels 2
Sensor element 1/3"
Pixel size, μm 2.8x2.8
Video recording yes
Image format *.jpg
Video format *.avi
Spectral range, nm 400–950
White balance automatic
Exposure control automatic
Sensitivity, V/lux-sec@550nm 1
Frame rate 30 frames per second
Usage location microscope stand

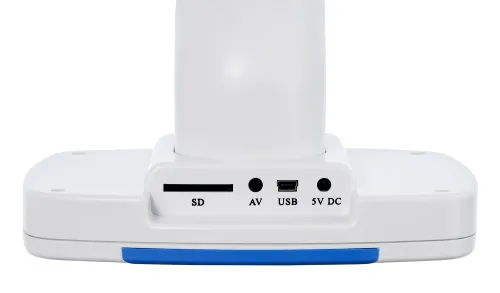

Output SD card slot, AV, mini-USB, power cable slot
System requirements Windows 7 and below
Camera power supply 5V, 1A, via a network adapter
