Magnification: 60–1500x. A rotatable head with a 2MP digital camera and an LCD screen, achromatic objectives, and an LED light with a collector

Colour Base color
Margin:
Discount:
Retail price:
The price is valid only for the online store and may differ from the prices in retail stores.
Availability
Specifications
All specifications
Accessories

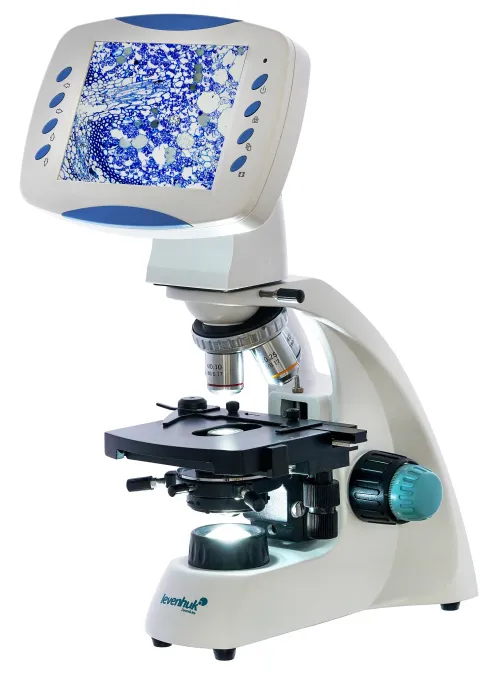

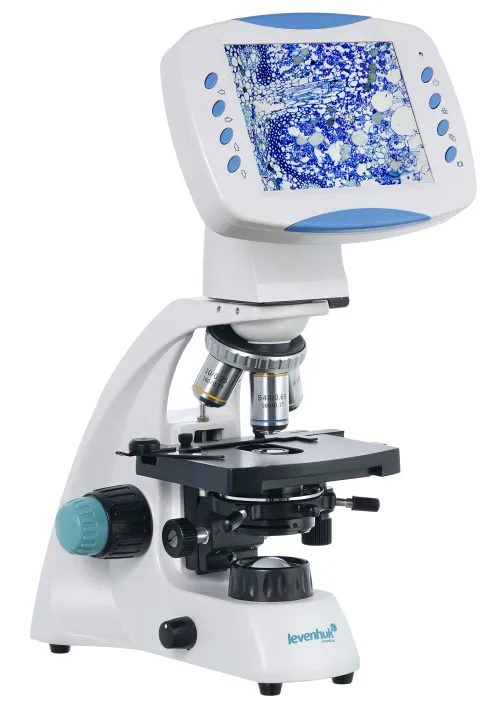

Levenhuk D400 LCD is a digital microscope, which is a perfect choice for working in a medical or scientific research laboratory. It features a 2MP camera with an LCD screen instead of a standard eyepiece. An image from an objective is transmitted to the screen, which makes lengthy observations of samples more convenient for a researcher. Moreover, the camera allows for taking pictures, recording videos, saving data to a memory card, or transmitting an image to an external screen (additional accessories are required that are purchased separately).

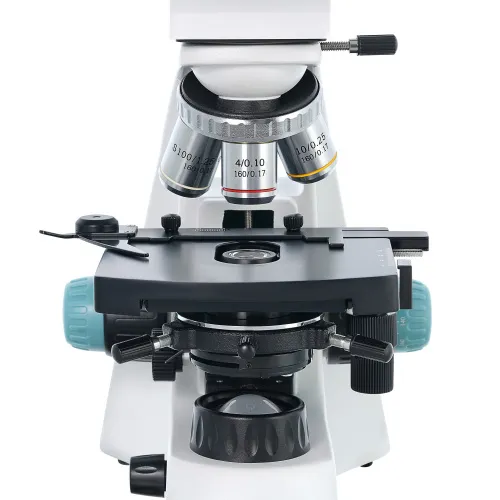

This microscope provides magnification in a range from 60x to 1500x, which allows for studying smallest sample structures, including bacteria. The revolving nosepiece contains four achromatic objectives with 4x, 10x, 40x, and 100x magnification. The 40x and 100x objectives feature spring-loaded frames that protect the front lens from accidental damage. An oil immersion method can be applied using a 100x objective.

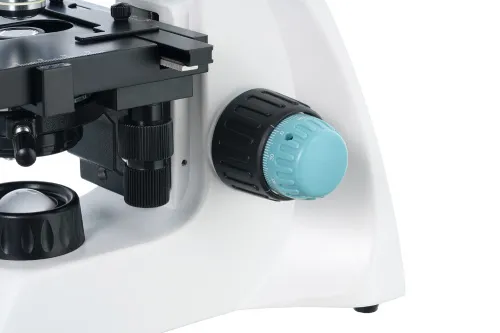

Right underneath a revolving nosepiece, there is a stage with a mechanical scale. By both sides of the stage, there are coarse and fine focusing knobs. The lighting system is located in the lower part and consists of an Abbe condenser with an iris diaphragm and filter holder, LED light, and collector. The brightness of the lighting is adjustable.

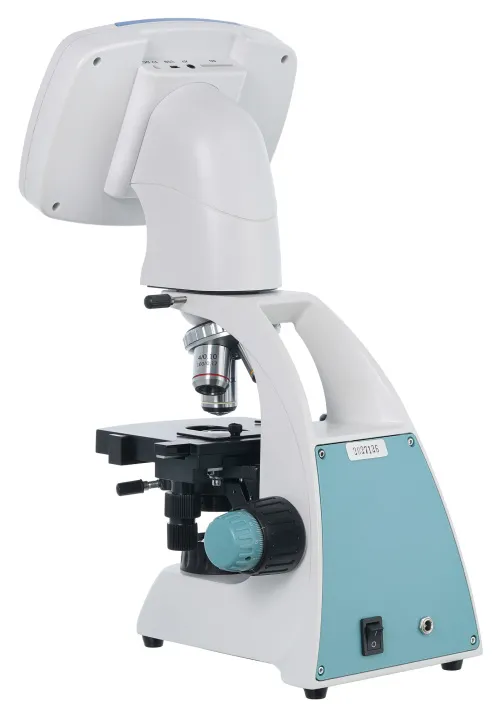

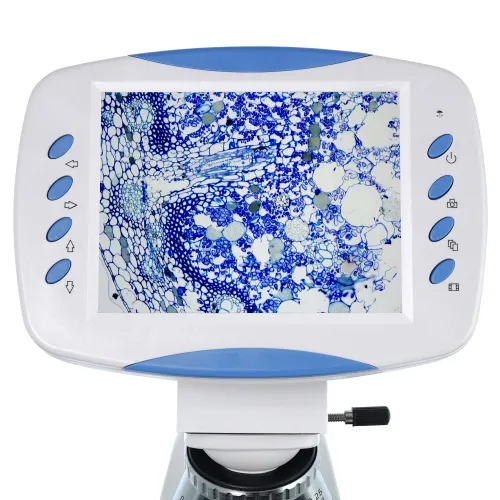

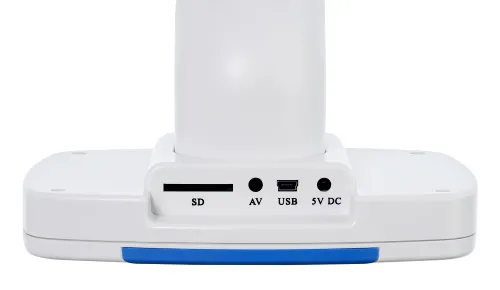

Let's proceed to a digital camera and LCD screen. The camera allows for recording images and videos in the most common formats. A high frame rate and resolution provide a clear and detailed image. The camera control buttons are located next to the screen. On the back, there are slots for connecting the microscope to external devices, and there is also a slot for a memory card.

Features:

  • Laboratory microscope with a magnification range from 60x to 1500x
  • Achromatic optics, 2MP digital camera with a rotatable LCD screen
  • Observations in a bright field and using oil immersion
  • Lower LED lighting with a collector and brightness adjustment
  • Power supply is variable: by batteries or AC power supply

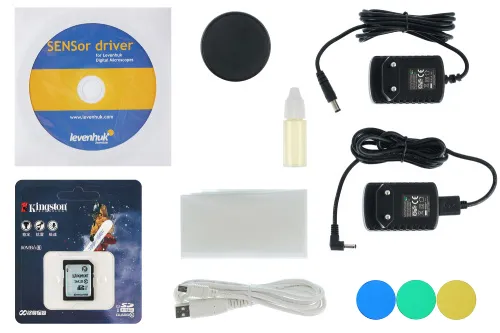

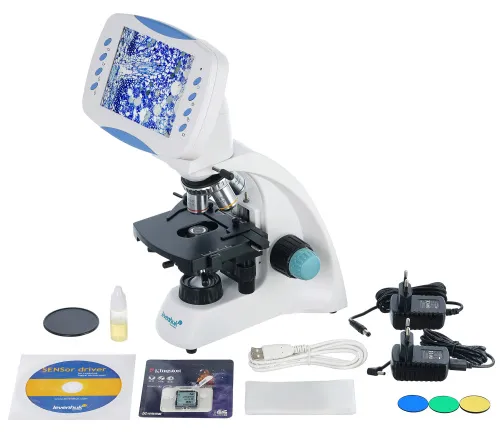

The kit includes:

  • Microscope with a 2MP digital camera and an LCD screen
  • 4x, 10x, 40xs, 100xs (oil) achromatic objectives
  • Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder
  • Charging power cord
  • Vial of immersion oil
  • Filters: blue, green, yellow
  • Software CD
  • USB cable
  • 16GB SD memory card
  • Adapter and power cord for a camera
  • Dust cover
  • User manual and lifetime warranty
