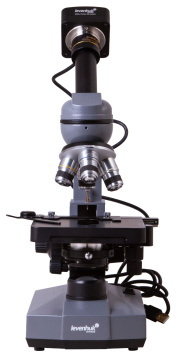

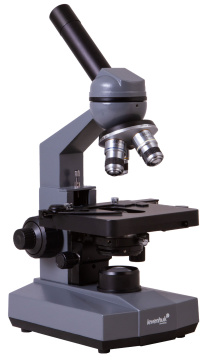

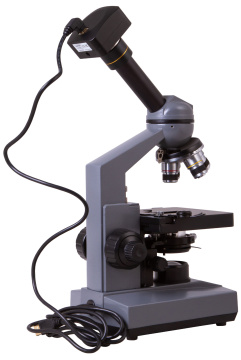

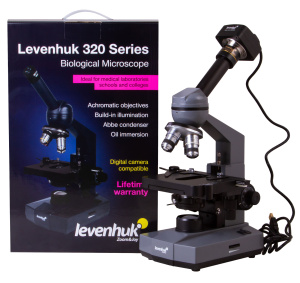

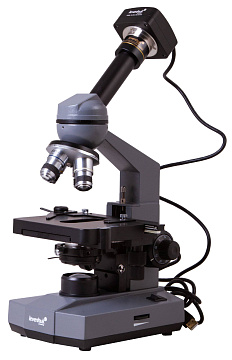

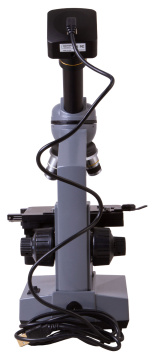

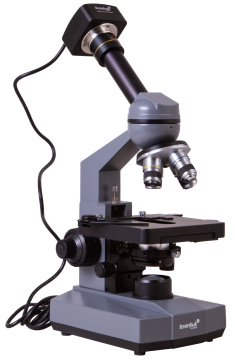

Levenhuk D320L PLUS 3.1M Digital Monocular Microscope
Monocular laboratory microscope with a digital camera and LED illumination. Magnification: 40–1600x
Levenhuk D320L PLUS is a microscope with a 3.1M digital camera. The microscope is designed for conducting professional laboratory research. Moreover, it is an excellent choice for holding lectures and seminars in colleges and universities. The microscope is suitable for visual observations and, what's more, it allows for recording and saving them as pictures or videos. All the necessary accessories are already included in the kit.

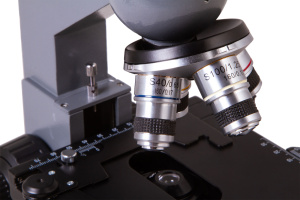

This microscope comes with a classic monocular 360° rotatable head. Two eyepieces with different magnification allow for changing magnification power. Each wide-angle eyepiece features a pointer. The objectives are achromatic, you can use a 100x objective for oil immersion (a bottle with immersion oil is included in the kit). Observations are performed in the transmitted light. The optics feature a 40–1600x magnification range.

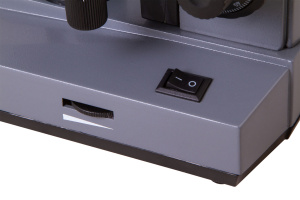

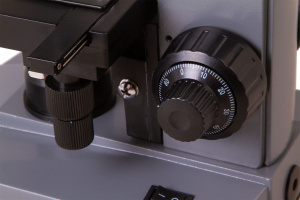

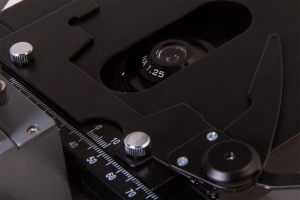

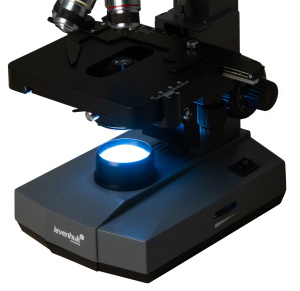

To adjust the sharpness, a coaxial mechanism of coarse and fine focusing adjustment is used. A stage can be moved along two axes. It is equipped with a mechanical scale. Under the stage, there is an Abbe condenser with iris diaphragm and LED illumination with adjustable brightness. The illumination can be powered by an AC supply as well as by batteries.

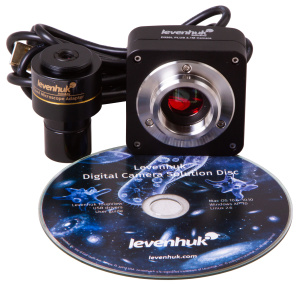

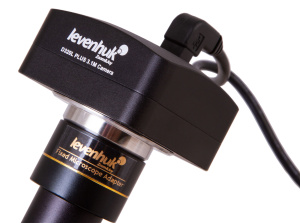

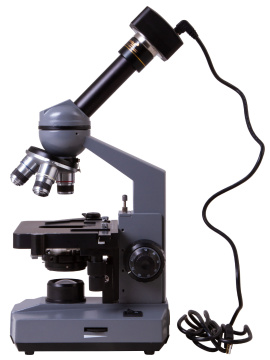

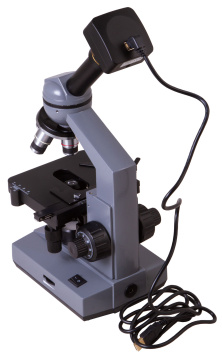

A 3.1M digital camera is connected to a computer with a USB cable. A special software program included in the kit allows for shooting videos, taking pictures, and processing them. The maximum image resolution is 2048x1536 pixels. A camera is installed in the optical tube instead of an eyepiece.
- Monocular microscope with 40–1600x magnification
- 3.1M digital camera is included in the kit
- Achromatic objectives, wide-angle eyepieces with a pointer
- 0.75W LED illumination with brightness adjustment
- Powered by an AC supply or batteries

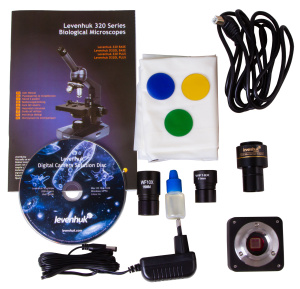

The kit includes:
- Achromatic objective lenses: 4x, 10x, 40x, and 100x (oil immersion)
- Wide-angle eyepieces with a pointer: WF10x and WF16x
- Filters: blue, green, yellow
- Bottle of immersion oil
- AC adapter
- Dust cover
- Digital camera
- Camera adapter
- USB cable for camera
- Software CD
- User manual and lifetime warranty
Caution! Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries. Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter.
You can see that under a microscope:

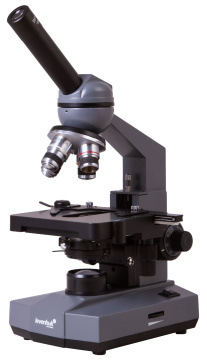

Levenhuk D320L PLUS Microscope is compatible with Levenhuk digital cameras (purchased separately). Levenhuk cameras are installed in the eyepiece tube instead of an eyepiece.
