Monocular laboratory microscope with a digital camera and halogen illumination. Magnification: 40–1000x

Colour Base color
Margin:
Discount:
Retail price:
The price is valid only for the online store and may differ from the prices in retail stores.
Availability
Future arrivals
20 June 2022
20+
Specifications
All specifications
Accessories

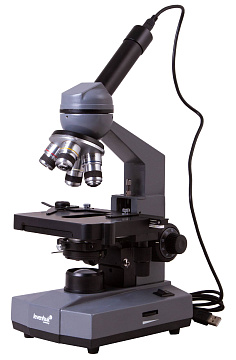

Levenhuk D320L BASE is a digital microscope with a 3M camera. It is great for performing observations in medical and clinical and diagnostic laboratories, holding seminars and lectures in academies and universities as well as in colleges, creating digital observational records. This microscope is very interesting to specialists of different scientific fields. It will become an excellent choice for professional microscopy observations.

Levenhuk D320L BASE is a monocular microscope with a 360° rotatable head. A wide-angle 10x eyepiece and four achromatic objectives of different magnifications are used for observations. The magnification range varies from 40x to 1000x. You can apply oil immersion at maximum magnification (when using a 100x objective). A bottle of immersion oil comes included in the kit.

The illumination system is located in the lower part of the microscope. It consists of a powerful halogen lamp with adjustable brightness and an Abbe condenser with an iris diaphragm. Illumination is powered by an AC supply. You can use light filters for adjusting image contrast. Specimens are fixed on a stage, which is equipped with a mechanical scale. Sharpness adjustment is performed by rotating coarse and fine focusing adjustment knobs.

The kit includes a 3M digital camera. It allows for transmitting an image from a microscope to an external screen, e.g. a computer screen. You can make videos, take snapshots and process them with a special software program (an installation CD is included). The camera is powered by a computer with the help of a USB cable.

Features:

  • Laboratory microscopes for observations in the transmitted light
  • Rotatable monocular head, achromatic optics
  • Magnification range: 40–1000x
  • 3M digital camera is included in the kit
  • 20W halogen illumination with brightness adjustment powered by an AC supply

The kit includes:

  • Microscope
  • Achromatic objective lenses: 4x, 10x, 40x and 100x (oil immersion)
  • Wide-angle WF10x eyepiece
  • Blue filter
  • Bottle of immersion oil
  • AC adapter
  • Dust cover
  • Digital camera
  • USB cable for camera
  • Software CD
  • User manual and lifetime warranty

Some things you can see under a microscope:

Levenhuk D320L BASE Microscope is compatible with Levenhuk digital cameras (purchased separately). Levenhuk cameras are installed in the eyepiece tube instead of an eyepiece.
