Magnification: 40–1000x. Infinity plan achromatic objectives, light source – LED 3W, stage with two specimen holders, Köhler illumination

Trinocular
The microscope head is a core element of the microscope that you look through to see a magnified sample
40 — 1000
How much the size of a sample increases when you observe it through a microscope
Laboratory/medical
Application and use of the microscope
Availability

Product ID 24613
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555004471
Package size (LxWxH) 52x39x32 cm
Shipping Weight 9.12 kg
Description

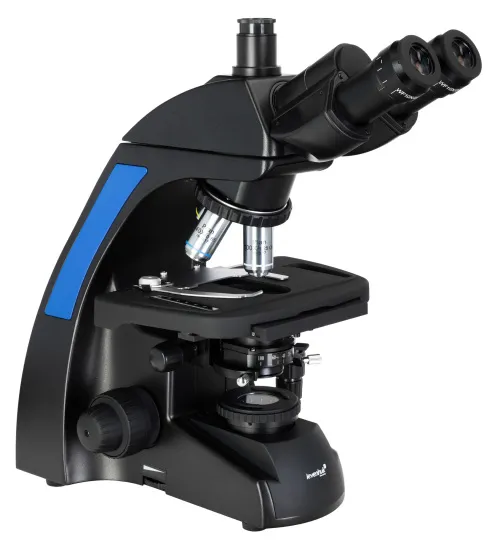

The Levenhuk 870T is a trinocular biological microscope for brightfield observations in transmitted light. It is used in different types of medical centers for urological, dermatological, biological, biochemical, anatomopathological, cytological, and general clinical laboratory research. The microscope can be equipped with a digital camera to output images to an external screen, take photos, and record video. The camera must be purchased separately and is installed in the trinocular tube.

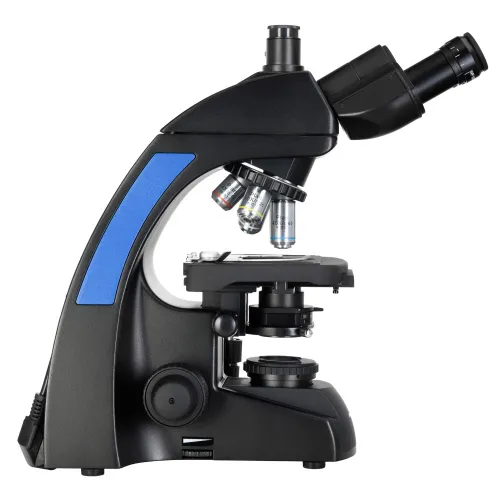

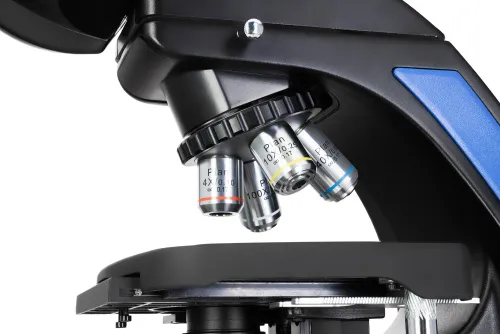

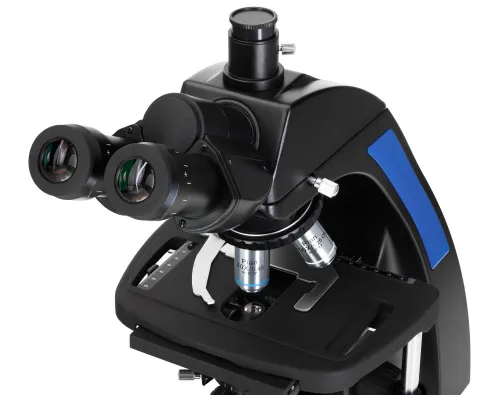

The head can also be tilted 30°. This tilt is comfortable for long-term work. The interpupillary distance is adjustable. The eyepieces have a wide field of view, and so it is convenient for the user to work with large samples. Four plan achromatic objectives are mounted in a revolving nosepiece that is oriented toward the interior. In this position, you can see the objective, and the space above the table is free.

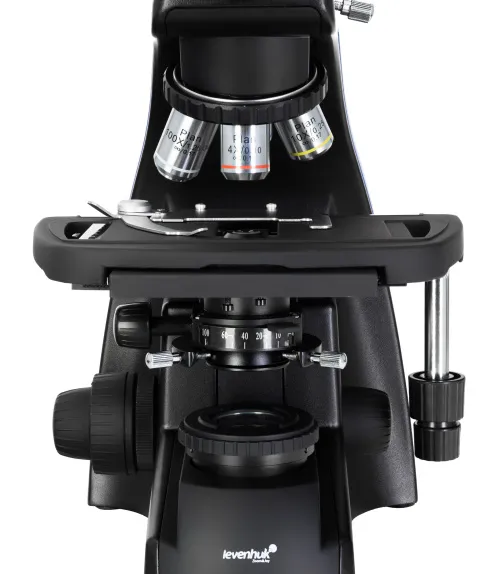

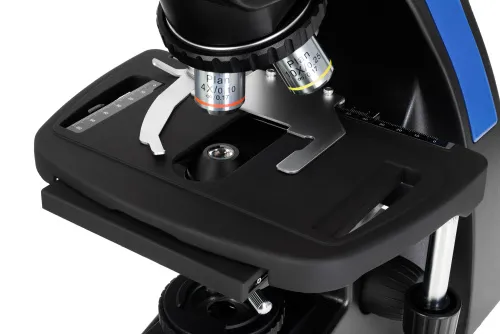

There is no positioning rack on the stage and that improves the ergonomics of the device. The horizontal stage knob is located low for user comfort. The specimen holder is designed for two samples. The focusing knobs allow for coarse and fine focusing adjustment. All of the stage movements are smooth with no jerkiness.

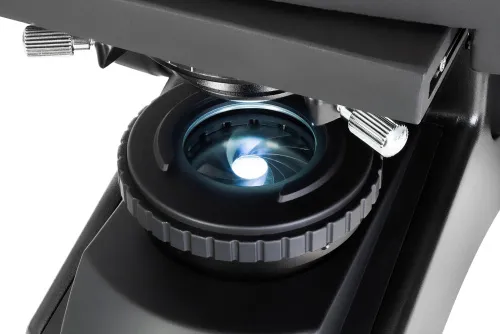

The light source is located under the stage and the Abbe condenser. The LED is brightness-controlled and is powered by 220V. Thanks to LED illumination, the resolution of the microscope is higher than that of analogs with halogen bulbs. Both aperture and field diaphragms make it possible to set up the Köhler illumination.

Key features:

  • For brightfield microscopy in transmitted light at magnifications from 40 to 1000x
  • Trinocular head with a vertical tube for mounting a digital camera
  • Plan achromatic objectives, wide-field eyepieces, revolving nosepiece oriented toward the interior
  • Light source: LED, Köhler illumination, powered by AC power supply
  • No positioning rack, two specimen holders, coarse and fine focusing
  • Retractable collector for easy LED replacement

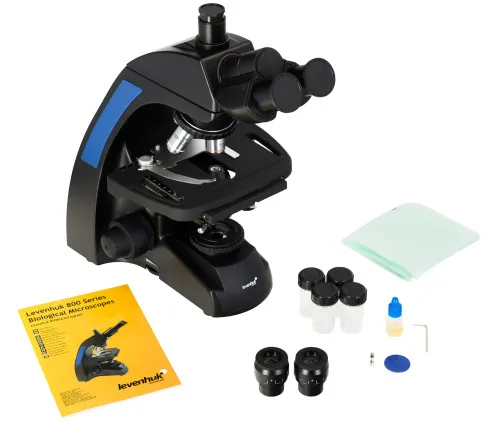

The kit includes:

  • Microscope base, revolving nosepiece, condenser, stage, built-in transmitted light illuminator and power supply
  • Trinocular head
  • Plan achromatic objectives: 4x, 10x, 40xs, 100xs (oil)
  • Eyepiece WF10x/22 mm (2 pcs.)
  • Blue filter
  • Bottle of the immersion oil
  • AC adapter
  • Dust cover
  • User manual and warranty card

Caution: Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries.

Some things you can see under a microscope:

The photo shows slides from Levenhuk ready-made specimen kits.

The Levenhuk 870T microscope is compatible with Levenhuk digital cameras (not included). Levenhuk cameras are installed in the eyepiece tube instead of an eyepiece.

Specifications
Product ID 24613
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555004471
Package size (LxWxH) 52x39x32 cm
Shipping Weight 9.12 kg
Type biological, light/optical
Head trinocular
Optics material optical glass
Nozzle 360 ° rotatable
Head inclination angle 30 °
Magnification, x 40 — 1000
Eyepiece tube diameter, mm 30mm (binocular head), 23.2 mm (third vertical tube)
Eyepieces WF10x/22mm (2 pcs.)
Objectives planachromat: 4x, 10x, 40xs, 100xs (oil immersion)
Revolving nosepiece for 4 objectives
Interpupillary distance, mm 48 — 75
Stage, mm 210x150
Stage moving range, mm 75/55
Stage features with specimen holders, two-axis mechanical stage, without a positioning rack
Eyepiece diopter adjustment, diopters ±5
Condenser Abbe N.A. 1.25
Diaphragm built-in aperture and field

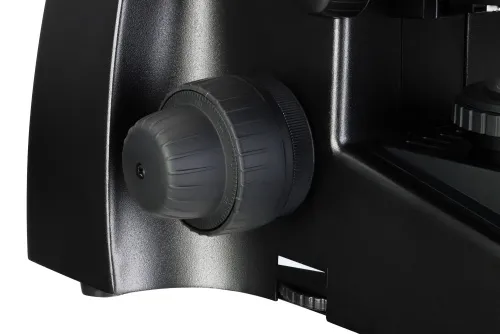

Focus coaxial, coarse (24mm) and fine (0.002mm)
Body metal
Illumination LED
Brightness adjustment

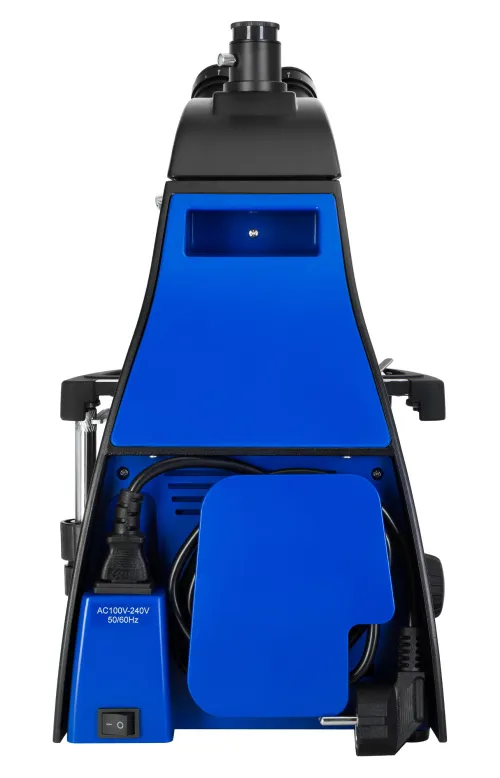

Power supply 110–220V
Light source type 3W LED
Light filters blue
User level experienced users
Assembly and installation difficulty level easy
Application laboratory/medical
Illumination location lower
Research method bright field
Pouch/case/bag in set dust cover
