Magnification: 40–1000x. Infinity plan achromatic objectives, light source – LED 3W, stage with two specimen holders, Köhler illumination

Binocular
The microscope head is a core element of the microscope that you look through to see a magnified sample
40 — 1000
How much the size of a sample increases when you observe it through a microscope
Laboratory/medical
Application and use of the microscope
Availability

Product ID 24611
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555004464
Package size (LxWxH) 52x39x32 cm
Shipping Weight 8.9 kg
Description

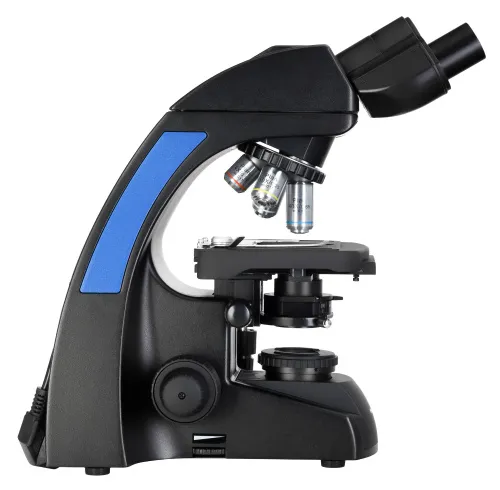

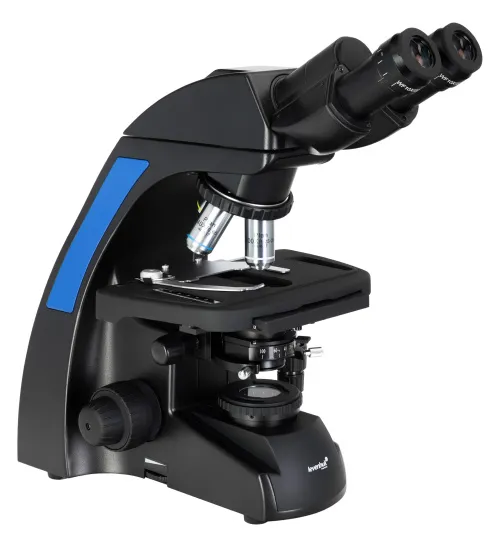

The Levenhuk 850B is a binocular biological microscope with plan achromatic optics for brightfield observations in transmitted light. It is used in various types of medical centers for urological, dermatological, biological, biochemical, anatomopathological, cytological, and general clinical laboratory research.

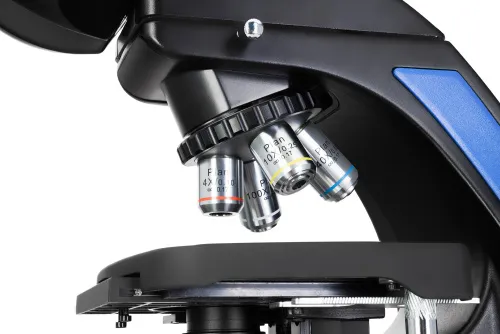

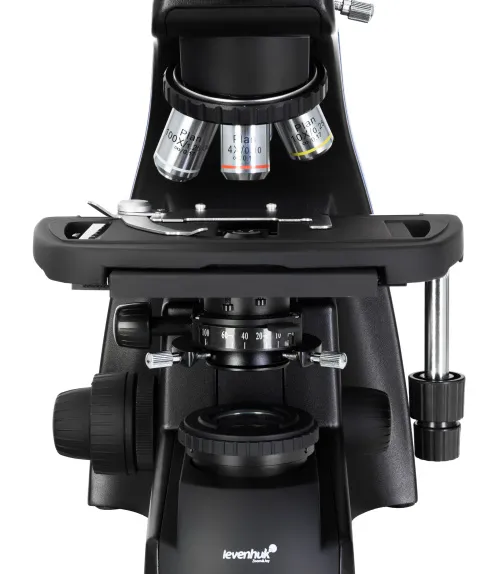

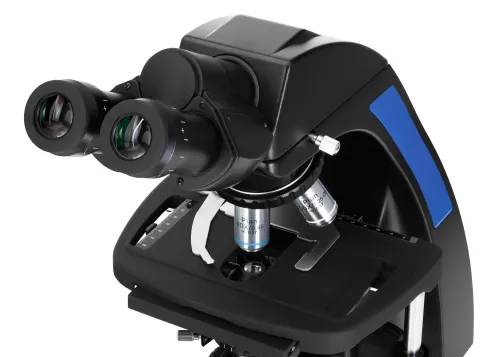

The microscope is equipped with a 360º rotatable binocular head with a 30º inclination angle and a 4-objective revolving nosepiece. The revolving nosepiece with objectives is oriented toward the interior – the user can see the objective inserted into the optical path, and the space above the stage is free. The interpupillary distance is adjustable over a wide range. 10x eyepieces with a 22mm field of view are included in the set, which allows you to view a large area of the specimen.

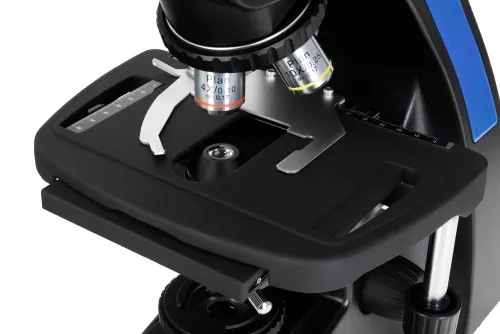

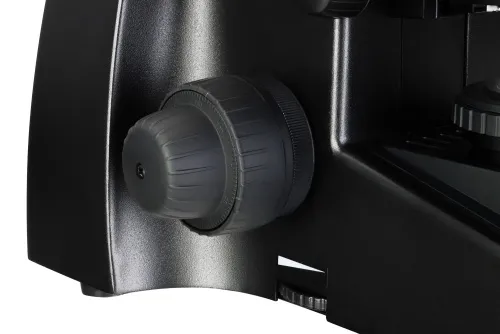

The focusing of the microscope is adjusted by coarse and fine focusing knobs. The focusing knobs move the stage in the vertical plane and also move it horizontally along two mutually perpendicular axes. The stage does not have a positioning rack. The low positioned stage knob enhances the user experience. The specimen holder is designed for two samples. Thanks to the soft focusing adjustment and stage movement mechanism, it is moved smoothly and effortlessly.

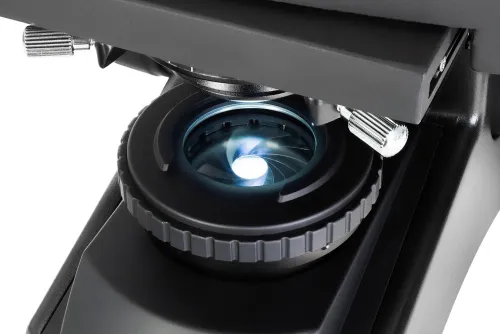

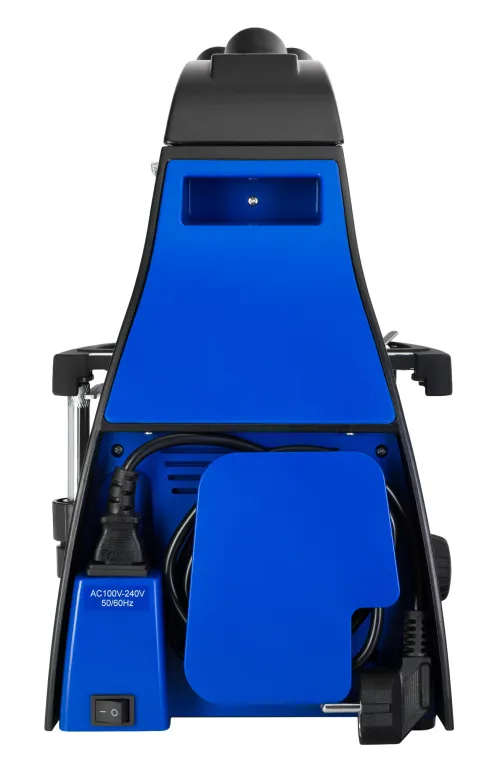

The use of an LED light source increases the resolution of the microscope. The LED is mounted in the base, it is brightness-adjustable, and it lasts a long time before needing a replacement. The aperture and field diaphragms allow for the Köhler illumination method. The illuminator is powered by an AC power supply (220V power cord is included).

Key features:

  • Binocular head, digital camera mounted in one of the eyepiece tubes
  • Magnification range: 40–1000x, plan aromatic optics
  • Abbe condenser, aperture and field diaphragms, Köhler illumination
  • Stage without a positioning rack and with two specimen holders
  • Coaxial coarse and fine focusing mechanism
  • LED illumination (transmitted light) with brightness adjustment
  • Retractable collector for easy LED replacement
  • AC power supply

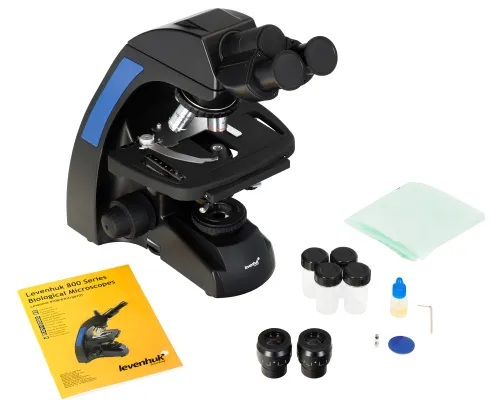

The kit includes:

  • Microscope base, revolving nosepiece, condenser, stage, built-in transmitted light illuminator, and power supply
  • Binocular head
  • Plan achromatic objectives: 4x, 10x, 40xs, 100xs (oil)
  • Eyepiece WF10x/22mm (2 pcs.)
  • Blue filter
  • Bottle of the immersion oil
  • AC adapter
  • Dust cover
  • User manual and warranty card

Caution: Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries.

Some things you can see under a microscope:

The photo shows slides from Levenhuk ready-made specimen kits.

The Levenhuk 850B microscope is compatible with Levenhuk digital cameras (not included). Levenhuk cameras are installed in the eyepiece tube instead of an eyepiece.

Specifications
Product ID 24611
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555004464
Package size (LxWxH) 52x39x32 cm
Shipping Weight 8.9 kg
Type biological, light/optical
Head binocular
Optics material optical glass
Nozzle 360 ° rotatable
Head inclination angle 30 °
Magnification, x 40 — 1000
Eyepiece tube diameter, mm 30
Eyepieces WF10x/22mm (2 pcs.)
Revolving nosepiece for 4 objectives
Interpupillary distance, mm 48 — 75
Stage, mm 210x150
Stage moving range, mm 75/55
Stage features mechanical double-layer, with specimen holders, two-axis mechanical stage, without a positioning rack
Eyepiece diopter adjustment, diopters ±5
Condenser N.A. 1.25
Diaphragm built-in aperture and field
Focus coaxial, coarse (24mm) and fine (0.002mm)
Body metal
Illumination LED
Brightness adjustment
Power supply 110–220V
Light source type 3W LED
Light filters blue
User level experienced users
Assembly and installation difficulty level easy
Application laboratory/medical
Illumination location lower
Research method bright field
Pouch/case/bag in set dust cover
