Magnification: 20x. Stereo microscope with 65mm working distance

Binocular
The microscope head is a core element of the microscope that you look through to see a magnified sample
20
How much the size of a sample increases when you observe it through a microscope
Elementary, for applied research
Application and use of the microscope
Availability
Future arrivals
6 April 2025
20+

Product ID 70404
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555004563
Package size (LxWxH) 13x17x26 cm
Shipping Weight 0.76 kg
Description

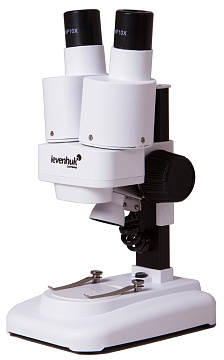

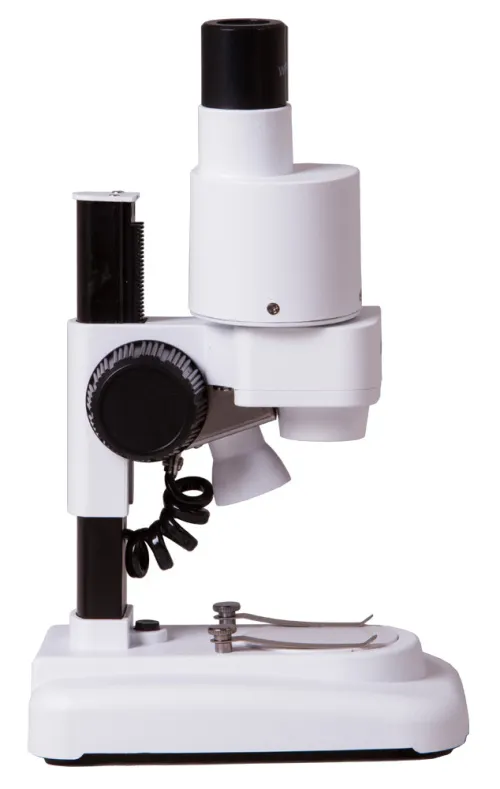

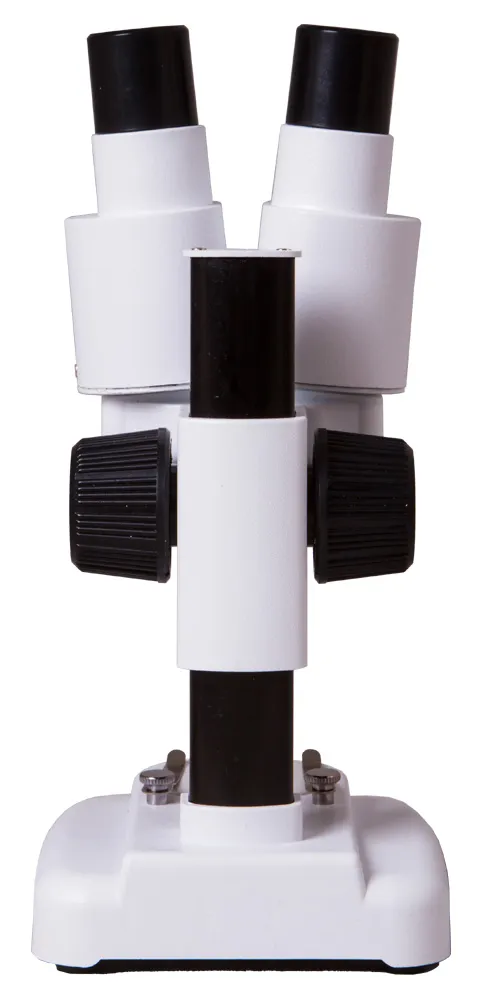

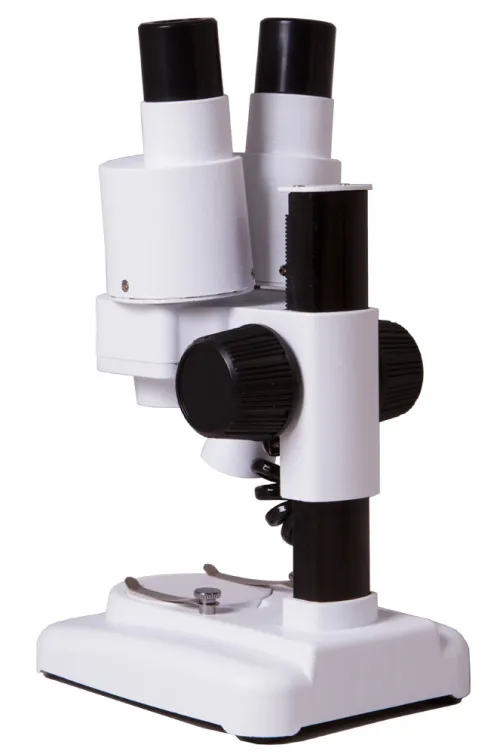

Levenhuk 1ST Microscope is an instrumental microscope that provides a three-dimensional image. Thanks to the large working distance of 65mm, it can be used to study large samples: coins, minerals, pieces of rock, precious stones, etc. The microscope will come in handy for all fans of nature, archaeologists, biologists, and collectors.

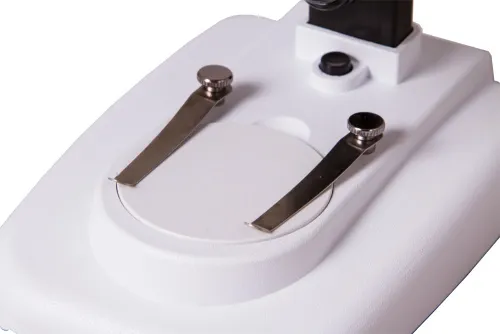

The microscope lenses are made of highly transparent optical glass for you to be able to view the small details of the specimens. The optics provide a fixed magnification of 20x, which is sufficient for detecting various defects on surfaces or examining biological samples. You can fix the studied specimens on the round stage (white plate) with metal clips.

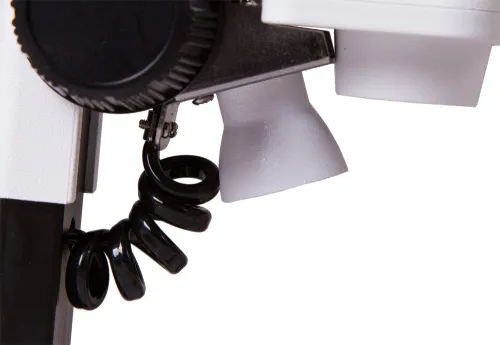

To make precise sharpness adjustments, you can use coarse focusing. Powered by two AA batteries, the upper LED lights can be turned on for working at night in complete darkness (batteries are not included).

Features:

  • Stereo microscope
  • Large working distance

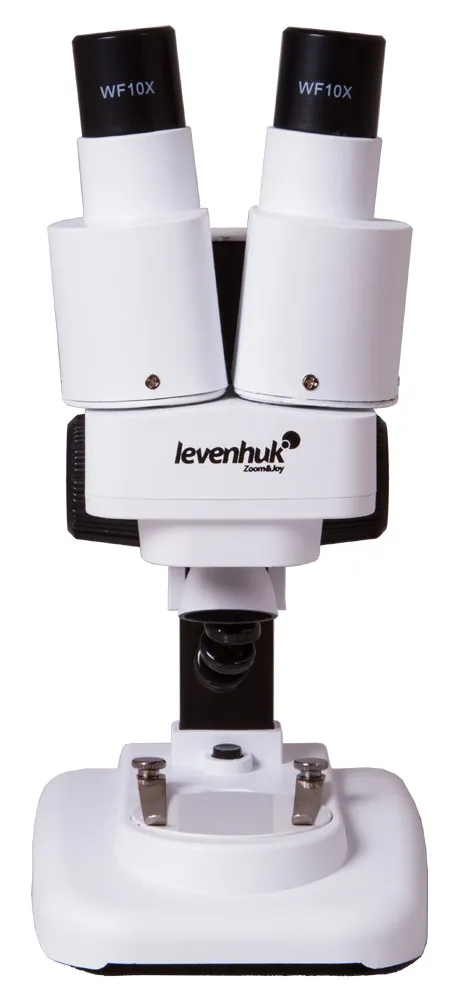

  • Convenient binocular head
  • Upper LED illuminator
  • Battery-powered
  • Storage case included

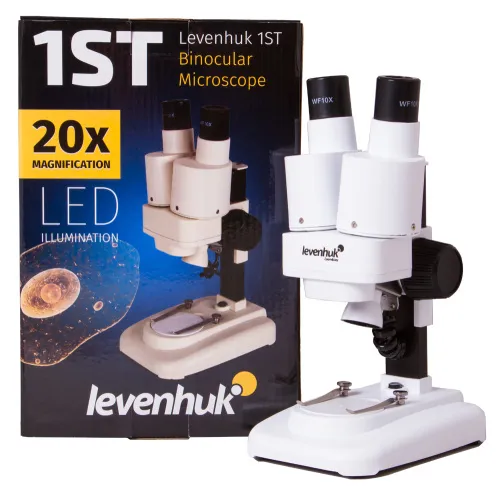

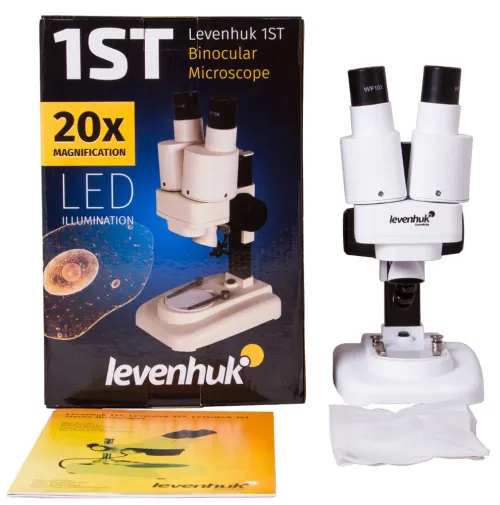

The kit includes:

  • Levenhuk 1ST microscope
  • Binocular head

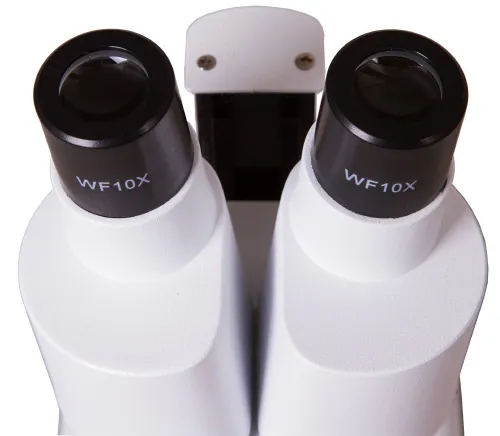

  • WF10x eyepiece – 2 pieces
  • 2x objective lens
  • Case
  • White stage plate
  • User manual and lifetime warranty

Levenhuk Levenhuk 1ST stereo microscope is compatible with Levenhuk digital cameras (purchased separately). Levenhuk digital cameras are installed in the eyepiece tube instead of the eyepiece.

Specifications
Product ID 70404
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555004563
Package size (LxWxH) 13x17x26 cm
Shipping Weight 0.76 kg
Type stereo/instrumental
Head binocular
Optics material optical glass
Nozzle fixed (non-rotatable)
Head inclination angle not angled
Magnification, x 20
Eyepiece tube diameter, mm 23.2
Eyepieces WF10x (2 pcs.)
Objectives 2x
Working distance, mm 65
Interpupillary distance, mm 55 — 75
Stage, mm Ø50
Stage moving range, mm fixed
Stage features with clips, white plate
Focus coarse: 35mm
Body plastic
Illumination LED
Power supply 2 AA batteries (not included)
Power supply: batteries/built-in battery yes
Light source type 3V/0.06W LED
Operating temperature range, °C -5...+40
User level elementary, beginners
Assembly and installation difficulty level extremely simple
Application elementary, for applied research
Illumination location upper
Research method bright field
Pouch/case/bag in set dust cover
