USB microscope for applied works. Magnification: 10–300x. Digital camera: 5Mpx

Digital screen/PC monitor
The microscope head is a core element of the microscope that you look through to see a magnified sample
10 — 300
How much the size of a sample increases when you observe it through a microscope
For applied research
Application and use of the microscope
Availability
Future arrivals
4 April 2025
20+

Product ID 78160
Brand Discovery
Warranty 10 years
EAN 5905555012018
Package size (LxWxH) 22x17x13 cm
Shipping Weight 0.915 kg
Description

discovery_logo_02

Discovery Channel informs, entertains and inspires its audiences around the globe about the world in all its wonder, diversity and amazement. Offering millions of people the chance to discover, and satisfy their curiosity, Discovery offers a compelling mix of stories across genres including science and technology, exploration, adventure, history and in depth behind-the-scenes glimpses at the people, places and organisations that shape and share the world we live in.

We proudly present the Discovery optics series that is produced by Levenhuk and endorsed by Discovery.

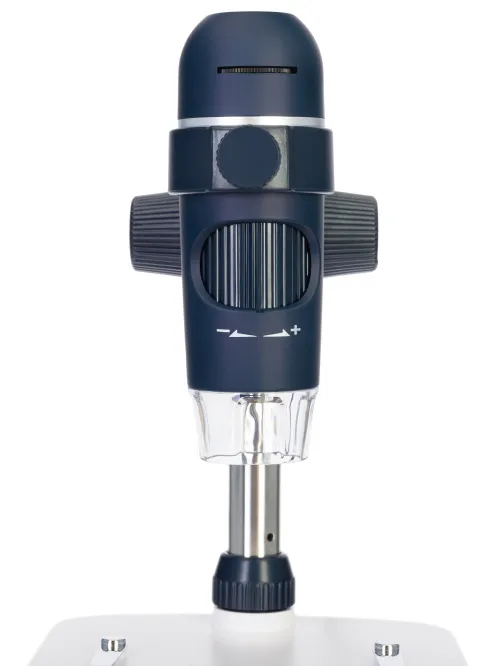

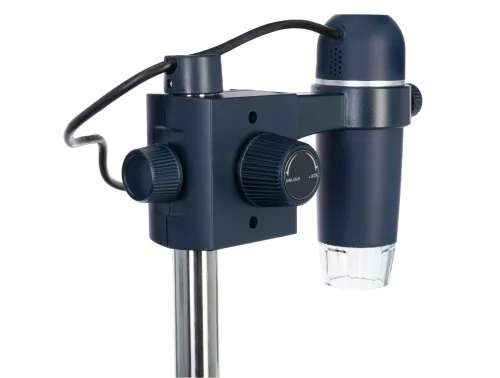

Levenhuk Discovery Artisan 32 is a digital microscope with a special stand. This device is perfect for high-precision work, e.g. numismatics purposes, jewelry work, clock repairing as well as home use. To view the image under the microscope on an external screen, you must connect the microscope to your PC via a USB cable and install the software (both included). The microscope enables taking and editing images and videos, measuring linear sizes, diameters, radii, and other dimensions.

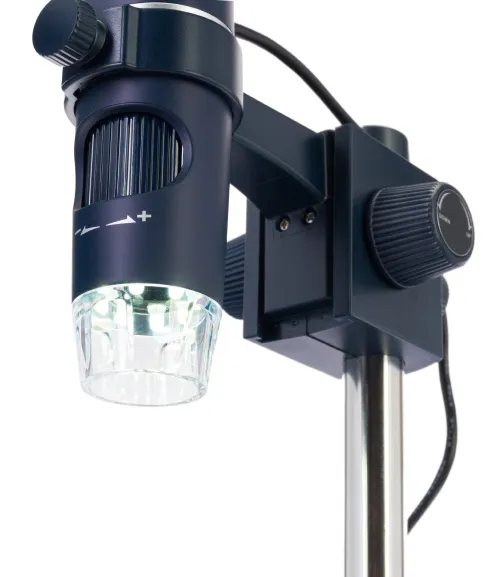

The microscope features a 5 Mpx camera and 5 white LED lights around it. It is recommended to use a backlight in low light, its brightness can be adjusted. You can view samples at 100-300x magnification, which is a very good range for a microscope for applied work. The focus can be manually adjusted from 0mm to 150mm. The maximum image resolution is 2592x1944 pixels.

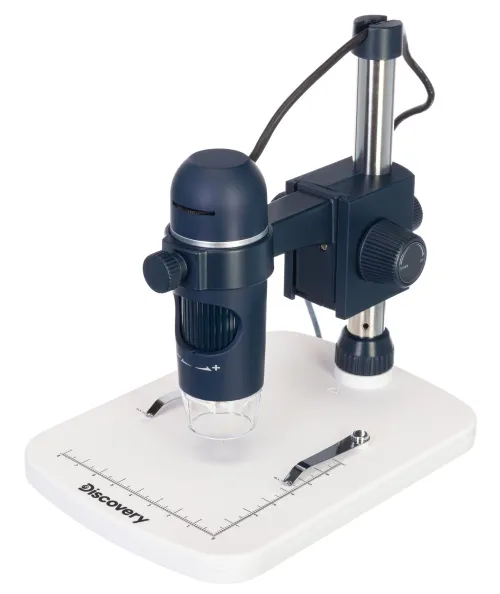

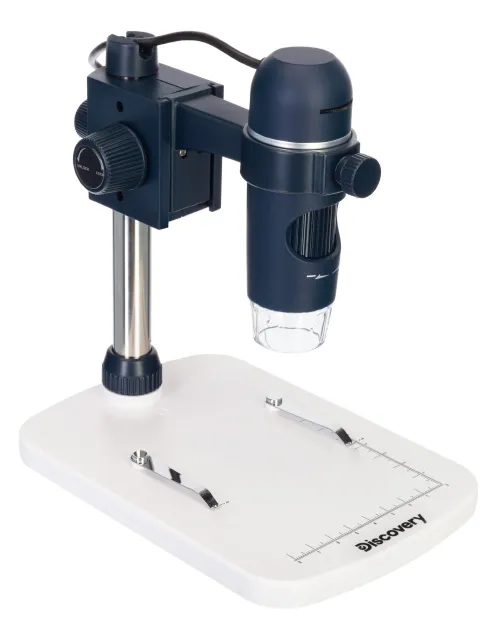

The microscope is mounted on a stand but can be used without it. The stage features two metal clips and measuring scales. The microscope’s body is rubber-armored. This covering makes it pleasant to the touch, provides for a comfortable grip, and protects the device against minor scratches. Levenhuk Discovery Artisan 32 is a wonderful digital microscope for professional work and hobbies, it is easy to use and has many useful features.

The microscope is compatible with Windows and Mac OS operating systems. The microscope is powered via USB.

Features:

  • 5 Mpx digital camera with the 2592x1944pix maximum frame resolution
  • Magnification: 10-300x; focus: 0-150 mm
  • Upper backlight (8 white LEDs) with adjustable brightness
  • Photo, video recording, and object measurement functions
  • Compatible with Windows and Mac OS
  • Professional stand and a stage with measuring scales and clips
  • Can be used without a stand; powered with a USB cable

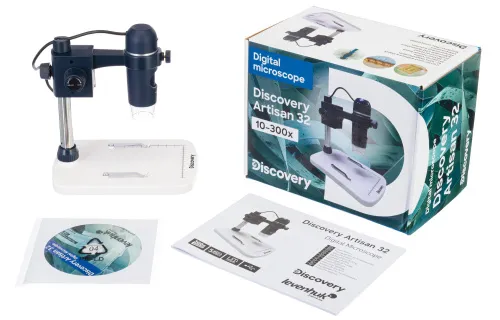

The kit includes:

  • Levenhuk Discovery Artisan 32 digital microscope with a USB cable
  • Professional stand
  • Stage with a measuring scale
  • Calibration scale
  • Software CD
  • User manual and warranty card

Recommendations on using the software:

In order for the program to operate correctly, please launch the installed application only when your microscope is connected to a PC and ready for observations.

The Levenhuk Discovery Artisan 32 digital microscope is not compatible with external digital cameras.

Specifications
Product ID 78160
Brand Discovery
Warranty 10 years
EAN 5905555012018
Package size (LxWxH) 22x17x13 cm
Shipping Weight 0.915 kg
Type digital
Head digital screen/PC monitor
Optics material optical glass
Magnification, x 10 — 300
Stage, mm 120x165
Stage moving range, mm fixed
Stage features with clips, with a measuring scale
Focus manual, 0–150mm
Body plastic
Illumination LED
Brightness adjustment
Power supply 5V via USB cable 2.0
User level beginners
Assembly and installation difficulty level extremely simple
Image 2592x1944, 2320x1744, 2048x1536, 1920x1080, 1280x1024
Application for applied research
Illumination location upper
Research method bright field
Megapixels 5
Video recording yes
Image format *.jpg
Video format *.avi
Software, drivers photo and video capture and processing software with measurement function, UVC
Output USB 2.0
System requirements Windows 7/8/10/11, Mac 10.12 and later, minimum P4 1.8GHz, 512MB RAM, 64MB video card, USB 2.0 port, CD-ROM
