Portable USB microscope for applied work. 3

Digital screen/PC monitor
The microscope head is a core element of the microscope that you look through to see a magnified sample
20 — 500
How much the size of a sample increases when you observe it through a microscope
For applied research
Application and use of the microscope
Availability

Product ID 78163
Brand Discovery
Warranty 10 years
EAN 5905555012049
Package size (LxWxH) 33x14x5 cm
Shipping Weight 0.665 kg
Description

discovery_logo_02

Discovery Channel informs, entertains and inspires its audiences around the globe about the world in all its wonder, diversity and amazement. Offering millions of people the chance to discover, and satisfy their curiosity, Discovery offers a compelling mix of stories across genres including science and technology, exploration, adventure, history and in depth behind-the-scenes glimpses at the people, places and organisations that shape and share the world we live in.

We proudly present the Discovery optics series that is produced by Levenhuk and endorsed by Discovery.

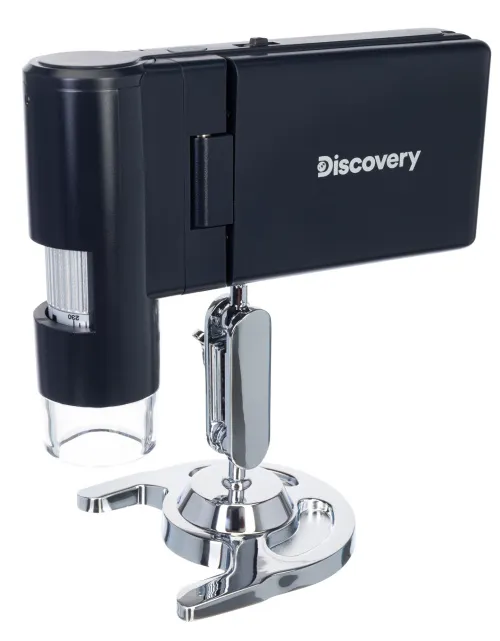

The Levenhuk Discovery Artisan 256 microscope is a portable digital microscope with an LCD screen and rechargeable battery that can be used for a variety of professional tasks. It can be utilized for quality control of metals, soldering, electronics, and clock repair. Moreover, it can be used for jewelry and art objects evaluation, viewing the structure of stones, coins, and other things. A handheld microscope is often used to check the quality of goods in stores and detect any possible mold growing on fruit and vegetables. The microscope is user-friendly. It can work with a computer (Windows and Mac OS are supported) or TV, it also allows you to take pictures, record videos, and measure distances, angles, radii, and areas.

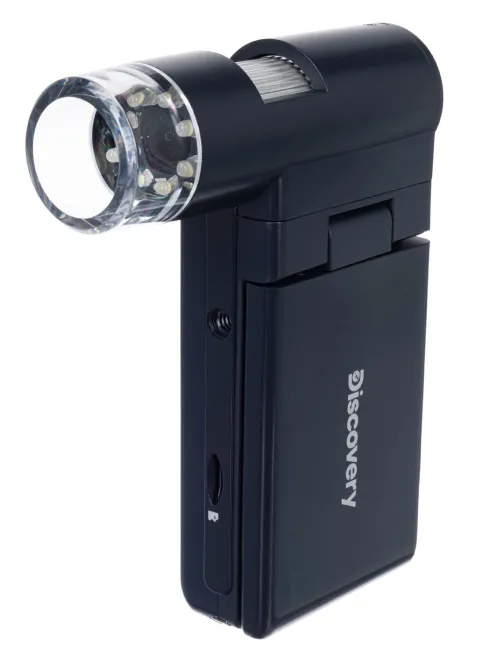

The image is formed by a built-in 5 camera with interpolation up to 12Mpx. The illumination around the objective includes 8 white LEDs with adjustable brightness. If you don’t need the illumination, you can turn it off. The microscope magnification range is from 20x to 500x, the focus can be adjusted in manual mode in the range from 0 to 30 mm.

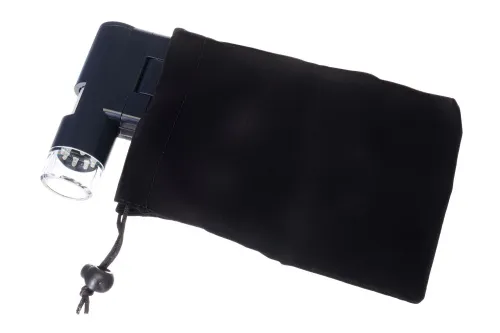

The microscope’s body is rubber-armored, which provides for a comfortable grip. The set includes a small stand. You can use it for long-term observation. For easy transportation of the microscope, a pouch is included.

Note: A memory card is used to record photos and videos (not included).

Features:

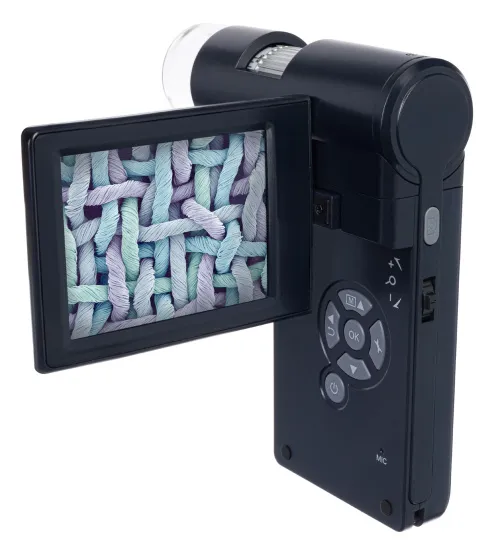

  • Portable digital microscope with 3'' LCD Screen
  • Can be connected to a Windows or Mac OS TV or computer
  • Photo, video recording and object measurement functions
  • Digital camera instead of an objective lens: 5Mpx (interpolated to 12Mpx).
  • Magnification: 20-500x; focus: 0-30mm
  • 8 white LEDs with adjustable brightness
  • Battery or AC powered, microSD support
  • Pouch for transportation and a stand included

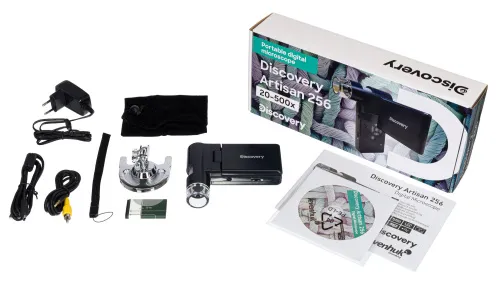

The kit includes:

  • Microscope
  • Stand
  • Adapter (100-240V, 50/60Hz)
  • USB cable
  • AV cable
  • Li-ion rechargeable battery
  • Strap
  • Pouch
  • Cleaning wipe
  • Software CD
  • User manual and warranty card

Recommendations on using the software:

  • In order for the program to operate correctly, please launch the installed application only when your microscope is connected to a PC and ready for observations.
  • Once connected to the PC, it does not support the magnification change function

Note: Remember that mains voltage in the U.S. and Canada is 110V and 220-240V in most European countries. Please refer to the specifications table for the correct voltage and never attempt to plug a 110 V device into a 220 V outlet and vice versa without using a converter.

The Levenhuk Discovery Artisan 256 digital microscope is not compatible with external digital cameras.

Specifications
Product ID 78163
Brand Discovery
Warranty 10 years
EAN 5905555012049
Package size (LxWxH) 33x14x5 cm
Shipping Weight 0.665 kg
Type digital, portable
Head digital screen/PC monitor
Optics material optical glass
Nozzle 3" rotatable color LCD screen
Magnification, x 20 — 500
Focus manual, 0–30mm
Body plastic
Illumination LED
Brightness adjustment

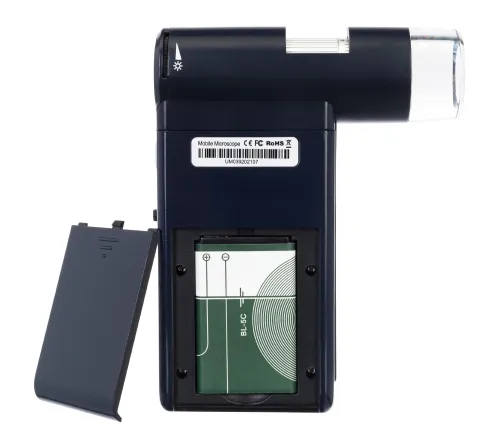

Power supply 100–240V, 50/60Hz, 5V, 1A output, Li-ion battery 3.7V/1050mAh
Power supply: batteries/built-in battery yes
Additional battery-operated work: 4 hours; charging time: 5 hours

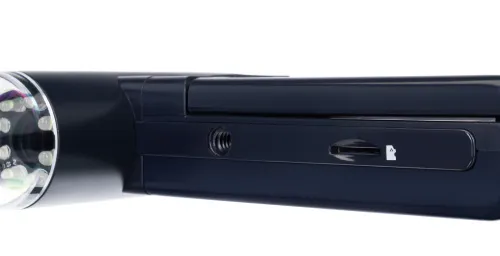

Ability to connect additional equipment supports microSD memory cards up to 32GB (not included)
User level beginners, experienced users
Assembly and installation difficulty level easy
Application for applied research
Illumination location upper
Research method bright field
Pouch/case/bag in set pouch
Maximum resolution 12Mpx, 9Mpx, 5Mpx, 3Mpx, 1.3Mpx, VGA
Megapixels 5 (with interpolation up to 12)
Video recording yes
Image format *.jpg
Video format *.avi
Frame rate 30 frames per second
Software, drivers photo and video capture and processing software with measurement function

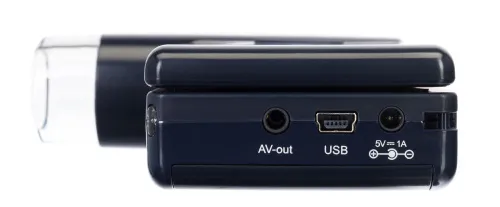

Output USB 2.0
System requirements OS Windows 7/8/10, Mac 10.6 ~ 10.15; 1.8GHz Intel P4 and above, 512MB RAM, 32MB video card, USB 2.0, CD-ROM
