Focal length: 8–24mm. Field of view: 40–60°

6 elements in 4 groups
Optical design is a set of optical elements that is assembled in a certain way
1.25
The barrel diameter of the accessory must match the barrel diameter of the device; otherwise, an adapter will be required
Multi-coated
The optics coating improves the image quality
Availability

Product ID 71822
Brand Meade Instruments Corp.
Warranty 2 years
EAN 0643824209879
Package size (LxWxH) 15x10x10 cm
Shipping Weight 0.32 kg
Description

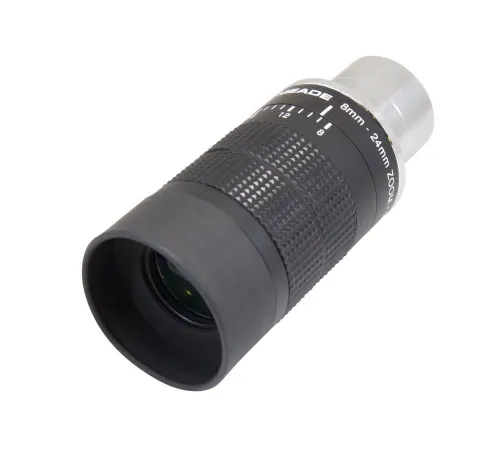

Meade Series 4000 8–24mm Zoom Eyepiece (1.25") is an excellent addition to telescopes of all types, brands, and price levels from entry level to research grade. A terrific value, especially useful for terrestrial observation to zoom in on potentially moving wildlife. The eyepiece offers the ability to change magnifications "on the fly" yet demanding no compromise in performance. The eyepiece’s internal optics move on smooth, precisely machined surfaces which maintain optical collimation at all continuously variable zoom settings. The 6-element 4-group design has 15–18mm of eye relief, and provides an apparent field of view of 40° at 24mm, increasing to an apparent field of view of 60° at the highest power 8mm setting. All lenses are multi-coated for maximum light transmission and image contrast, while minimizing internal reflections.

Features a precision made 1.25" barrel, and fold down eyeguard for comfortable viewing and blocking stray light. The Series 4000™ 8–24mm Zoom Eyepiece offers a complete focal length range from 8mm to 24mm (in a single eyepiece) without sacrificing resolution compared to fixed focal length oculars.

Features:

  • Multi-coated optics
  • Foldable rubber eyecup provides comfortable viewing and blocks stray light
Specifications
Product ID 71822
Brand Meade Instruments Corp.
Warranty 2 years
EAN 0643824209879
Package size (LxWxH) 15x10x10 cm
Shipping Weight 0.32 kg
Type with zoom
Optical scheme 6 elements in 4 groups
Barrel diameter, in 1.25
Lens coating multi-coated
Focal length, mm 8 — 24
Field of view, ° 40 — 60
Eye relief, mm 15 — 18
Suitable for observations while wearing glasses
Filter thread
Eyecup rubber, foldable
