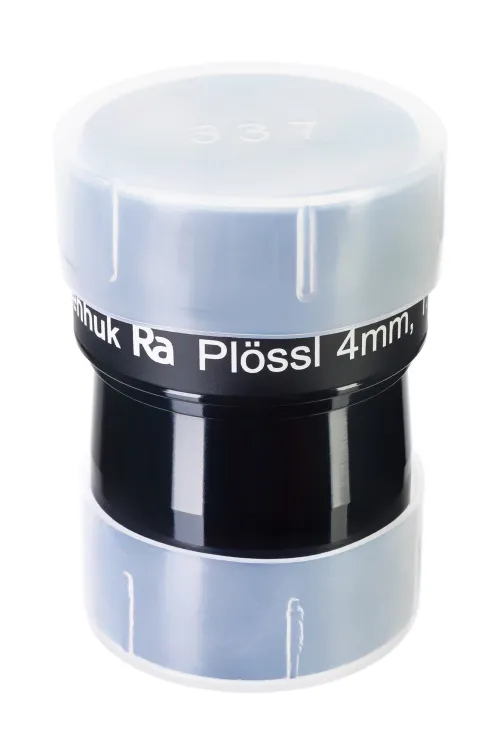

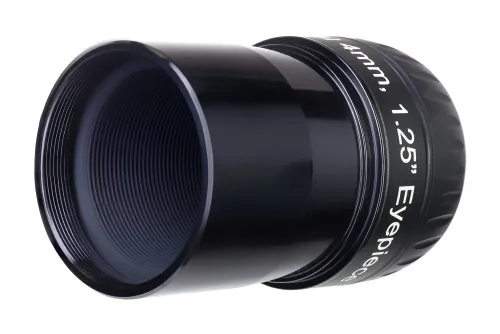

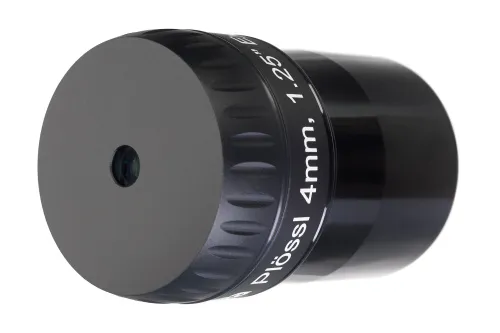

Levenhuk Ra Plössl 4mm, 1.25" Eyepiece

Levenhuk Ra Plössl 4mm, 1.25" Eyepiece

image Levenhuk Ra Plössl 4mm, 1.25" Eyepiece, 1
image Levenhuk Ra Plössl 4mm, 1.25" Eyepiece, 2
image Levenhuk Ra Plössl 4mm, 1.25" Eyepiece, 3
image Levenhuk Ra Plössl 4mm, 1.25" Eyepiece, 4
see all
image Levenhuk Ra Plössl 4mm, 1.25" Eyepiece, 5
image Levenhuk Ra Plössl 4mm, 1.25" Eyepiece, 6
The price is valid only for the online store and may differ from the prices in retail stores.

Classic symmetrical eyepiece. Focal length: 4mm. Field of view: 55°

4 elements in 2 groups, Plössl
Optical design is a set of optical elements that is assembled in a certain way
1.25
The barrel diameter of the accessory must match the barrel diameter of the device; otherwise, an adapter will be required
Fully multi-coated
The optics coating improves the image quality
Availability
Product ID 45110
Brand Levenhuk, Inc., USA
Warranty 2 years
EAN 5905555006338
Package size (LxWxH) 6x5x5 cm
Shipping Weight 0.09 kg
description
specifications
downloads
Description

The Levenhuk Ra Plössl 4mm, 1.25" eyepiece is a universal accessory for telescopes (best suited for planetary telescopes). This eyepiece can be used with a telescope of any optical design and brand. The eyepiece barrel diameter is 1.25".

Due to its multi-element fully multi-coated glass optics, it renders a sharp and detailed picture over the entire field of view, which is 55°. This is a very good indicator for eyepieces of this class. The optics reduce most of optical aberrations; the center of the field of view features the best picture resolution.

The eyepiece's body is made of aluminum.

Features:

  • Entry level eyepiece for planetary observations
  • Good field of view, minimum aberration
  • Effective with both high-aperture optics and medium aperture
  • Fully multi-coated glass lenses
  • 1.25'' barrel diameter

The kit includes:

  • Eyepiece
  • Protective caps – 2 pcs
  • Cleaning wipe
Specifications
Product ID 45110
Brand Levenhuk, Inc., USA
Warranty 2 years
EAN 5905555006338
Package size (LxWxH) 6x5x5 cm
Shipping Weight 0.09 kg
Type standard
Optical scheme 4 elements in 2 groups, Plössl
Barrel diameter, in 1.25
Optics material optical glass
Lens coating fully multi-coated
Focal length, mm 4
Field of view, ° 55
Eye relief, mm 2.4
Eyepiece diameter, mm 4.8
Body aluminum
Protective caps included ✓
